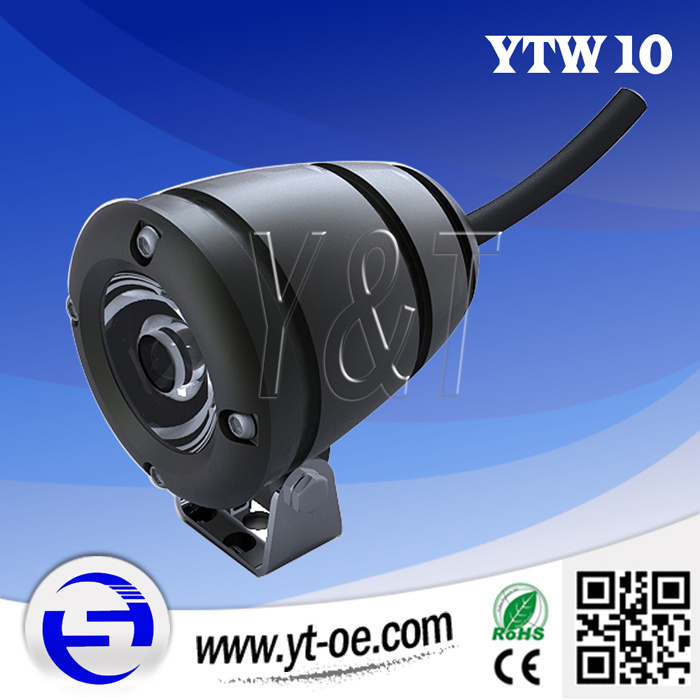

10w 12/24v led headlamp for Electric Scooter/Electric Scooter Bike
1. Description:
1) Latest Product & Original Design: The YTW10 is designed by Y&T as a Most Efficient Super-Mini LED Off-Road Light.
2) Wide Input Voltage: DC10~30V, which is suitable for different types of vehicles.
3) Cree High Performance LED: Ensure the long lifespan and superior illumination & stability.
4) Materials: Pure Aluminum Housing + Virtually Unbreakable PMMA Lens + Stainless Steel Mounting Bracket with IP68 Rate, while the Aluminum face plate acts as radiant heat sink and can melts snow and ice.
5) Environmental-Friendly: Energy saving, no UV and IR radiation, Shock-Proof and Anti-Corrosion.
2. Packing:
Color box for each single set inside and carton packing at outside.
3. Certificates:
SGS, CE, RoHS, EMC, FCC, UL, cUL, etc.
4. Applications:
YTW10 is widely applied in ATVs, UTVs, Off-road Vehicles, Excavator, Trucks, Mining, Tunneling & Caving Equipments, Road Construction, Outdoor Emergency Lighting, Ambulance & Fire Engine, Trains and Tanks etc.
5. Key Words:
Motorcycle led light kit, motorcycle head light/lamp, motorcycle work light/lamp, motorcycle spot light/lamp, motorcycle auxiliary light/lamp, motorcycle driving light/lamp, motorcycle front light/lamp, motor bike light/lamp led 12v, motor working light/lamp, superbike led light/lamp, streetfighter headlight/headlamp, led light for Harley Davidson, Led Head Light, Led Auto Light, Led Car Light, head light/lamp for BMW, Automotive Led light/lamp, work light/lamp for Honda, led light/lamp for Yamaha, spotlight/lamp for Suzuki, 10w Cree led work light/lamp.
Technical parameters |
Model NO. |
YTW10 |
Input voltage |
DC10~30V |
Constant Current |
900mA@12V,400mA@24V |
Power consumption |
10W |
Luminous Flux |
950~1080lm |
LED Source |
Cree High Brightness LED Chip |
Certification |
CE, RoHS & FCC |
Optional Color |
Black |
Canning Materials |
Aluminum Alloy |
Lens |
Virtually Unbreakable PMMA Lens, Light Transmittance>93%, Heat Resistance>90°C. |
Support & Connector |
Stainless Steel mounting bracket with Deutsch socket connector |
CCT |
6,000~7,000K |
Optional Light Type |
Flood Beam(45deg) / Spot Beam(25deg) |
IP rate |
IP68 |
Dimension ( mm ) |
51.2(D)* 61.0(W)* 66.7(H) |
Working temperature |
-45~105centi-degree |
Working humidity |
10%~98% |
Light source life span |
>50,000Hrs |
Electrostatic Discharge Threshold (HBM) |
CLASS 2 |
Warranty |
1 Year in Normal Use |
