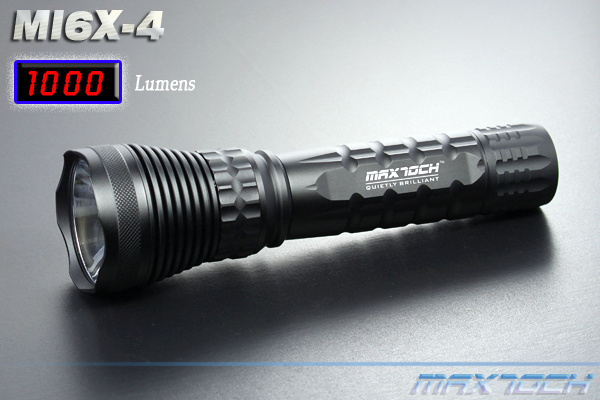

*LED Type: CREE XM-L T6
*Finish: HA III Military Grade
*Reflector: Smooth Reflector
Features:
*LED Type: 5PCS CREE XM-L T6
*Max output: 1000LM
*Beam: Smooth Reflector for focused beam
*Lens: Anti-shattering ultra clear lens, anti-scratching and anti-slip
*Finish: HA III Military Grade
*Waterproof: IPX8
*Switch: Tail cap switch
*Modes: Stepless Light Modulation
*Battery: 6PCS AA batteries
*Circuit efficiency: 85%
*Size: L 220 mm (8.66'') *D 62 mm (2.44'')
Operation:
*Press tail switch for turning light on/off.
*with the light turned on, rotating to the right with the automatic rotary structure on the head, and keep, stepless increase to the brightest. During this time, if don't keep, the operation ring would be automatically rebound to the initial position, and lock the current brightness. If rotating to the left, and keep, stepless increase to the lowest. During this time, if don't keep, the operation ring would be automatically rebound to the initial position, and lock the current brightness.
*Remove the tail cap, insert the batteries with the positive ends toward the head of the light, replace the tail cap.
Output & Runtime:
*Max output of 1000 lumens for approximately 2 Hours
*Min output of 30 lumens for approximately 60 Hours
Note: Stated brightness and runtime figures are based on tests using 6PCS AA batteries under laboratory conditions. Variances in these figures will occur depending on batteries used and individual usage habits.
|
Parameters: |
|
Max Output (LM) |
1000 |
Runtime (H) |
2 |
|
Distance (m) |
400 |
Rated Output (W) |
10 |
|
Rated Voltage (V) |
3.3 |
Rated current (mA) |
3000 |
|
Length (mm) |
220 |
Head Diameter (mm) |
62 |
|
Weight (g) |
455(excluding batteries) |
Battery |
6*AA |
