Feature:
OSRAM HRI 280W lamp, with the high precision optical lens, the spot is purer, more Uniform and brighter
3-Phase motor, Fast moving and noiseless
Switching power supply and wild voltage, It make sure the light more safe and stable. It's global using
Intelligent LED display, Chinese and English optional. Four touch buttons. The display can rotating 180°, It is easy to check when the light hang upside down
Thermal Protection
Specification:

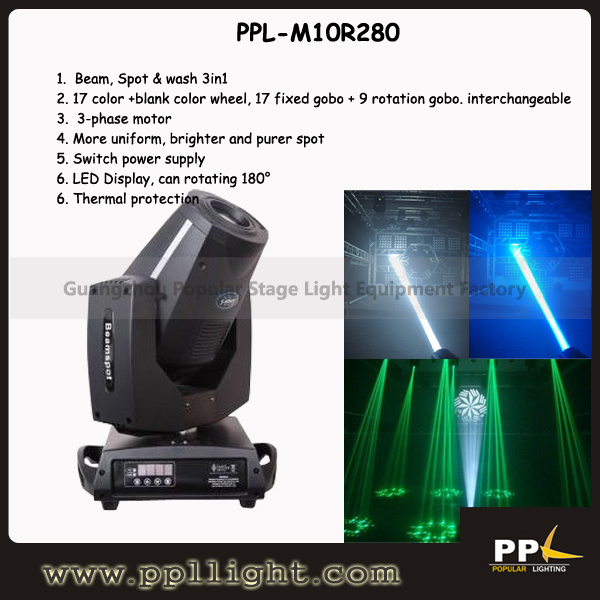

Item Name: 280W spot beam moving head light
Item No.: PPL-M10R280
Voltage: AC110~240V, 50/60Hz
Power Consumption: 400W
Lamp: OSRAM HRI 280W
Color temperature: 8000K
Average Lifespan: 2000H
Color: 17color+ blank color wheel
Gobo: 17 fixed gobo+9 Rotation gobo
Prism: Rotation 3-facet prism
Lens: High precision optical lens
Wash effect: adjustable wash effects angle
Focus: Linear adjustment
Dimmer: 0-100% linear adjustment
Pan/Tilt: X axis 540°, Y axis 250°Automatically accurate positioning
Beam angle: parallel beam angle 3.8°-45°
Strobe: Double lens strobe (0.5-9times/second)
Control mode: Standard DMX512, Auto, Master/Slave
DMX Channel: 16/17/25CH
Can using controller to Reset, Lamp power-on/off
DMX Channel:
| CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| 16CH | Color | Strobe | Dimmer | Static Gobo | Prism | Gobo/Prism Roation | Gobo Rotation | Zoom | Focus | Pan | Pan Fine | Tiit | Tilt Fine | Pan/Tilt Speed | built-in Effect | Reset or turn on/off lamp |
|
| 17CH | Pan | Pan Fine | Tilt | Tilt Fine | Pan/Tilt Speed | Empty | Dimmer | Strobe | Color | Gobo Rotation | gobo/prism rotation | static gobo | Iris | Prism | Focus | zoom | Reset or turn on/off lamp |
| 25CH | Pan | Pan Fine | Tilt | Tilt Fine | Pan/Tilt Speed | Empty | Dimmer | Strobe | Color | Color model | Gobo Rotation | Gobo Model | gobo/prism rotation | index pan fine | Gobo shake | static gobo | Static gobo shake |
| Iris | built-in Effect | Prism | focus | focus fine | zoom | Reset or turn on/off lamp |
|
|
|
|
|
|
|
|
|
|
