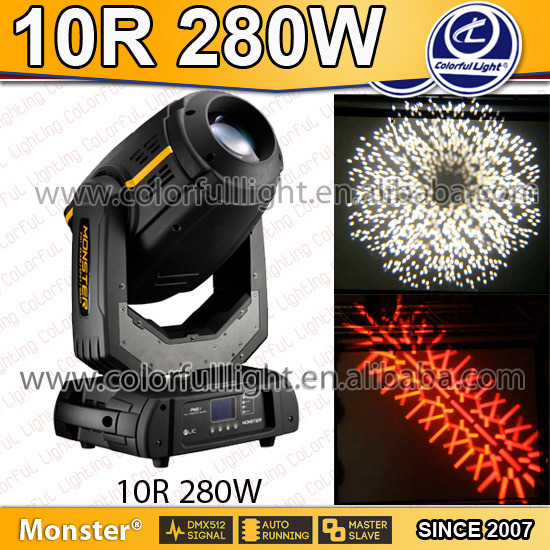

280w 10R New Moving Head Light with beam spot wash
Introducing our Monster, It's very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease. It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. Tight or at full 20 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6 way linear or 8 way circular, prisms to create wide reaching effects across any set.
Drop in the frost filter and use any of the 13 rich colours to create a smooth even wash. The Monster has an output far greater in size, quality and power than seems possible from it's small, lightweight body - due to the efficient short arc 280 W discharge source and the Colorful Light optical configuration. This new technology fixture even travels efficiently in a case of 4 and will cover all your needs - Beam, Spot, Wash, FX - it's versatile like a MONSTER.
TECHNICAL PARAMETER
280w 10R New Moving Head Light with beam spot wash
Power Supply Input Voltage: AC100-240V 50-60Hz
Power Consumption: 470Watts, Neutrik PowerCon
Light source YODN 280w 10R For China Moving Heads 2, 000 h life time
Optical system Zoom range: 2.5° -10° (beam application)
5° - 20° ( spot application)
Zoom&Focus Motorized zoom and focus
DMX control Standard USITT DMX-512, Locking 3-pin & 5-pin XLR
Range:
3 phase motor for fast movement
540° In Pan and 270° In Tilt
Weights&Measures:
Height: 575 mm (22.6"), Width: 364 mm (14.3")
Depth: 260 mm (10.2"), Weight: 15 kg (33 lbs)
DMX channels 24 / 16 / 30CHs
Color wheel 13 dichroic filters + white
Gobo wheels Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos +
Open Static Gobo wheel: 14 gobos + open
Prisms:
Prism 1: 8-facet circular prism rotating in both directions at different speeds
Prism 2: 6-facet linear prism rotating in both directions at different speeds
Frost effect Separate, variable
Dimmer/Shutter Full range dimming and variable strobe effect
What I can do for you?
1. I will answer all of your questions about the light and about the industry developing trend. If you have no idea about which lights you need to apply in your stage or bar, I will be here to offer our best suggestions for you.
2. An email full of information will be sent to you shortly when you have inquires on our products. I can fully understand what you need and what you are gonna tell us. Easy communication will save you time and money.
3. Full comparison will be offered if you get too many quotes and can not make a right choice. After comparison, The final desicion will be up to you.
Colorful Light (HK) Limited has developed itself in a fastest way.
We, Colorful Light (HK) Limited, specializes in the field of stage/Concert lighting service, nightclub equipment, theatrical lightings, drama lighting, wedding lighting.
Colorful Light (HK) Limited is incorporated, with strong commitment for continuous product and process improvement, through R & D with technology verification in association with local and foreign companies. Our product and systems have a wide range of applications and we provide turnkey solutions to meet the end user requirements. We also provide one stop OEM solution too.
We offer lighting systems for domestic, commercial, industrial and municipal applications on a consulting and turn key basis. The systems and solutions include illuminations and entertainment for concert, nightclub, Drama studios, hoetels, theatres and commnunity halls and village halls.
Lately Colorful Light is developing a series of new products like SPIDER MOVING HEAD LIGHT, 10R 280W 3IN1 MOVING HEAD LIGHT, 6*6 SPOT PANEL, 7LEDS MINI WASH BEAM ZOOM MOVING HEAD LIGHT and so on. Please pay more attention on us. We will bring you more surprises.
| Power Supply | Input Voltage: AC100-240V 50-60Hz Power Consumption: 470Watts, Neutrik PowerCon |
| Light source | YODN 280w 10R For China Moving Heads 2,000 h life time |
| Optical system | Zoom range: 2.5°-10° (beam application) 5° – 20° ( spot application) |
| Zoom&Focus | Motorized zoom and focus |
| DMX control | Standard USITT DMX-512, Locking 3-pin & 5-pin XLR |
| Moving head range | 3 phase motor for fast movement 540° in Pan and 270° in Tilt |
| Weights&Measures | Height: 575 mm (22.6") Width: 364 mm (14.3") Depth: 260 mm (10.2"), Weight: 15 kg (33 lbs) |
| DMX channels | 24 / 16 / 30CHs |
| Color wheel | 13 dichroic filters + white |
| Gobo wheels | Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open Static Gobo wheel: 14 gobos + open |
| Prisms | Prism 1: 8-facet circular prism rotating in both directions at different speeds Prism 2: 6-facet linear prism rotating in both directions at different speeds |
| Frost effect | Separate, variable |
| Separate, variable | Full range dimming and variable strobe effect |
