Feature:

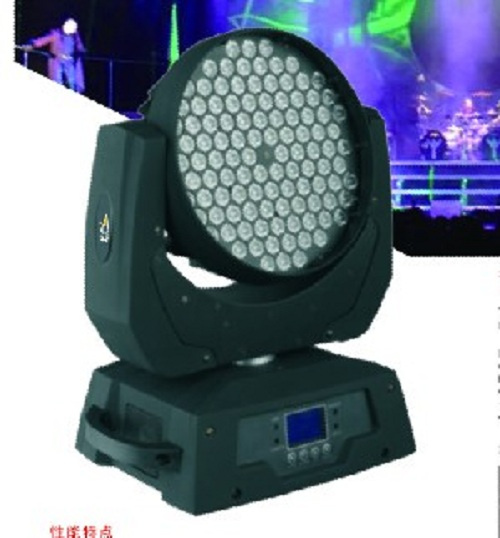

1. 108pcs 3W RGBW/A LEDs R 27, G27, B27, W/A 27
2. Perfect wash effect, easy to control
3. Low noise, Stable quality
4. Factory supply, compective price
Technical Parameter :
Voltage: AC 90~245V, 50~60Hz
Lamp: 108*3W (27R+27G+27B+27W/27A) / 96*5W ( 15R+27R+27B+27W/A)
Rated Power: 330W/480W
Control Signal: DMX 512/Master-slave/ Auto/Custom/Sound Control
Channels: 14CH(RGBW/A)
Installed with 108/96 LED Lamps, the power of the products reaches 330W./480W
The average life time of each LED reaches 100, 000 hours.
Low power consumption.
Super luminance, comparable to the efficiency of halogen discharge lamps, rich and splendid color.
DMX-512 control signal, 14 standard channels.
The housing is made of streamline fashionable PC engineering
Plastic of after once casting.
Wide range super tiny smooth scanning, horizontal scanning
Angle reaches 540° , and vertical 270° , the scanning precision
Reaches 8bit and16bit, with smooth and precise positioning,
Additionally, the scanning speed is adjustable.
Infinite RGBW color mixed system.
The light beam angle can be 15° , 30° , 45° , 75° , optional.
High speed electronic strobe reaches 1-18 times/second
Size: 380 x 350 x 450 mm
N/G Weight: 11.0/12.0kg
DMX Channel:
| CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| FUNCTION | X | Y | X Fine | Y FIne | XY Speed from Max to Min | strobe | Dimmer | Red | Green | Blue | White | RGB color change | Function control | Channel of function control |
|
|
|
|
|
|
|
|
|
