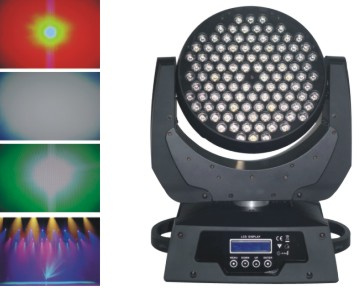

108*3w Led Moving Head Wash
Specifications
AC: 100-240V 50-60HZ
LCD display
12 Channels
Source: Red: 24PCS, Green: 28PCS, Blue: 28PCS, w: 28PCS
Bean angle can choose 25° Or 45° .
Master/slave mode
LED adopting static constant-current drive mode, with high precision.
RGB dimming separately, 256 brightness, no flicker
LED board has the function of temperature detection.
Fan and LED with intelligent control function, makes the LED beads long life time.
Various strobe effect and color rainbow function.
Switch power supply with APFC power factor and NC correction. PF>0.99, 90% efficiency, green environmental-protective.
Maximum Condition Temperature: 40° C
Surface Maximum Temperature: 60° C
Effective Casting Distance: 20m
Fuse specification: Bedplate fuse: 2A/250V(5*20); Machine fuse: 15A/250
Packing size: 46*35*47cm
N. W: 10kg G. W: 11.65KG
1. Source: 108 single 1 W / 3 W leds bead (red: 27 a blue: 36 a green: 36 a white: 9 star)
2. Power: 120 W / 350 W
Channel: 12 DMX channel
Voltage: AC110/220 V frequency 50 Hz / 60 Hz
Source: 108 single 1 W / 3 W leds bead (red: 27 a blue: 36 a green: 36 a white: 9 star)
Power: 120 W / 350 W
Functions:
1) this lamp used 108 single, each star 1 W / 3 W high power LED
2) each star LED the average life expectancy for 100000 hours
3) low power consumption
4) super brightness, rival general discharge bubble, without limit rich bright beautiful colour
5) DMX512 control signal, 12 standard channels
6) the new streamlined shell PC engineering plastic shell, a molding
7) infinite RGB color mixed color system
8) beam Angle 15 degrees-25 degrees can be chosen
9) high-speed electronic adjust stroboscopic can reach 1-18 times/SEC
10) ZongDiao light control channel and the control of 3 main color channel changes of light and shade
11) the control panel digital display font can rotate 180 degrees, suitable for head light place or hang the trial
12) with automatic operation function, music control functions, with eight procedures can be DMX control activated
13) comply with CE standard and UL standard
Application places: Suitable for shaking it slowly, disco, large building, television, opera, theater, concerts and other places
Channel explains:
CH1: X axis
CH2: The Y axis
CH3: Stroboscopic
CH4: Dedication
CH5: RGB color mixture promise
CH6: Red
CH7: Green
CH8: Blue
CH9: Automatic color change
CH10: X axis budge
CH11: The Y axis budge
CH12: X/the Y axis speed
