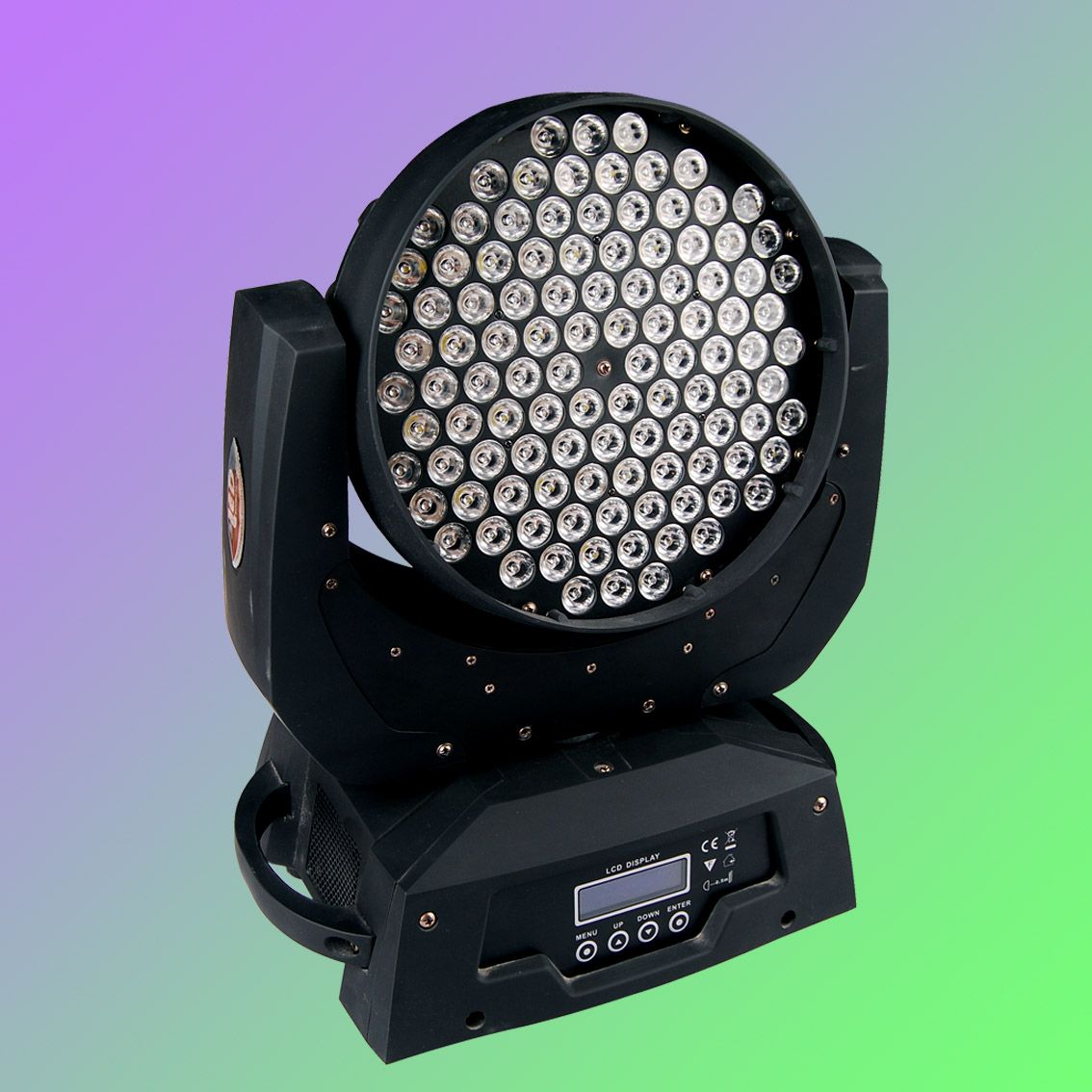

108*3W RGBW Moving Head Light, LED Stage Wash Light (PL-133)
Voltage / frequency: 90V-240V/50-60Hz
Bulbs: 108* LED 1W/3W 36 red / 36 Green / 36 Blue (Or 27Red27Green27Blue27White/Amber) 90*5W(30R30G30B)/(22R23G23B23W/A)
Power: 108W/324W/450W
Control signal: DMX 512, in sets at the automatic procedure
Channel: 12CH (RGB)/13CH(RGBW/RGBA), DMX512 channel control
Color: 16.7 million kinds of colors changes
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the color tone
Strobe: 1-25/second high speed strobe, but single color mixes the color strobe
Low power consumption
Super luminance, with the efficiency of ordinary power bulbs, rich and splendid color
DMX-512 control signal, 12 standard channels
The housing is made of streamline fashionable PC engineering plastic after once casting
Wide range super tiny smooth scanning, horizontal scanning angle reaches 450° And vertical 270° , the scanning precision reaches 8bit and 16bit, with smooth and precise positioning, additionally, the scanning speed is adjustable
Infinite RGB color mixed system
The light beam angle would choose from 6° - 60°
High speed electronic strobe reaches 1-18 times/second
Total light adjustment control channel can control 3 main color channels simultaneously
The digital display on the control panel can be reversed for 180° , applicable for horizontal or vertical use of moving head
With the functions of synchrony movement and music control
Meet CE standard, UL standard and GB7000.15-2000 standard.
DMX 12CH:
CH1: X adjusting
CH2: Y adjusting
CH 3: Strobe/ Reset/ Shutter
CH 4: Dimmer
CH 5: Color
CH 6: RED color change
CH 7: GREEN color change
CH 8: BLUE color change
CH9: RGB Rainbow Effect
CH10: X Fine
CH11: Y Fine
CH12: X/Y speed, Vector
Knowhow International Lighting Limited located in Guangzhou, was founded in March, 2005. We are a high-tech enterprise engaged in the development, production and marketing of LED moving head lights and LED PAR lights and LED wall washer systems. Our products have been widely applied in Disco, Pub, Opera House, Stage Performance, Theme Park, etc.
With 5 years' reform and development, our products have won high appreciation internationally. We have 60W/ 90W/ 200W/ 300W moving head beam light and LED moving head lights. LED PAR lights has 3W/1W 36PCS, 3W/1W 54PCS, 177PCS F10, 186PCS F10 RGBW, and LED wall washer 3rows 8sections, and 4rows 16sections. Based on good quality and competitive price, our products are very popular in Europe, America, South America, Middle East and other areas of the world.
Our company insists on brand and quality strategy. All our products are researched and developed by ourselves and has obtained the certificate of CE and RoHS.
Knowhow's all products have one year's guarantee. "QUALITY PRIORITY, CUSTOMER FIRST" is our permanent faith. We hope and believe that our company and customers will reach win-win situation with our continuous efforts.
