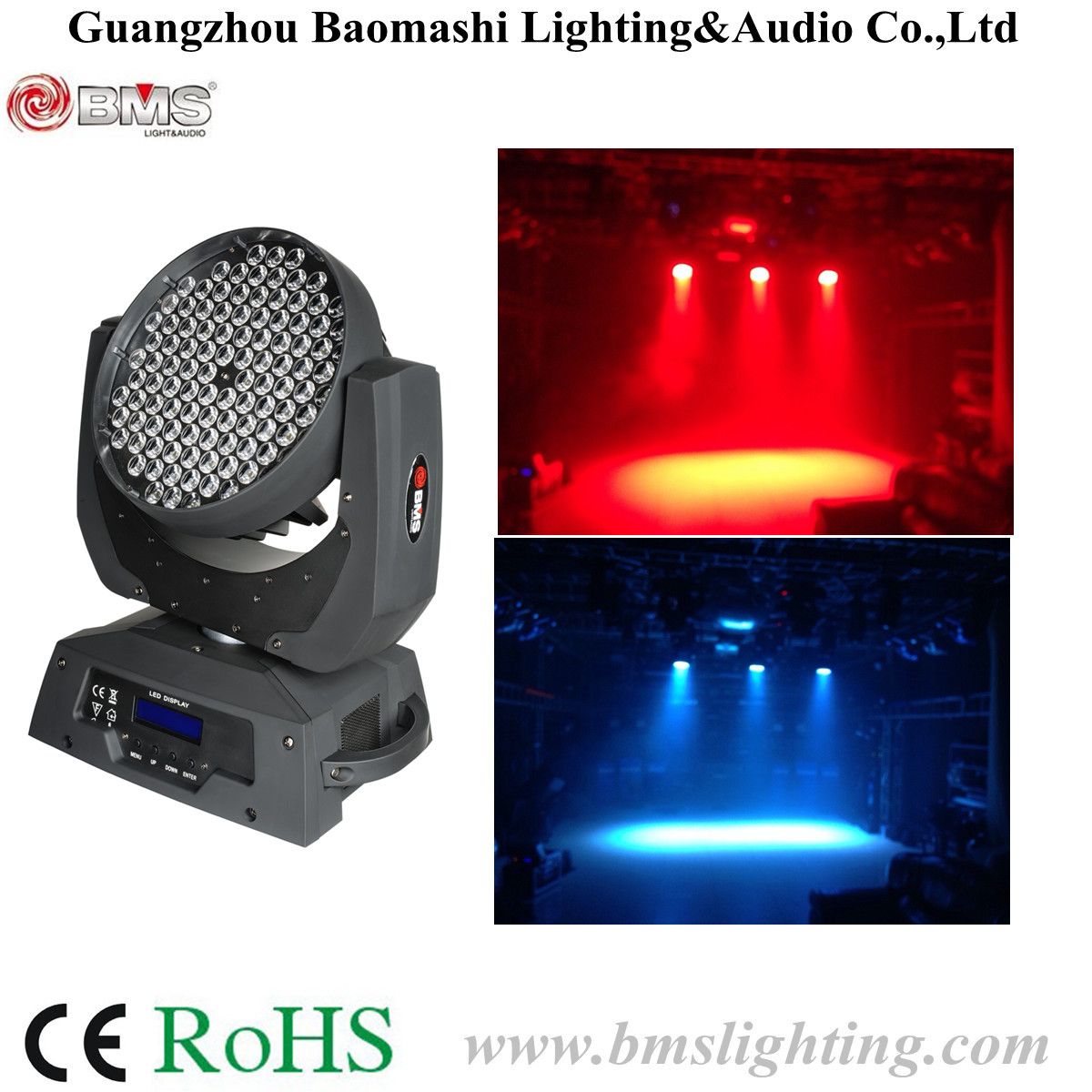

Name: 108pcs 3W RGBW LED Moving Head Light
Contains 108 3W high powers LED; (R: 24, G: 28, B: 28, W: 28)
An average of 100000 hours long, LED life, low energy consumption, energy saving and environmental protection LED; 12 international standard DMX channel;
4 control modes: DMX512 signal control / Master slave / sound / automatic operation
Horizontal scanning: 540 degrees or 630 degrees (16 bit precision scanning);
Vertical scanning: 265 degrees (16 bit precision scanning);
High-speed electronic regulating strobe of up to 1-25 / s or random strobe;
Total dimmer channel can simultaneously control 4 main shade of color change and closed light;
Uniform, RGBA color mixing system and rainbow effect can pass through the white LED color temperature adjustment to be more rich and colorful color; Beautiful, blue and white liquid crystal display;
Who has 8 built-in programs available for selection, can be run automatically or by an external console;
Angle: 39.5 degrees spot also can provide other different angle lens;
Power supply: AC100~240V, 50~60Hz
Power consumption: 420W
Lamp: 108 3W EDISON LED
Control mode: DMX-512 control mode, auto mode, voice control mode, master-slave mode
DMX channel: 12CH
X axis: 540 degrees / 630 degrees (16 bit)
Y axis: 265 degrees (16 bit)
Carton size: 390 X 305 X 440 mm
N. W: 8.6kg
G. W: 9.8 kg
|
Channel |
DMX-value |
Feature |
|
Channel 1 |
0~255 |
X-axis direction of rotation |
|
Channel 2 |
0~255 |
Y-axis direction of rotation |
Channel 3
|
0~255 |
Adjust the brightness of the light as a whole(from small to big) |
|
Channel 4 |
0~9 |
static |
|
10-127 |
adjust the strobe speed(from slow to fast) |
|
128-255 |
light levels black-fade adjustment |
|
Channel 5 |
0~255 |
red color increasing brightness from small to big |
|
Channel 6 |
0~255 |
green color increasing brightness from small to big |
|
Channel 7 |
0~255 |
blue color increasing brightness from small to big |
|
Channel 8 |
0~255 |
white color increasing brightness from small to big |
|
Channel 9 |
0~255 |
X & Y axis running speed adjustment(from fast to slow) |
|
Channel 10 |
0~99 |
static |
|
100~255 |
color selections(15 colors) |
|
Channel 11 |
0~127 |
static |
|
128~255 |
automatic mode |
|
Channel 12 |
0~254 |
static |
|
255 |
constantly reset
|
Guangzhou Baomashi Lighting Audio Co., Ltd., established in 2000, is a lighting professional enterprise which is engaged in manufacturing and selling stage lighting. Like moving head light, LED wall washer light, LED moving head, LED Flood lights, LED PAR lights, LED effect lights, lasers and outdoor lights etc. Our products with stable quality, variety complete and obtains a good reputation all over the world.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sales in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
