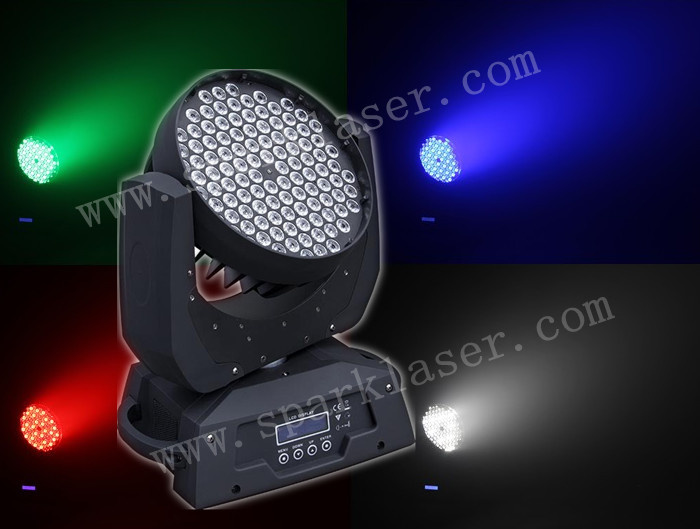

108*3W LED Moving Head Stage Light
Voltage: AC100-240V 50/60 Hz
Power: 360 W
Lamp bead: 3W× 108 (R27, B36, G36, W9, )
Control Mode: Sound Active/Auto-play/ DMX 512/Master-slave
DMX Channel: 13CH
Beam Angle: 15° /25° /30° /45°
Effect: RGBW mixed color can be up to 167000 kinds of above, stroboscopic and dimmer function
Display: 2× 16 LCD and four button switches select menu function
X axis: 540 degrees 8/16 bit,
Y axis: 270 degrees 8/16 bit
Packing size: 390× 295× 440 mm
Net weight: 9.6kg
Gross weight: 11kg
| NO | Main menu display | Sub-menu display | Functions |
| 1 | ADDR | 001-512 | 512 DMX address setting |
|
|
|
|
| 2 | CHnd | 10 | 10 DMX channels control |
|
| 17 | 17 DMX channels control |
|
|
|
|
| 3 | Mode | DMX | Controller mode |
|
| Fast | Fast speed running mode |
|
| Slow | Slow speed running mode |
|
| Soun | Sound mode |
|
|
|
|
| 4 | SENS | 0-99 | Sound sensitivity adjustment |
|
|
|
|
| 5 | Pan | OFF | X clockwise rotation |
|
| ON | X anticlockwise rotation |
|
|
|
|
| 6 | Tilt | OFF | Y motor clockwise rotation |
|
| ON | Y motor anticlockwise rotation |
|
|
|
|
| 7 | Balance | R 0-255 | red color adjustment |
|
| G 0-255 | green color adjustment |
|
| B 0-255 | blue color adjustment |
|
| W 0-255 | white color adjustment |
|
|
|
|
| 8 | Rdis | YES | no reverse display |
|
| NO | reverse display |
|
|
|
|
| 9 | REST | YES | system reset |
Our Services Why choose us -------------------------------------------------------------1.Well after sale service with factory price.2.We will reply you as soon as possible when work time & off work time.3.More discount if you have big quantity.4.Full test before shipment.5.One year warranty.6.100% factory, quality controlled and delivery time controlled.. 7.OEM welcome. About us---------------------------------------------------------------------We specialize in the stage lighting for over 15 years. We are professional stage lighting golden manufaturer in China. Most of our products pass with CE approval, with very strict quality and control system in our production line. Feedback---------------------------------------------------------------------If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year. You can visit www.sparkstagelight.com to know more about us and our products.If you are looking for this item or think it is a chance for your market, please feel free to email us, welcome your warmly inquiry! Thanks for your hard work.
Established in 2000, Guangzhou Spark Stage Equipment Co., Ltd...Is a well-organized and market-oriented manufacturer, specializing in the R&D, manufacture and distribution of moving head beam light, Laser Light and LED light. Our Spark brand is well-received in Europe, the Americas, Australia, the Middle East and Asia, with sales revenue of $5000, 000 in 2007.
Our R&D team consists of 20 engineers with an average of 3 years of experience. If you need a specific product developed according to your requirements, we can deliver in 20 days.
Here, we have established a QC department housing 25 inspectors. This dedicated QC team receives regular training so as to monitor the whole production process stringently from raw material sourcing to finished product packing. A random check is also conducted on our CE-marked products before delivery. All these are carried out under an ISO 9000-certified manufacturing system, ensuring every piece delivered to you is defect-free.
Customer's satisfaction is always our pursuit. Therefore we make great effort to develop new and top-quality products and offer excellent services covering pre-sales, on-sales and after-sale for customers worldwide.
Contact us today and start taking advantage of:
Over seven years of industry experience
Buyer's Specifications Accepted.
OEM Capability
Production Capability
Reliability
Large Production Line
We warmly welcome you to visit our company to talk bussiness. Thank you.
