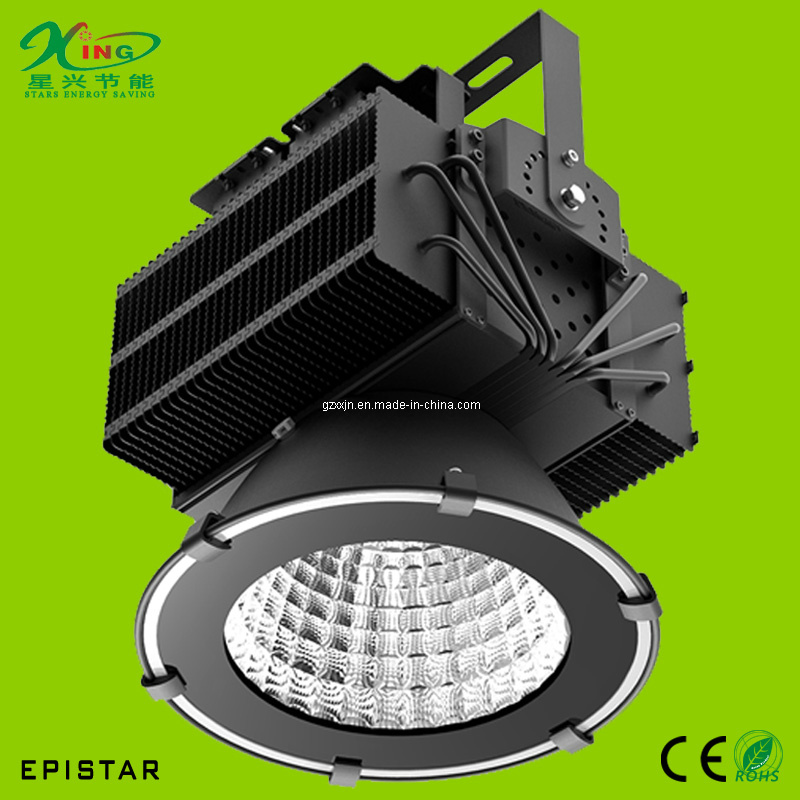

5 years warranty, 100W LED high bay light with Meanwell driver
Features:
1. Adopting heat dissipation technology of heat pipe fins riveting fins, the heat pipe can release heat rapidly from chips bottom to the fins, greatly lower down the temperature of light source, extending its life span
2. Using CREE/XBD/3020 LED, excellent lighting performance, uniform illumination, no glare and strobe, low light decay, pure light color
3. Applying Respirator design, waterproof design, eliminating mist, avoiding condensation, improving quality, good LED heat dissipation technology fully ensuring the long lifespan with 5000hrs, less than 15% lumen depreciation
4. Multiple light selective angles, suitable for different applications
5. Applying constant current and voltage, wide voltage: AC 85V~265V
6. Environmental protection, No pollution, lead and Hg and other hazardous element
Application:
Could be applied in Warehouses, Factories, road toll stations, exhibition halls, supermarkets and other indoor and outdoor places.
Shipment & Delivery Time:
1. MOQ: 20PCS, sample order is available.
2.5-7 working days for sample order, 15-25 working days for normal order.
3. Shipping port: Guangzhou Huangpu port, Shenzhen, Hong Kong.
Welcome to contact with us for more LED High Bay Retrofit information! !
| Item No. | ST-PLS-P09-100W | ST-PLS-P09-150W | ST-PLS-P09-200W | ST-PLS-P09-300W | ST-PLS-P09-400W | ST-PLS-P09-500W |
| Power Voltage | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V |
| Power factor | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 |
| LED | 3020 / 200PCS | 3020 / 300PCS | 3020 /380PCS | 3020 / 200PCS | 3020 / 300PCS | 3020 /380PCS |
| Power | 100W | 150W | 200W | 300W | 400W | 500W |
| Luminous flux: lm | 8500 | 9000 | 12750 | 13500 | 17000 | 18000 | 25500 | 27000 | 32500 | 36000 | 41500 | 45000 |
| Center illuminance (6m) | 375 | 400 | 597 | 610 | 895 | 915 | 1985 | 2058 | 4850 | 5028 | 9850 | 10418 |
| CCT | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K | 3000 K | 6000 K |
| CRI | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 | Ra≥75 | Ra≥80 |
| Lumens Efficiency | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 | ≥85 | ≥90 |
| Beam Angle | 25º/45º/60º/90º | 25º/45º/60º/90º | 25º/45º/60º/90º° | 25º/45º/60º/90º | 25º/45º/60º/90º | 25º/45º/60º/90º° |
| Working Temperature | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree | -30 ~60 degree |
| Storage Temperature | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree | -40 ~80 degree |
| Life Span | ≥50000H | ≥50000H | ≥50000H | ≥50000H | ≥50000H | ≥50000H |
| Housing | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Dimension: mm | ø 374*410 | ø 374*410 | ø 374*410 | ø 374*410 | ø 374*410 | ø 374*410 |
| Packing: mm | 460X460X545 | 460X460X545 | 460X460X545 | 460X460X545 | 460X460X545 | 460X460X545 |
| Net Weight: kgs | 6.3kg | 7.27kg | 8.1kg | 9.2 kg | 10.99kg | 11.59kg |
| IP grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
