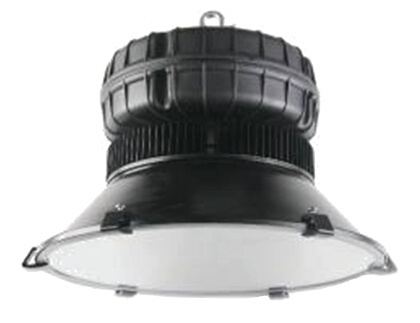

100W Led High Bay Light For Industrial Lighting
We have more than 18 years experience for LED production. We have 2 factories, one LED encapsulation factory, and one die casting factory. Our R&D department has been developing new products to meet the requirement of the market. ODM and OEM are OK for us.
LED high bay light is the application of new types of LED lighting light source developed products,
Compared with the traditional industrial and mining lamp, LED high bay light has the following
advantages: energy saving, low carbon and long life, good color rendering, response speed quickly.
Features
1) Fins cooling way, rapidly reduce the temperature of the LED chips.
2) High efficiency and energy saving. Under the condition of the same illumination, it saves more than
67% energy compared with the traditional lamp.
3) Long life, using semiconductor chip as the light resource, the life can be over 50,000hrs.
4) LED similar to Lumiled , high luminous efficiency, high color rendering index.
5)Light health, the light does not contain UV and IR, do not produce the ray radiation.
6) Green pollution-free, no lead, mercury or other elements of environmental pollution.
7) High performance constant current driver, no stroboscopic, be helpful for protecting eyesight.
Applications
Factory, gymnasia, lighting decoration, squares, airports, warehouse, shopping mall ,and mark
lighting, ect.
Technical Parameters
Power parameters
| Input Voltage/Frequency | 100-277VAC/50-60Hz |
| Input Current | 0.95A/115VAC 0.48A/230VAC |
| Output Voltage | 30-36V TYP:30V |
| Output Current | 3.3±0.10A |
| Power Efficiency | >93% at 230VAC |
| Power Factor | PF>0.98/±115VAC PF>0.95/230VAC PF>0.92/277VAC |
Lighting parameters
| LED Chips Quantity | LED similar to Lumiled(100PCS) |
| LED Consumption | 100W |
| System Consumption | 110±5W |
| LED Luminous Efficiency | >110Lm/W |
| Lamp's Initial Flux | >11000Lm |
| Color Temperature | 2700K~7000K |
| Lamp's Luminous Efficiency | ≥90 Lm /W |
| Lumen Maintenance | 70%(50,000Hrs) |
| Color Rendering Index | Ra≥70 |
| Light Design | LED+ reflectors with twice light distribution |
| View Angle | 70°,90°,110° |
| Driver Working Temperature | -30ºC ~ +45ºC |
| Storage Temperature | -35ºC ~ +60ºC |
| IP Rating | IP52 |
| Life-span | ≥50,000Hrs(Note4) |
| Materials | Aluminum/Glass |
| The color of the lamp shell | Black |
| Mounting | Lifting type |
Note
1.If the lamp outer cable or cord is damaged, must be qualified personnel to repair.
2.That the lamps is abnormal , must cut off the power input.
3.Power input end do some lightning protection measures, and guarantee the input voltage stability.
4.Please mount the lamp in a dry, ventilation, clean environment, and regular cleaning and
maintenance.
5.Inside Lamps have high voltage parts,do not disassemble, so as to avoid the electric shock.
