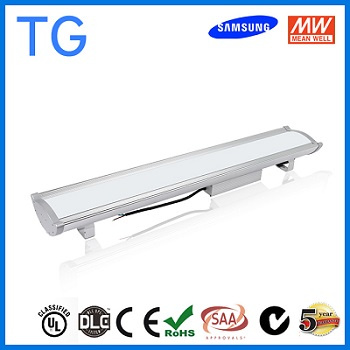

T600 LED Linear High Bay light is the improved version of T400 seriers which combines the technology of LED tube and the requirements of industrial lighting. The lamp body can be more resistant to high humidity,and dust-free design make it free of dust and water accumulation.It's suitable for occasions of steam,heat,cold,high humidity,dust or corrosive gases.
UL/cUL No.(E476514)
Full Seriers Specification:
Code | T6000680W | T60009100W | T60009120W | T60012120W | T60012160W | T60015200W |
Power | 600x166x77mm | 900x166x77mm | 900x166x77mm | 1,200x166x77mm | 1,200x166x77mm | 1,500x166x77mm |
Size | 80W | 100W | 120W | 120W | 160W | 200W |
lument | 8,000-8,400lm | 10000-10500lm | 12000-12600lm | 12000-12800lm | 15700-16500lm | 20,000-21,000lm |
Driver | HLG-80H-42A | HLG-100H-42A | HLG-120H-42A | HLG-120H-42A | HLG-185H-42A | HLG-240H-42A |
LEDs QTY | 192PCS | 264PCS | 324PCS | 396PCS | 396PCS | 480PCS |
Working Voltage | 100-240V AC 50/60Hz (100-277V for North America) |
Beam Angle | 120°(50% |
CCT | 2700k 3000k 4000k 5000k 6000k |
Working Temp | -20-50 |
PF | >0.97 |
IP class | IP65 |
Power Factor | >0.95 |
Dimming Option | 1-10V ,DALI Motion sensor |
Installation | Suspended ,Mounted |
Warranty | 5 Year |
With DLC UL | yes | NO | NO | yes | yes | yes |
