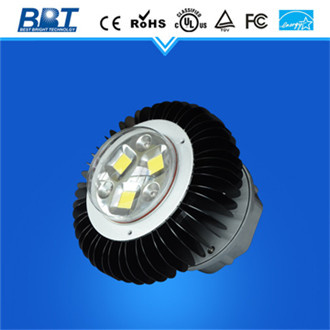

100w high bay light Bridgelux LED with Waterproof IP65
1.Specification of 100w led high bay
Model Number | GK-A100A |
Total Power | 100W |
LED Chip | 3pcs Bridgelux COB |
Power Driver | HLG Meanwell driver |
Input Voltage | 85-305V |
Output Power | 150W |
Power Factor | >0.98 |
Total harmonic index | <20% |
package | 4 pcs in one carton |
Beam Angel | 60 degree |
Material | Aluminium+PC |
1W LED Luminous Efficiency | 130-145lm/W |
Lamp Fixture Luminous Efficiency | 95-105lm/W |
Color Rendering Index | >80 |
Color Temperature | 2800-6000K |
Operating Temperature | -20ºC-45ºC |
Operating Humidity | 20%-95% |
IP Rating | IP65 |
Certificates | CE, RoHS, DLC,ETL, UL, TUV |
Warranty | 5 years |
Application | factory, High Hall, Shop, Hotel,Garage, etc . |
2.Key Feature of led high bay
High performance,5 year warranty and 80000hour lifespan for led high bay reflector
Different distrubution:narrow or wide distrubution.Different distrubution for different requirement,clients can choose a suitable one forled high bay reflector.
IP65,Waterproof design, can be used in both general and special place.
Lamp shell adopts excellent aluminum, apply for high strength die-casting aluminum alloy cover with electrostatic spray treatment, compact and beautiful structure .
BBT patented design,3 pcs Bridgelux 45mil as light source, use multiple integrated T-chip design.ensure the working temperature less than 65 centigrade.It is good for lifespan of led high bay reflector .
High quality driver: HLG Meanwell driver,which is famous in the world, UL,CE,FCC, RoHS and SAA certification are available, PF>0.98
High efficiency cooling system,BBT Patented 3 pcs COB for led high bay , which has a better heat dissipation solution, good for life time of led high bay reflector.
Range:50W-300W with 60 degree, 120 degree, 135 degree and 150 degree.Different cover for different requirement,clients can choose a suitable one for led high bay reflectorngs
Cost-effective led high bay reflector,energy saving,labor saving and lower maintenance cost.
Apply for unique surface treatment technology,well-decorated,novel style.
Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability. Thermal protection system avoid Operating temperature more than 65 centigrade,it is good for led high bay reflector.
Radiator: made by stretched aluminum, with stretched high purity anodized aluminum plate as reflex housing.
3.Series display of led high bay
model | power | lumen | Driver | Led | IP |
GK-A080A | 80W | 7600lm | Meanwell driver | Bridgelux | 65 |
GK-A100A | 100W | 9500lm | Meanwell driver | Bridgelux | 65 |
GK-A120A | 120W | 11400lm | Meanwell driver | Bridgelux | 65 |
GK-A180A | 180W | 17100lm | Meanwell driver | Bridgelux | 65 |
GK-A200A | 200W | 19000lm | Meanwell driver | Bridgelux | 65 |
GK-A250A | 250W | 23750lm | Meanwell driver | Bridgelux | 65 |
GK-A300A | 300W | 28500lm | Meanwell driver | Bridgelux | 65 |
4.B series of led high bay
Model | Power(w) | LED QTY | Lighting Efficiency | CRI | CCT |
GK-B200C | 200 | 120 | >105LM/W | >80 | 5000K |
GK-B250C | 250 | 132 | >103LM/W | >80 | 5000K |
GK-B300C | 300 | 144 | >100LM/W | >80 | 5000K |
5. D series of led high bay
model | power | lumen | Driver | Led | IP |
GK-D080A | 80W | 8000lm | Meanwell driver | Cree | 65 |
GK-D100A | 100W | 10000lm | Meanwell driver | Cree | 65 |
GK-D120A | 120W | 12000lm | Meanwell driver | Cree | 65 |
GK-D180A | 180W | 18000lm | Meanwell driver | Cree | 65 |
GK-D200A | 200W | 20000lm | Meanwell driver | Cree | 65 |
GK-D250A | 250W | 25000lm | Meanwell driver | Cree | 65 |
GK-D300A | 300W | 30000lm | Meanwell driver | Cree | 65 |
6.Advantage of led high bay reflector
1). High strength die-casting aluminum alloy cover with electrostatic spray treatment.
2.) Range power,50W,80W,100W,120W,150W,180W,250W,300W,etc.
3.) Special reflector made from die cast aluminum for the best light diffusing.
4).Good heat dissipation design,ensure the working temperature less than 60 centigrade.
5.)Different degree ,60degree,120degree,135degree,150degree,etc.
6).Strictly quality control system,all producing process are carefully checked by QC.and all the products are through the examination of aging line,and intergrating sphere.
7.)Different housing material,aluminum and PC cover for led high bay.
8.)Widely used in warehouse workshop gas station supermarkets exhibition halls gymnasiums and some other places where need industrial lighting.
9).Distributoership are offered for your unique design and some our current models;
10.)OEM&ODM, any your customized lightings we can help you to design and put into product.
7.Company show
BBT has been holding the spirit of "Green Light, Green World, Green Future" to research and develop her various LED products. Nowadays, BBT products including LED high bay, LED linear light, LED tube, LED flood light, LED street light, LED retrofit light and so on have been sold globally, such as the US, Canada, Australia, Holland, Norway, Germany, England, Thailand, Brazil, South Africa,etc.Customers all over the world speak highly of BBT LED products and professional service. With the frontier technology, innovation consciousness, mature production lines, BBT aims to be the most reliable LED lights supplier in the world.
Strictly quality control :Man-machine interface and PLC control system,programmable controllers, and sound and light equipment over-temperature alarm.Still Aging:online body is not running the case,the power of aging.
8.Why choose BBT led high bay reflector?
1).BBT possesses the super-strong engineer team.
2.)BBT light take its root in product quality,establishing an all-around quality guarantee system and meeting the UL.
3.)BBT specializeds in developing,designing,producing,selling led products, and provides professional lighting solution and intergrades service.
4.)BBT customers whom have shown this fixture to have been thourally impressed with them. I have only had one customer not buy because of cost
5.)BBT manufactures LED Lights since 2009, we have engineers from USA,Germany and Canada, our engineers team knows well the safety norm from different countries.
6.)BBT has professional sales team, we have sales office in USA, Germany and China, we can provide better service to our clients.
7.)BBT has reliable quality,various products,environmentally friendly products.
8.)BBT has Experienced technical staff, who have worked for LED Lights production many years
9. FAQ
1.)You are the factory or trading company?
BBT is manufacturer,who is specilized in interior lighting,commercial lighting,industrial lighting.All of the price is EXW price ,and all of the product should through the aging line, and integrating sphere.
2.)I focus on the high quality lights, can you use best leds and driver?
Yes, BBT uses Meanwell driver,Cree or Bridgelux led ,which is well known in the world.
3.)My market needs the low price, can i get it from your factory?
No problem, we could manufacture the lights according to your requirements, use different chip and driver to hit your target price.
4.)I have some personal requirements, can you do it, like extend the wire length,change the shell color...?
Of cource,BBT engineer provide a professional lighting solution for our clients.and also develope new product according clients' requirement.
