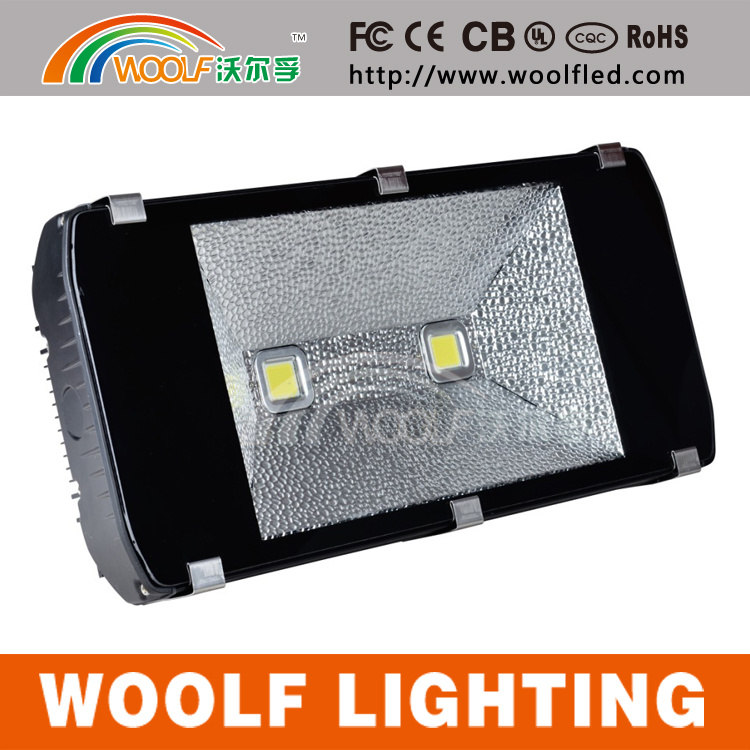

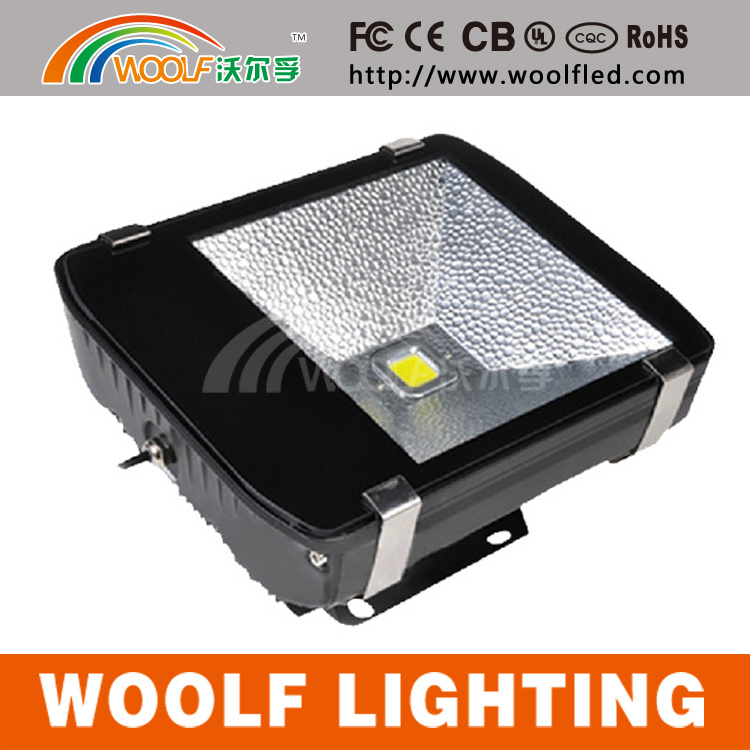

100W COB Meanwell power supply outdoor waterproof led tunnel light
1,Use Pure Aluminum and Tempered Glass panel,Light transparent rate is up to 93%.
2, Light source: COB LED (Bridgelux, Epistar chip available). Bright lighting, up to 110-120LM/W.

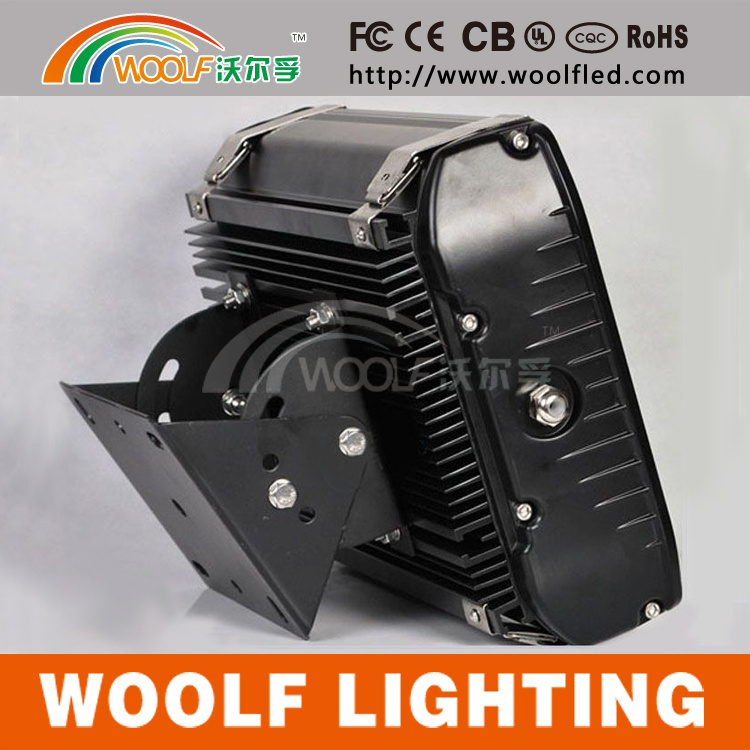

3,Top quality heatsink: 3D heat dissipation,fins cooling technology,efficiently reduce the remperature of the LED lighting chips and extend the lifespan of the lighting source.
4,Adopt Stainless steel parts: Endurancing the corrosion of air,water,chemical acid,alkaline,salt and other materials,can be used in all kinds of harsh conditions for long term.
5,The lifespan is more than 5,0000 hours;Energy Saving 80% compared with traditional Fluorescent lamp.
6,Water-proof design :IP65.
7,LED driver contact with the heatsink directly and the heat dissipation is much stronger.
8,Guarantee:5 years warranty with the Meanwell driver.
9,Widely used in the lighting of government project, business area, airport, metro station, flyover ,signboard, gymnasium, landmark and so on.
Specifications:
Item No.: WF-TGPR200W/602C and WF-TGPR200W/302C
Brand: WOOLF
Power: 200W
Input Voltage: AC85-265V
Size: 46.4 x34.4 x 19.7cm
Lumens: >18000Lm
LED Type: 4pcs 50w COB/392pcs SMD2835
LED Qty: 4pcs COB/392pcs SMD2835
Power Factor: >0.98
Driver Brand: Meanwell driver
Reflector beam Angle: 25°/45°/60°/90°/100°
LED lighting efficiency: 100-110LM/W
CCT: 2700-6500K
CRI: 85Ra
Technology: 3D heat dissipation+ Anodized aluminum
Material: High purity Aluminum+Copper heatpipe
Reflector material: Aluminum
Lifespan: 50000hours
Surrounding: -35°C - +55°C
Warranty: 3 years
| Item NO. | Input Voltage(V) | Size(mm) | Power(W) | Luminous | LED Source | LED Brand | Driver Brand |
| WF-TGPR10W/602C | AC85-265V | 15.8 x 13.2 x 5.82cm | 10W | 900Lm±10% | 1 pcs COB 10W | Bridgelux LED chip | MeanWell |
| WF-TGPR20W/602C | AC85-265V | 20.3 x 17.6 x 6.4cm | 20W | 1700Lm±10% | 1 pcs COB 20W | Bridgelux LED chip | MeanWell |
| WF-TGPR30W/602C | AC85-265V | 21.9 x 19.1 x 6.4cm | 30W | 2550Lm±10% | 1 pcs COB 30W | Bridgelux LED chip | MeanWell |
| WF-TGPR50W/602C | AC85-265V | 28.1x 22 x 11.3cm | 50W | 4250Lm±10% | 1 pcs COB 50W | Bridgelux LED chip | MeanWell |
| WF-TGPR80W/602C | AC85-265V | 28.1x 22 x 11.3cm | 80W | 4250Lm±10% | 1pcs COB 80W | Bridgelux LED chip | MeanWell |
| WF-TGPR100W/602C | AC85-265V | 30.9 x 26.8 x 18.2cm | 100W | 8500Lm±10% | 2pcs COB 100W | Bridgelux LED chip | MeanWell |
