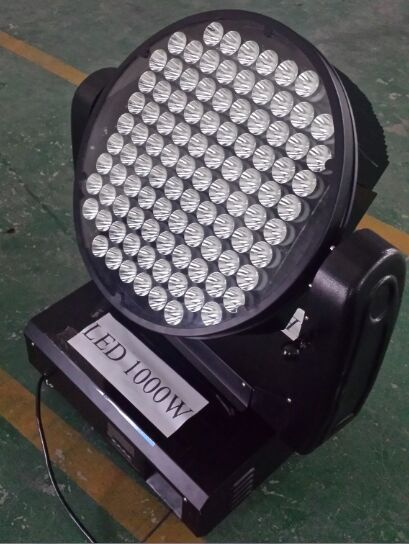

Technical Parameters:
Power supply:50~60Hz/220v/5.2A
Power consumption:1150w
Lamp:White 10w*100pcs,
Pure White 6000~6500k,>=95000.lm;
Beam Angle 3°~ 6°;
Life time >60000Hr
The maximum range of the projector:1000meters
Control Mode:DMX512
Rotation:360°pan,240°tilt.
IP rate:IP55
Size:710*538*660mm
N.W:38kg
Functions:
Pure White long shots,100%,80%,60% Power Option;
Strobe 4~15Hz;
Key Features:
special for outdoor use, High Brightness,energy saving, long lifetime ,small size.
Channel:
Channel | Function | Value | Description |
CH4 | Electronic dimmer/strobe | 0-127 | From bright 100%-0% |
128-141 | Bright 0% |
142~255 | Electric strobe from slow to fast (1~6HZ) |
CH5 | Pan | 0-255 | Rotation in X axe 00~3600 |
CH6 | Tilt | 0-255 | Rotation in Y axe 00~2100 |
CH7 | Shutter | 0-255 | Shutter filter open to close |
CH10 | Lamp | 0-127 | Lamp off |
128-255 | Lamp on |
CH11 | Pan fine | 0-255 | 1.80 micro adjustable in X axe |
CH12 | Tile fine | 0-255 | 1.80 micro adjustable in Y axe |
CH13 | Reset | 255 | Reset after the value remains for 4s |
LCD Menu:
DMX512 MODE | A:XXX | XXX=001-255 |
Auto mode | Master/Slave (Main menu System DMX output on/off) | Index:X(X=1,2,3) |
Manual Dimmer (This mode is only for testing, any value set by the user will not be saved after exiting this mode and all the values will be reset to their original XXX=000 for next new testing. All the values are only valid for this local machine) | Pan:XXX | XXX=000-255 |
Pan fine:XXX | XXX=000-255 |
Tilt:XXX | XXX=000-255 |
Tile fine:XXX | XXX=000-255 |
Strobe:XXX | XXX=000-255 |
Focus:XXX | XXX=000-255 |
