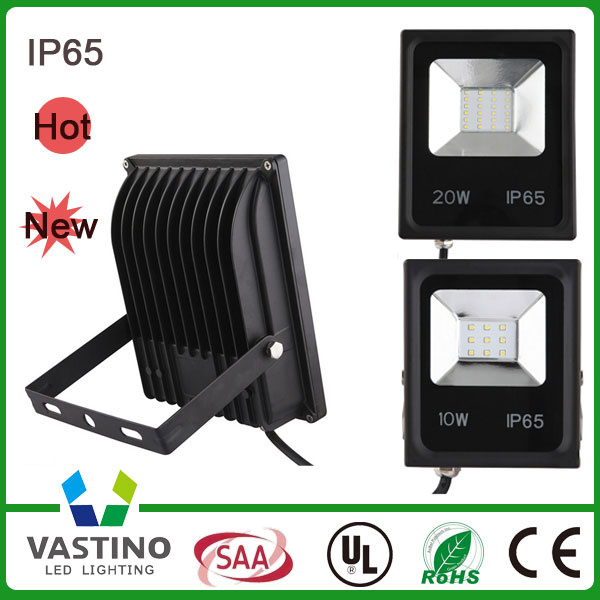

10-50W110V New Series Outdoor IP65 LED Flood Light
Specification:
Base information:
Power
Color temperature
Model NO
10W
PW
CW
WW
YSFL-105-003
20W
YSFL-205-003
30W
YSFL-305-003
50W
YSFL-505-003
Product Informations:
The lamp body of the product is made of high die casting aluminum forming shell, 4 mm tempered safety glass properties, Surface by oil painting.
With the big area of the surface fin structure and its ultra fast cooling rate, the heat dissipation performance of the lamp is greatly improved. The adopted high efficient LED COB light source saves energy significantly by its low light decline rate and long service life.
The driver part adopts the constant current drive power supply with high accuracy ,high efficiency, stable performance and no stroboscopic.
Product Features:
1. Using high brightness high-power integrated chips;
2.Wide input voltage and constant current for the LED . That does not require the grid size fluctuations, also is not affected by grid fluctuation of the brightness of lamps and lanterns and service life;
3.Large cooling area. Ensure the LED junction temperature at work, Ta at 25 ºC Tj < 50 ºC.Compared with the traditional LED flood light that used in summer, the junction temperature was too high so that influence the lifespan of the LED;
4.Environmental friendly, no ultraviolet, infrared, thermal radiation, and mercury pollution;
5.As cold light source, LED lights will not make the goods fade ;
6.High quality reflectors, soft light, high light rate ;
7.High color rendering index, showing the most intuitive and clear pictures, and color temperatures is optional;
8.Quick response, no stroboscopic, low glare, total luminous flux output reached when the lights on;
9. Solid-state light source, strong shock resistance, convenient for transportation and installation
high security;
10.4 mm high transparent toughened glass, the light transmittance is higher, safety performance is stronger;
11.Integration of novel fashion, meet customer needs and feelings, blend in more elements of science and technology and humanized design;
LED Flood light Application:
Mainly used for road, parking lot, stores, roof, expressway, subway, building,Road toll boothdecoration lighting, garden lighting and square, at the same time can also be used in street lamps, suitable for tunnel lighting.
Product datasheet
1.Basic Parameters
Model NO
LED Chip
shell Color
Product Size(mm)
IP
Material
N.W(KG)
YSFL-105-003
10PCS*SMD3030
Black
L130*W110*H40
IP65
Die Cast AL
+Tempered Glass
0.50
YSFL-205-003
20PCS*SMD3030
L180*W150*H50
0.86
YSFL-305-003
30PCS*SMD3030
L225*W190*H60
1.41
YSFL-505-003
50PCS*SMD3030
L280*W235*H70
2.38
2.Electrical Parameters
Model NO
Led power(W)
Input Voltage(V)
Lamp Efficiency(%)
Power Factor
YSFL-105-003
10W
AC100-240V
50-60Hz
≥85
>0.90
YSFL-205-003
20W
≥85
YSFL-305-003
30W
≥80
YSFL-505-003
50W
≥88
3.Optical Parameters
Model NO
Color temperature (K)
LED Flux(lm)
Beam angle(angle)
CRI
YSFL-105-003
6000-6500
4000-4500
2800-3200
850±10%
>120
>80
YSFL-205-003
1700±10%
YSFL-305-003
2650±10%
YSFL-505-003
4500±10%
Storage and Working Environment
Storage environment temperature
-20ºC~+55ºC
Working environment temperature
-20ºC~+45ºC(25ºC-best working environment)
Working environment Humidity
40-90%RH
Lifespan and Warranty
lifespan
30000 hours(luminous flux maintenance70%)
warranty
3 years
Packaging Informations
Model NO
Packaging material
Inner Box (mm)
Carton Size
(mm)
Packing Quantity
(PCS)
Net weight
(KG)
Carton weight
(KG)
YSFL-105-003
Inner boxB9
Outer boxK=K
L155*W122*H48
L500*W385*H180
30
0.53
≈18
YSFL-205-003
L195*W160*H60
L500*W340*H220
16
0.91
≈17
YSFL-305-003
L240*W200*H65
L420*W345*H265
10
1.49
≈17
YSFL-505-003
L310*W245*H90
L*510*W290*H335
6
2.53
≈17
Instructions:
1. Please carefully read the product specification, confirm the use environment is in line with the specifications on the condition of the book that could be installed .
2. The product before access to power, Please ensure the switch is in off then to connect the product to the power.
3. Lamps and lanterns should be installed by a qualified electrician, conform to the IEE wiring electrical standards or national standards ;
4. This product is suitable for indoor ;
5. Please do not under the conditions of voltage too high or too low use for a long time, can affect the function of normal use and life ;
6. Please do not under the conditions of voltage too high or too low use for a long time, can affect the function of normal use and life ;
7. When installation, replacement, cleaning, lamps and lanterns, must cut off power supply, ensure the personal safety ;
8. When abnormal work of lamps and lanterns (self-extinguishing, flash), please check the attachment plug contact performance, and the power supply voltage is normal, if normal, fault has not ruled out, need to change the new light ;
9. Need to clean the surface of lamps and lanterns, please switch off the power! Please do not use any chemical of lamps and lanterns, there may be discoloration or damage to the lamps and lanterns
10. Please do not remove the product itself, in order to avoid damage to internal components. To remove that cannot enjoy quality assurance services ;
