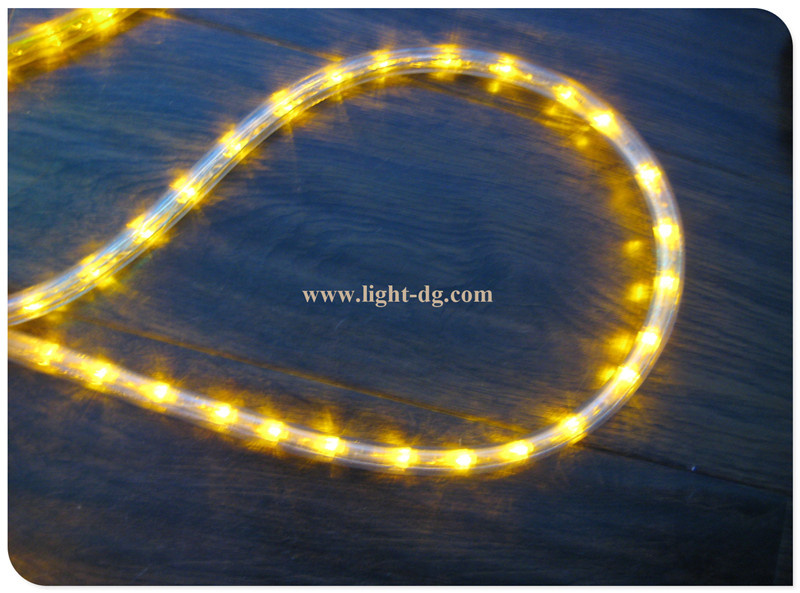

Yellow Round 3wires LED Rope Lights

Yellow round 3wires led rope lights


Product Description
Round 3wires Led rope light is Chasing rope light. Chasing rope lights give the appearance of movement (chasing) by alternating circuits throughout the length of the lights. The more wires (up to 5) the more circuits you have resulting in better chasing effects. All chasing rope lights require a controller.


Specifications:
--Shape: Round, horizontal
--Water Proof: IP44
--Diameter: 11-13mm
--Cutting Unit: 2M/1M
--Number of wire: 3 wires
--Quantity of bulbs/meter: 24/30/36PCSLED/m
--Voltage: 12V, 24V, 110V and 220V are available
--Available Color: Red, Yellow, Blue, Green, White, Warm white, Pink, RGYB, etc.


Features:
--Security
--With controller or convertor
--Operating temperature -20~+60
--Simple and easy for cut and connect
--Small volume, easy transport and install
--Transparent PVC housing for waterproof
--Unique structure, more energy saving, environmental protection, long life


Applications:
1) Window displays;
2) Building outlines;
3) Stairway lighting;
4) Indirect cove lighting;
5) Pathway safety lighting;
6) Restaurants and bars;
7) Signs and graphics.

VOLTAGE	Cut unit	No. of LED per meter	IF	Rated Power	Color	No. of LED PER UNIT
220-240V	2 m	24L, 30L,36L	15mA	3.3w/per m	R/Y	48L,60L,72L
					B/G/W
110-127V	1 m	24L, 30L,36	15mA	1.65w/per m	R/Y	48L,60L,72L
					B/G/W
24V	0.33m	36L	15mA	1.08w/per m	R/Y	12L
	0.17m			2.16w/per m	B/G/W	6L
12V	0.17m	36L	15mA	1.08w/per m	R/Y	6L
	0.08m			2.16w/per m	B/G/W	3L
