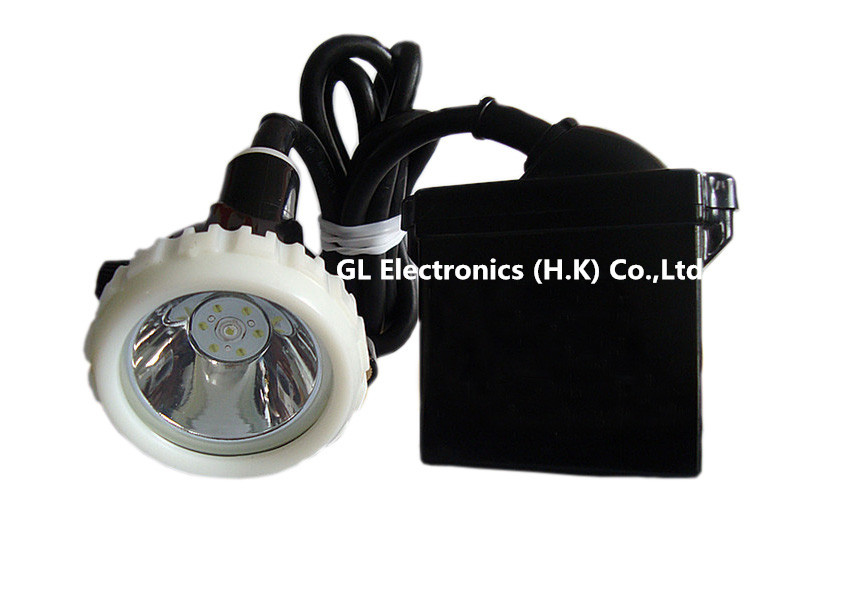

GL5-A cord miner cap lamp is used 1W high power white led as main light, 6pcs SMD leds as the backup lights,and designed with high property 5Ah rechargeable Li-ion battery.
This cap lamp has 4000Lux strong brightness,long lighting time,long life time,high intensity,light weight,low usage cost,and high safety.
It can be used in Mine, underground working, Patrolling, Overhauling and Emergency in electrical power company,Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
Type A lamp with 4500lux
Type B lamp with 10000lux
Type C lamp with 15000lux
Features:
1. CE certificate of compliance NO: TMC20110209EC01
IP65 certificate of compliance NO: TMC20110509EC02
2. Explosion-proof, water-proof, protection in electrical short
circuit,automatic power- off on the socket, 100,000 hours led lifetime.
3. Light weight, portable,high quality, strong brightness, long life time.
4. More than 6 hours working time, more than 3500lux high brigtness, more
than 500 cycles lifetime of the battery.
5. All our lamps has one year warranty. We will keep free maintenance for
you in one year.
Technical Specifications:
Name |
| Unit | Value |
Light source | LED power | W | 1 |
illumimous flux | Lm | ≥100 |
lighting degree | Lux | ≥4000(for 1 meter) |
lifetime | Hour | ≥100,000 |
Battery | capacity | Ah | 5 |
voltage | V | 3.7 |
charging time | Hour | ≤8 |
lifetime | Cycle | more than 500 |
Charger | input voltage | V | AC110-240 |
output voltage | V | DC5.5 |
output current | A | 1 |
Continuous lighting time | Hour | ≥22 |
Lighting range | M | ≥50 |
Working temperature | ºC | -20 - +40 |
Max surface temperature | ºC | 40 |
Outline dimension | MM | 77*93*41 |
Weight (single lamp) | G | 500 |
Type of protection | CE,ATEX,EXIB II |
Protection category | IP68 |
Green Lighting Related safety mining caplamps |
GL2LM | GL2LM cordless mining safety cap light with 2.2Ah battery for hunt light |
GL2.5LM A | GL2.5LM A Cordless Safety Caplamp with 2.5Ah Li-ion battery |
GL2.5LM B | GL2.5LM B 13000Lux Brightness Anti-explosive Miner's Lamp |
GL2.8LM | GL2.8LM 3000Lux Cordless mining lamp |
GL4LM | GL4LM 4500lux safety mining lamp. Led miner's lamp. LED lighting |
GL4.5LM A | GL4.5LM Digital miner's lamp ,digital cordless mining safety cap lamps |
GL4.5LM B | GL4.5LM B 8000lux Mining Lamp Digital Cordless mining safety cap lamps |
GL5LM A | GL5LM-A 4000lux Explosion proof Miner's Lamp,Coal Cap lamp |
GL5LM B | GL5LM-B 10000lux Miner's Caplamp , Mining Caplamp |
GL5L2M | GL5L2M 15000lux mining cap lamp |
GL5.5LM | GL5.5LM Explosion proof 13000Lx Headlamps, Miner's Cap lamp |
GL6LM | GL6LM 50000lux Strong brightness safety Hunting lamps ,Opal mining cap lamp |
GL7LM A | GL7LM A 4000lux Explosion proof Miner's Lamp,Coal Cap Lamp |
GL7LM B | GL7LM B 12000lux Brightness Mining Caplamp |
GL11LM | GL11LM 30000lux strong brightness With 4 colors hunting lighting |
GL-2000 | GL-2000 3000Lx Headlamps, Miner's Cap lamp |
GL1000 | GL1000 Safety Cap , safety mining Helmet, Safety products |
GJ3.5LM | GJ3.5LM anti-explosive intrinsically mine mining lamp |
GJ4.5LM | GJ4.5LM intrinsically safety cap lamp with Ni-MH rechargeable battery |
GJ6LM | GJ6LM coal mining cap lamp with rechargerable NI-MH battery |
GJ8LM | GJ8LM 4000lux safety mining lamp. Led miner's lamp. LED lighting |
GL-T2 | T2 cordless mining safety cap light with 2.2Ah Li-ion battery |
Advantages of Green Lighting Mining lamp
1, Professional R&D team (there are new items designed every month)
2, Complete equipment for all testing
3, Supplying over 5,000 customers in more than 40 countries.
4,10000pcs sales for a month
5,OEM equivalent perfomance and image-quality
6, Delivery from warehouse on Shenzhen Port
7, 1 year warranty for all of lamps
Application:
It can be used in Mountian-climbing,hiking,Patrolling, Overhauling , Mine and Emergency in electrical power company , Military, Police, Fire Fighting, Dockyard and other hazardous locations ect.
Packaging:
packing by colorful box of unit lamp with single charger, 60pcs/carton, 16kg/carton.
carton size: 36cm*44cm*44cm.
FAQ
Q: What does IP mean?
A: IP (Ingress Protection) classifies the degrees of protection provided against the intrusion of the bulb. The first cipher indicates the bulbs resistance to solid intruders (like dust), and the second cipher indicated the bulbs resistance to water
Q:What is the distinguishing feature of explosion proof?
A:Meet GB3836-2000''explosive gas environment use electrical equipment''stand
Q:What is the advantage of environmental protection?
A:The LED solid state light source,no lead and mercury,no radiation pollution ,after the of recyclable.
Q:What is emergency device?
A:Optional configuration,integration design ,safety,long life ,can be removed from the DC power supply system
Q:What is Lux?
LUX is a measurement of, how much luminous flux is spread over a given area.
Q: What is Lumen?
Lumen (Lm) is a measure of the total amount power of the light that is emitted at a 1 meter radius at a 360 degree angle from a light source.
Integrating Sphere is used to measure Lumen.
Additional Information
Payment Terms | L/C, T/T, Western Union |
---|
Minimum Order | 200 pieces |
---|
Lead Time / Delivery Time | 15 Day(s) |
---|
Sample Available | YES |
---|
Delivery Details | Delivery after payment 15-20 days. |
---|
FOB Port | Shenzhen, |
---|
Loading Info | By marine transportation, the aerial transport, the air express mail as your choice. |
---|
Packing Info | unit lamp with single charger, 60pcs/carton, 16kg/carton.Can be customized as your requested. |
---|
Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
---|
