Product Description
Display and control feature | Structure feature |
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 10mm | Module size | 160 mm*160mm |
| Pixel composing | 1R1G1B | Display resolution/module | 16 dots*16 dots |
| Wavelength (R) | 625±5 | Standard cabinet size | 1280 mm*960mm |
| Wavelength (G) | 522±3 | Weight per sqm | 65 Kg |
| Wavelength (B) | 567±3 | Protection classification | --- |
| Wave Angle (H) | 140°(H)/ 60° | Install mode | Wallmount, hung and stand structure |
| LED package | DIP346 | | |
| Density | 10,000 | Working power |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥5000cd | Working voltage | AC 220v/380v±10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 750W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 450W/sqm |
| Refresh | 400 Hz | Short circuit protection | Yes |
| Driving method | Constant driving 1/4 | | |
| Control mode | synchronous | Working environment |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10,000 ( scattered) | Working temperature | --20~50°C |
| lifetime | 100,000 hours | Working Humidity | 10~90%
|

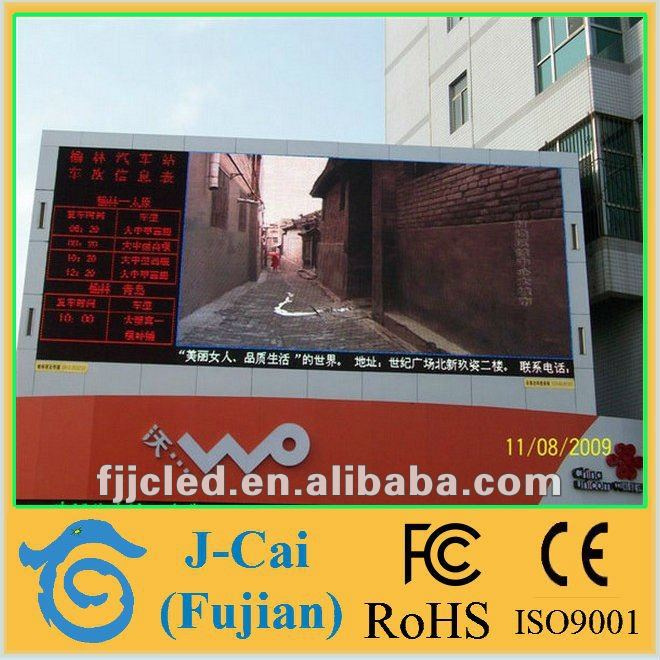

Whosale P10 Outdoor Full Color LED Display
Application:
It can display Video characters, graphs, and widely used to issue all kinds of advertising and show information in pubilic as follows:
1. Service propaganda in finances, post offices, telecom, commerce, hospitals, sports stadiums
2. Policies and decrees issued from government organizations
3. Instructions, guidance and information issuance in airports and railways
Technical features
1) Waterproof, IP67 front and IP65 at the rear side.
2) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
3) No mosaic due to excellent flatness and nice uniformity of light-emitting.
4) Wide viewing angles and the horizontal angle can reach 110° . The images effect will not Change largely in the range.
5) Aluminum cabinet can be used for lower weight.
6) Single-lamp maintenance with low cost.
7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
8) Environmental-friendly and energy-saving.
Our service:
1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English.
3). OEM&ODM, any your customized screen we can help you to design and put into product.
4). Distributer ship are offered for your unique design and some our current models.
5). Protection of your sales area, ideas of design and all your private information
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
