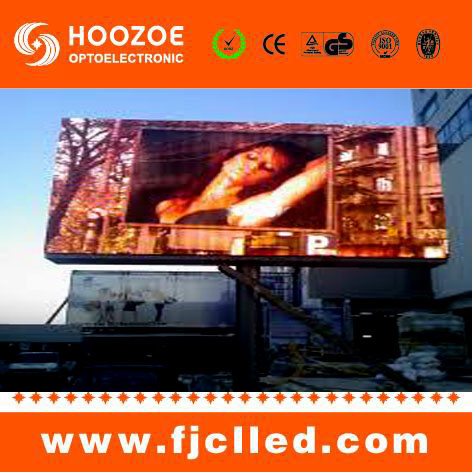

High Brightness P16 LED Display
1. Certification: ISO9001: 2000, CCC, CE, FCC, RoHS, EMC
2. Energy saving.
3. Colorful, fresh & beautiful images.
4. Competitive price.
5. Superior Uniformity
6. Extra-high Brightness
LED Display Sales Service--24 HOURS ON CALL
FUJIAN HUAJIE OPTOELECTRONIC CO., LTD
Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co., Ltd, with a register capital 30 million RMB. Production base covers 53, 000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance led displays, led modules, led screens amount to 250, 000sqm per month.
1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display lighting products.
2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3. Many Certificates Approved
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 certified
4. Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!
|
No. |
Specifications |
|
|
1 |
Item No. |
P16 Outdoor Full Color LED Display Screen |
|
2 |
LED chip |
Taiwan/Silan/Cree |
|
3 |
Physical Pixel Pitch |
16mm |
|
4 |
Physical Pixel Density |
3906dots/sqm |
|
5 |
Pixel composition |
1Red, 1Green,1Blue |
|
6 |
Moduel Size |
256*256mm |
|
7 |
Moduel resolution |
16*16dots |
|
8 |
Cabinet thickness |
15-18cm |
|
9 |
Bracket of cabinet |
Easy to install and dismantle |
|
10 |
Brightness |
≥ 6500cd/sqm |
|
11 |
Colors |
16.7million |
|
12 |
Viewing angle |
Horizontal 120°-140°, Vertical 90° |
|
13 |
Viewing distance |
5m -200m |
|
14 |
Soft Rubber Mask |
Through the aging Test to protect player and LED display itself . |
|
15 |
Scan frequency |
≥600 Hz |
|
There will be one receive card in each cabinet ,so that the LED display won't sparked. Also it is very easy to move and connect |
|
16 |
Video Frame Rate |
≥150 fps |
|
17 |
Color temperature |
6500°K to 9500°K adjustable |
|
18 |
Control method |
synchronous control by PC |
|
19 |
Life span( half brightness) |
≥100,000 hours |
|
20 |
Weight |
50-65Kg/sqm |
|
21 |
IP rate |
IP65 ( front side and rear side) |
|
22 |
Average power consumption |
350W/sqm |
|
23 |
Max power consumption |
1000W/sqm |
|
24 |
Input voltage |
AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
|
25 |
Operating Environment |
Temperature:-20 - +60 Humidity:10%-95%RH |
|
26 |
Operating system |
Windows 98/2000/ME/XP |
|
27 |
Type of video signal |
S-video, composite video ,RGB ,VGA ,DVI |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
