Main Features
1. Adjustable projecting direction.
2. Instant on/off, No UV flickering.
3.80% less power consumption than traditional light source.
4. VDE/UL listed rubber cable with cold-pressed terminal
5. Qualified materials i. E. Constant current driver from Meanwell and Brightlux Chip
6. High power LEDs from Bridgelux
7. Built-in cooper heat pipe
TypicalApplications
1. Tunnel, Subway, Underground.
2. Gym, Sports Stadium.
3. Building, Billboard.
4. Gas Station, Garage.
5. Park, Garden.
6. Workshop, factory.
7. Warehouse, Storage.
8. Yard, Square.
9. Road, Highway.
10. Station, Dock, Deck, Ship, Boat.
11. Aquarium etc.
Installation instruction:
Step 1: Power must be cut off before installation, it's not allowed to do all this with power on.
Step 2: Put two expansion screws on where required the same size as position Awhat it's indicated in the diagram.
Step 3: Turn up to any beam angle needed by rotating the lamp body.
Step 4:
Make connection of Blue with L line, Brown with N line and yellow green wires with Earth Line, turn it on
When it's connected properly.
Package: 12 pcs a carton, carton size: 64x54x46cm

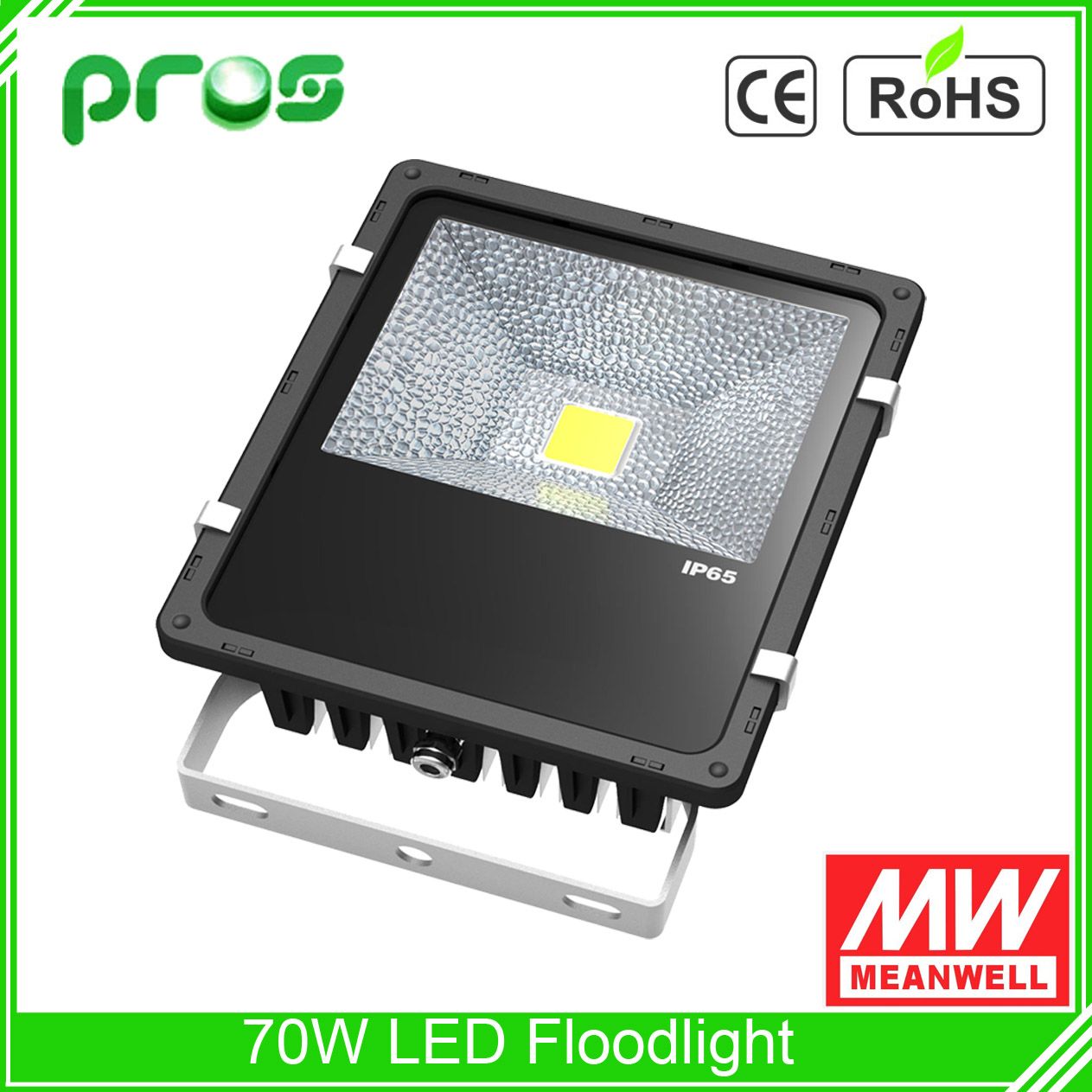

Item No. | PL-FWL70W-TG |
Input Voltage | 85-265VAC |
Power | 70W |
Power Factor | >0.95 |
Power Efficiency | 98% |
LED Brand | Eplaster or Bridgelux LED |
Light Source | 1pc 70W High Power COB LED |
Luminous Flux | 6300lm |
Color | Warm white ,White |
Housing Material | Pure Aluminum + tempered glass + ASA frame |
CRI | M | RA>80 |
CRI | NW/W | RA>75 |
IP Grade | IP65 |
Dimension | 291 ×250×116 |
Working Lifetime | 50000h |
Connect wire | L Power line |
Connect wire | N Null line |
Connect wire | G Earth line |
Certification | CE, EMC, LVD, RoHS, UL |
Pcs per carton | 4 |
Carton Size | 70x40x39cm |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
