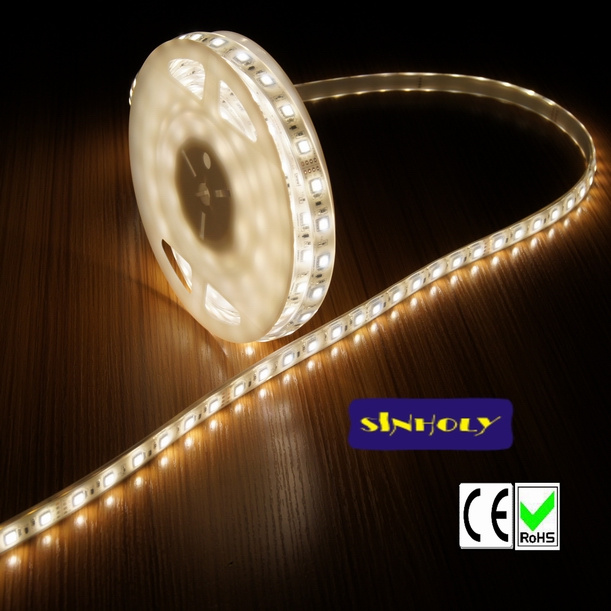

Waterproof LED Strip
Features:
60 Patent LED/Meter, 20lumen/LED. 1200lumen/Meter.
PCB thickness: 0.2mm
Working voltage: 12V DC
Lumen: 1200lm/Meter
Working current: 80 to 240mA per 300mm
Power consumption: 13.5-14.4w
Number of LEDs: 60PCS/Meter
LED viewing angle: 120°
Advantages:
Low heat dissipation
Easy connection
Strip length can be altered by cutting at the detaching point in groups of 3 LEDs each
Operating with mini IC controller, working stable under 18-28V.
Applications:
Edge lighting of transparent or diffused materials
Path and contour marking
Illuminated signs
Mood lighting
Dimensions: 300 x 14 x 4mm
Packaging: 10PCS (5m/reel)
|
Part Number: XHY-5050S12V-RGB |
Application: Accent lighting & Decorative lighting |
|
LED type: Patent SMD5050 |
LED quantity: 60 LED/meter |
|
Physical dimension: 5000mm (L) *10mm (W)*2.5mm (T) |
Operating voltage: 12VDC |
|
Power consumption: 20mA/led & 13.5-14.4Watt /meter |
Operating temperature: -40degreesC ~ +50degreesC |
|
Emitting color: W,R, G, B, Y |
Luminous output each color: White 2~3; R &Y 1, G 2~3, B 0.5~1 (Lm/led) |
|
Beam angle: 120degrees |
Life span: 50000 hours |
|
Defend grade: IP67 |
Driven mode: Constant voltage |
|
Weight: 0.25kg/roll |
Package: 5m/roll |
We're a professional manufacturer of LED light indoor lighting and outdoor lighting, such as: LED tube light, LED strip light, LED panel light, LED bulb lamp, LED ceiling light, LED spotlight, LED module, LED washer light, LED road light, LED fence tube, LED car light and so on.
We can customize product for you and offer you lighting solution.
Our products not only have good quality but also competitively price in the LED market nowdays. And we will satisfy all the customers we work with, the mateirial of our goods mainly imported from South Korea, the United States and Taiwan. We have a complete after-sales system to answer all of your questions within 24 hours.
Welcome to contact us!
