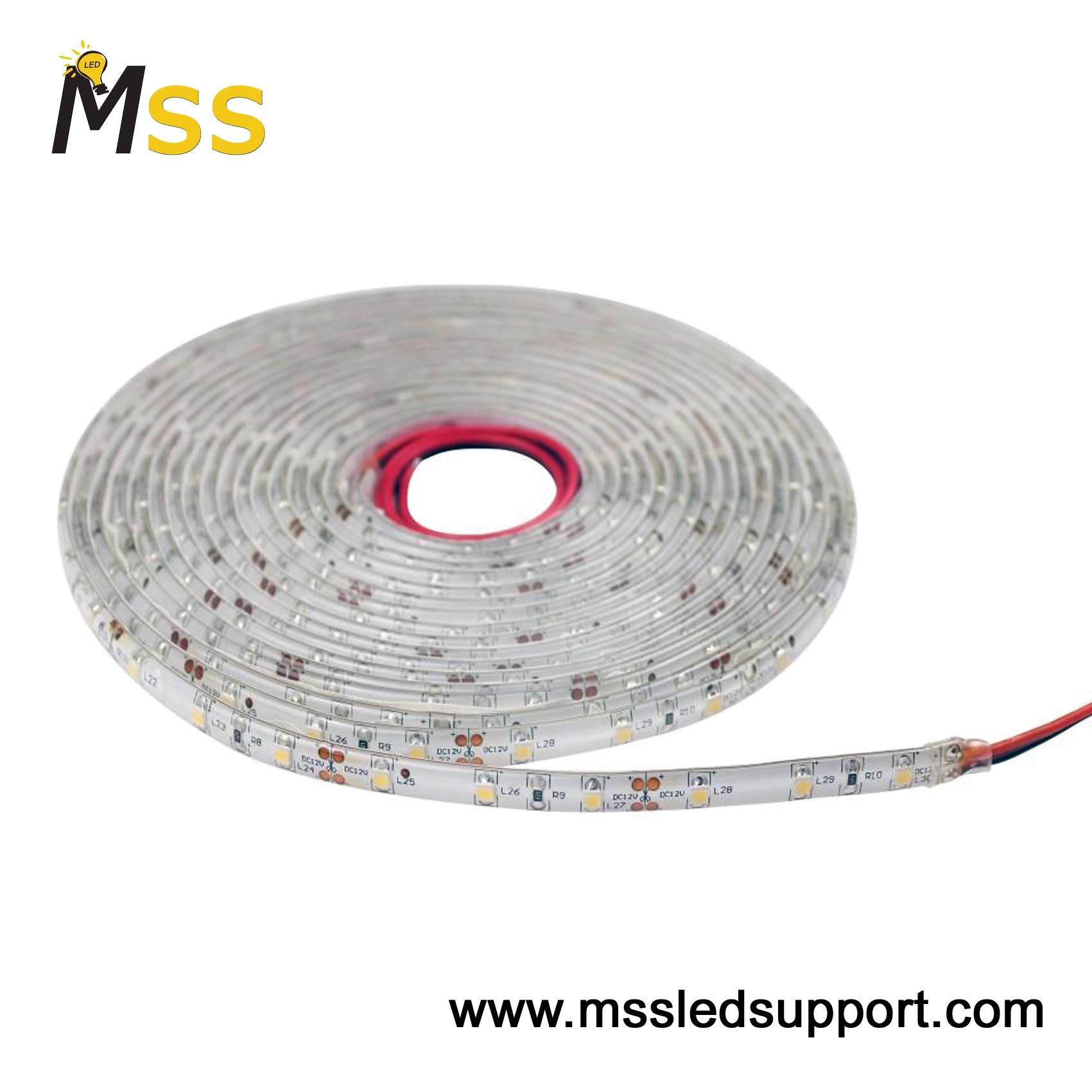

Flexible LED Strip/LED Strip light Waterproof
Article NO.: MSS-F300-W3528W/M/R/G/B/Y-IP64 Waterproof strip
Feature
1.The thickness of the wires should be adopted based on the possible maximum current, length of wires(10m in maximum is recommended)and the loss in the wires during transit at low voltage
2.Two ends of connection should be done as waterproof
3.No touch in static, no work in electricity
4.The maximum length is 5m, no exceeding in connection
5.Quality power supply is recommended(with short circuit protection, high voltage and power load protection)
6.It can be cut at the mark of the connection and there will be no affect to its function
Application
Architectural decorative lighting
Archway, canopy and bridge edge lighting
Amusement park, theater and aircraft cabin mood lighting
Emergency hallway lighting
Auditorium walkway lighting
Stairway accent lighting
Concealed lighting
Backlighting for signage letters
Channel letter lighting
Emergency exit path lighting
Cove lighting.
|
Specification |
|
LED type |
3528 SMD LED |
|
Available colors |
W/M/R/G/B/Y |
|
Viewing angle(θ) |
120° |
|
Luminous flux (lm) |
|
R G B Y WW W CW |
|
330 900 270 300 1500 1500 1500 |
|
Wavelength ( nm/K) |
|
R G B Y W WW CW |
|
619-635 512-528 463-475 584-595 5500-6500 2700-3000 8000-11000 |
|
LED Q'ty / 5meters |
300pcs |
|
Life span |
50,000h |
|
Electric parameter |
|
Working voltage(V) |
DC 12V |
|
Power consumption(W) |
30W |
|
Driving method |
Constant voltage |
|
Wires&series connection length |
|
Wires Input end connect two-core red and black wire,Red:+;Black:- |
|
Stand length in serial connection |
5m |
|
Maximum length in serial connection |
≤5m |
|
Outer Parameter |
|
Shell |
Epoxy resin |
|
PCB Color |
Amber / white |
|
Dimension |
L 5000mm * W 8mm * H 2.2mm |
|
Fixed mode |
|
Screw |
/ |
|
Double-side adhesive |
5000*8mm,3M double-sided adhesive |
|
Environment Parameter |
|
Working Temperature |
-40- +50Celsius degree |
|
Storage Temperature |
-50- +60Celsius degree |
|
IP grade |
IP64 |
