Advantage:
1. Waterproof IP65, Using in professional stage/ studio/ theatre/ dyeing effect

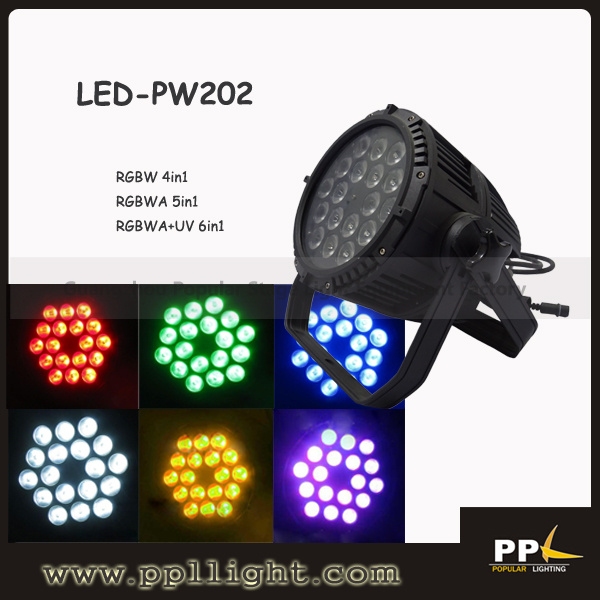

2. 18pcs RGBW 4in1 / RGBWA 5in1/ RGBWA+UV 6in1 LEDs
3. Color infinite mixing, perfect wash effect
Technology Parameter :
Voltage: AC90V-245V/50-60Hz
Power: 180W/280W/330 W
Lamp:18pcs*10W 4-in-1/18pcs*15W 5-in-1/18pcs*18W 6-in-1 waterproof Led par light
Beam angle: 25°as fittd , 15°,35°,45°, 60°optional
Life time: >5000 thousand hours
Dimmer: 0-100%
Control: DMX512, Master-slave, stand-alone, music Activate
Channel: 8 CH
Display Board: digital LCD display
Housing Material and Color: Aluminum; Black
Maximum Ambient Temperature: 45 °C
Waterproof Rate : IP65
Used in professional stage/studio/theatre/dyeling/effects
Packing size: 320x300x380 mm
N/G W. : 8.8/9.6KG
DMX Channel:
| DMX 8H Mode Channel |
| Channel | number | Function Description |
| CH 1 | 0 | General Dimmer |
| 1-255 | R.G.B.W General Linear Dimmer from dark to bright |
| CH 2 | 0 | General Strobe |
| 1-255 | R.G.B.W General Strobe from Slow to fast |
| CH 3 | 0 | Function of selection |
| 1-50 | Mode of DMX 8CH |
| 51-100 | Mode of colorful change |
| 101-150 | Mode of gradient change |
| 151-200 | Mode of pulse variable change |
| 201-255 | Mode of Sound Activation |
| CH 4 | 0 | Speed |
| 1-255 | Speed ,from slow to fast |
| CH 5 | 0-255 | Red linear dimmer ,from dark to bright |
| CH6 | 0-255 | Green Linear Dimmer ,from dark to bright |
| CH7 | 0-255 | Blue Linear Dimmer ,from dark to bright |
| CH8 | 0-255 | White Linear Dimmer ,from dark to bright |
