Wall Mount Front Maintenance LED Display

Wall Mount Front Maintenance LED Display
Price: US $ 693-748/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Western Union



Front maintaince led display board :

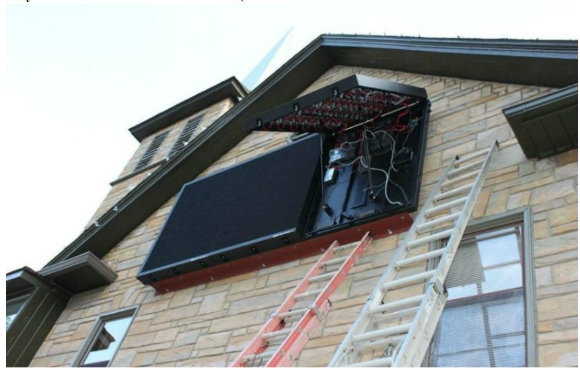

Maintaince from the front side ,easy and convinient for led display fixed on wall .







DescriptionTechnical parameter
Unit moduleModule size160*160mm
Pixel pitch10mm
Pixel density10000dots/m2
Pixel configuration1R1G1B
Led specificationΦ 5ellipse
Pixel resolutionW: 16dots*H: 16dots
CabinetDimension960mm*960mm*150mm
Quantities of module18pcs
Power supply5pcs
Thermal dischargeFan*2pcs
Total weight55kg
Best viewing angle10-300m
TemperatureStorage: -35~+85
Working: -35~+85
Thickness15cm can adjustable
Remarks: cabinet size can changed, upon project need.
PowerWorking voltageAC220V/110V± 10%
Average power consumption250-500W
Max. Power consumption≤ 560W/sqm
Current≤ 20mA(single LED)
Control systemCPUPentium4 or above
Operating systemWIN98/2000/NT/XP
Control methodSynchronization
Main technical parameterDriving deviceStatic scanning
Drive typeConstant Current driver IC
Refresh frequency≥ 400Hz
Grey scale/colors256 levels of each color(R/G/B)/16.7M color
Brightness of white balanceMore than 8000cd/sqm
Brightness adjustment256 levels of each color(R/G/B)by software
Operating ambient humidity10%--95%
Video signalPAL/NTSC
Control systemDVI display card+full color controller card
MTBF≥ 10, 000hours
Life span≥ 100, 000hours
FlatnessTolerance of interpixel ≤ 0.3mm
Tolerance of modules clearance≤ 0.6mm
Power switchAutomatic switch
Display mode1024*768
Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
SoftwareLED media player

Our service:

1. Guarantee

(1) We guarantee all our displays, modules, parts for two full year.

During this time, we will replace or remend our goods for free

if there is something wrong with them.

(2) We will provide maintenance for a lifetime and charge for the raw materils only.

2. Technology Training

(1) We provide the technology training for free,

which contains the operation training and maintenance training in the factory.

(2) We will send our engineers to your country by negotiation.

3. Maintenance and Consulation

(1) We provide full maintenance for a lifetime and charge for the raw materials only.

(2) We also provide lifetime consulation by E-mail, call, MSN or other ways for free.

4. Documents and Certification

(1) We provide the operation manual, software, test report and so on.

(2) We can also provide all kinds of certification such as CE, UL and so on.

5. CAD Drawing and Fixing

(1) We provide CAD drawing on how to fix up the display for free

 and some other expert suggestion.

(2) We will send our engineers to your place if we are expected after our negotiation.

6. Additional service

(1) We provide you the forwarding information,and some other information

such as flight box, structure information for your reference for free.

Welcome to contact us if you need more information or have any specialized inquiry. Thank you!!!



Prod Model: FOX-DIP-P10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LEDs Chip: CREE Epistar Opto-Tech
Brightness: 9000nits
Viewing Distance: 10-250m
Module Size: 160*160mm/320*160mm
Viewing Angle(H/V): 110° /70°
Operating Temperature: -20°c~50°c
Input Voltage(AC): 110~240V
Color Temperature: 6500k
Life Span: >100,000 Hours
Warranty Time: 3 Years & 5 Years
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 300W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.

Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.

Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.

With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
