Home LED Light Products Video Wall LED Display Made of Ultra Slim Flat Panel (indoor 3/4/5/6mm)

Video Wall LED Display Made of Ultra Slim Flat Panel (indoor 3/4/5/6mm)

Video Wall LED Display Made of Ultra Slim Flat Panel (indoor 3/4/5/6mm)
Price: US $ 545-1235/Piece
Trade Terms: FOB,EXW
Min Order: 8/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
An Series(indoor)Overview:

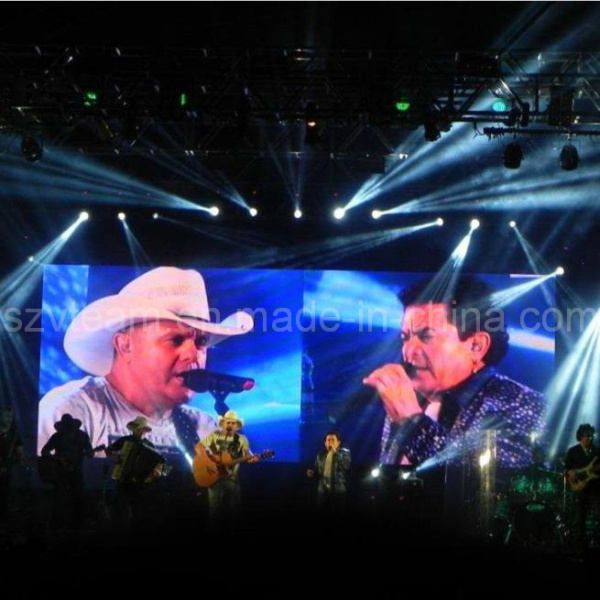

An Series (indoor) is the light-weight and super-thin led display screens, which are very popular for video rental business and large square applications. Jointed correctly, easy to install and dismount. Simple structures are the main features of the screens. The unit size of the screen is 500mm*1000mm*65mm, while the weight is only 13kg/panel. An Series (indoor) are popular to install on entertainment areas, such as TV stages and clubs. The video performances of the An Series screens are brilliant, pretty clear, and real. An Series (indoor)is the best choice for creative designing company to achieve large square video show.

Product Features:
1. Light-weight. Convenient in transporting and installing saving labor cost, suitable for flow shows.
2. Nice appearance and simple structure.
3. Jointed precisely, being installed &dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage for nice image.
Item An3.9 An4.8 An5.2 An6.9
Pixel  Pitch 3.9mm 4.8mm 5.2mm 6.9mm
LED  type SMD2121 SMD3528 SMD3528 SMD3528
Pixel  matrix  per  panel 128*256 104*208 96*192 72*144
Pixel  density/sqm 65536 43264 36884 20736
Brightness 900  Nit 1000  Nit 1300  Nit 1300  Nit
Driving  Mode 1/16  scan 1/16  scan 1/16  scan 1/9  scan
View  distance ≥ 3m ≥ 4m ≥ 5m ≥ 6m
Weight 13kg 13kg 10kg 10kg
Max.   Power 200W/panel 250W/  panel 120W/  panel 120W/  panel
Ave.   Power 100W/  panel 130W/  panel 60W/  panel 60W/  panel
Panel  Size 500mm  x  1000mm  x  65mm
LED  Configuration RGB  3in1
LED  Lamp/Chip Silar  or  Epistar
Viewing  Angel 140° (H)/120° (V)
Gray  Scale ≥ 14bit
Refresh  rate ≥ 1920Hz
Color  temperature 8000K  ±   500(can  be  customized)
Colors  Space 687  billion
Waterproof  rate IP43
Application Indoor, rental& fixed
Input  Signal DVI, VGA, HD-SDI, S-video, Composite, YUV, etc
Input  Voltage AC  220V± 10%,   50/60Hz
Power  Supply Meanwell  or  G-energy  with  UL  certificate
Display  Media Video, graphic, animation, signage, cartoon, text, etc
Control  System YDEA(showbox), Nova, Linsn, PC  based  dynamic  capture  &   mapping.
System  Operating  Platform WINDOW98/2000/XP/7/8
Working  Environment Temperature:   -10º C~+50º C,   humidity:   10-90%RH
Warranty Two  years
Lifetime >   50, 000  hours(to> 70%  luminous  output)
Certificate CE& RoHs
Prod Model: An(indoor)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
All Pixel Pitch: 3.9/4.8/5.2/6.9mm
Pixel Configuration: RGB3in1 SMD2121/3528
Panel Size: 500X1000X65mm
Refresh Rate: >1920Hz
Gray Scale: >14 Bits
Protection Level: IP43
Power Supply: AC 110-220V,50/60Hz
Working Environment: Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time: >50,000 Hours(>70% Luminous Output)
Certificate: CE,RoHS
Tube Chip Color: Full Color
Display Function: Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: RoHS
System Operating Platform: WIN XP
Scanning Mode: 1/9 Scan
Pixel Configuration: RGB 3in1
Pixel Pitch: 3.9/4.8/5.2/6.9mm
Pixel Density: 20736-65536 Dots/M²
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.

VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.

As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!

VTEAM Mission: To create value and profit for customers!

VTEAM Vision: Being creative concept pioneer!
