UV LED flashlight 365nm Products:

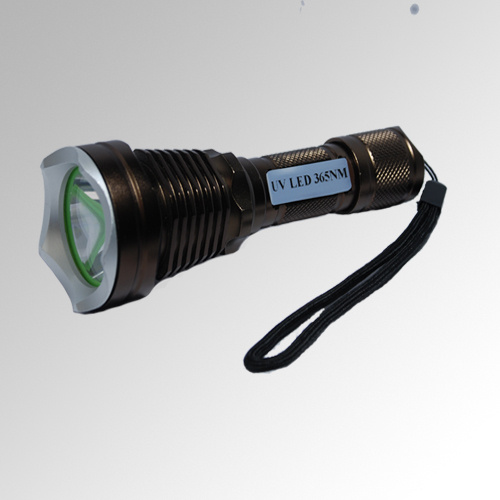

This is the UV365nm, the brightest single-die LED UV flashlight available. Designed for FPI NDT, Fluorescent Penetrant Inspection Non-Destructive Testing, it dramatically exceeds the ASTM minimum intensity standard of 1000µ W/cm² " 15". The factory-focused beam creates a bright 20mm spot of 365nm UV light at over 25, 000µ W/cm² " 15" surrounded by a 50mm beam at over 15, 000µ W/cm² .
For its UV source, the UV365nm uses a genuine, Japanese Nichia NCSU033B(T) 365nm LED. It's up to 34% brighter than the original Hoplite, throwing as much as 390mW of UV. Per the Nichia factory documentation which can easily be found on line, the vast majority of emission from this device is very narrow; At or close to 365nm, with 380+nm radiation not appearing until about. 05nm
3. LED flashlight 5W 365nm Standard configuration:
TY-NCSU033B-S host
Rechargeable lithium battery (and a spare battery).
Item |
Symbol |
Absolute Maximum Rating |
Unit |
Forward Current |
IF |
700 |
mA |
Pulse Forward Current |
IFP |
1000 |
mA |
Allowable Reverse Current |
IR |
85 |
mA |
Forward Voltage |
VF |
3.8-4.4 |
V |
Peak Wavelength |
P |
365 |
nm |
Radiant Flux |
e |
390 |
mW |
Shenzhen Taoyuan Electron Limited Specializing in the production and sales. Our main products have: High power LED Driver, LED power supply, LED Flood light, LED Power. We collected advan-tages of LED technology and experienced personnel, with LED lighting-depth research, manufacturing, create new LED world.
Our factory has passed certification and certification requirements are in line with the operation of the system in strict accor-dance with all of our products, LED products are low power, low attenuation, high bright-ness, long life and so on.
Shenzhen Taoyuan Electron Limited called on ammonium pursuing a "customer first, customer first " principle of service, we have a reasonable price, fast deliverly, quantity assurance, a wide variety of googs and a range of advantages. We welcome domestic and abroad to discuss business to creat a better tomorrow.
