Home LED Light Products UV LED Flashlight 365nm 5W

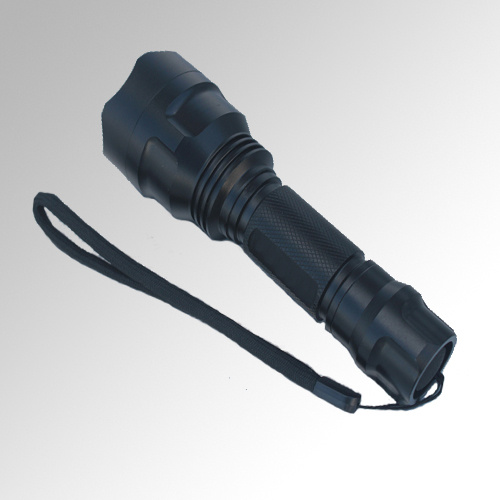

UV LED Flashlight 365nm 5W

UV LED Flashlight 365nm 5W
Price: Negotiable/Piece
Trade Terms: others
Min Order: 30/Piece
Pay Type: T/T,Paypal,Western Union
UV 365nm LED flashlight 5W Products:
This is the UV365nm, the brightest single-die LED UV flashlight available. Designed for FPI NDT, Fluorescent Penetrant Inspection Non-Destructive Testing, it dramatically exceeds the ASTM minimum intensity standard of 1000µ W/cm² " 15". The factory-focused beam creates a bright 20mm spot of 365nm UV light at over 25, 000µ W/cm² " 15" surrounded by a 50mm beam at over 15, 000µ W/cm² .
For its UV source, the UV365nm uses a genuine, Japanese Nichia NCSU033B(T) 365nm LED. It's up to 34% brighter than the original Hoplite, throwing as much as 390mW of UV. Per the Nichia factory documentation which can easily be found on line, the vast majority of emission from this device is very narrow; At or close to 365nm, with 380+nm radiation not appearing until about. 05nm.
Item Symbol Absolute Maximum Rating Unit
Forward Current IF 700 mA
Pulse Forward Current IFP 1000 mA
Allowable Reverse Current IR 85 mA
Forward Voltage VF 3.8-4.4 V
Peak Wavelength P 365 nm
Radiant Flux e 390 mW
Prod Model: TY-uv 365nm
Markets: North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Bulb Type: LED
Power Supply: Rechargeable Battery
Material: Aluminum
Lighting Period (',H): 2-3h
Shenzhen Taoyuan Electron Limited Specializing in the production and sales. Our main products have: High power LED Driver, LED power supply, LED Flood light, LED Power. We collected advan-tages of LED technology and experienced personnel, with LED lighting-depth research, manufacturing, create new LED world.

Our factory has passed certification and certification requirements are in line with the operation of the system in strict accor-dance with all of our products, LED products are low power, low attenuation, high bright-ness, long life and so on.

Shenzhen Taoyuan Electron Limited called on ammonium pursuing a "customer first, customer first " principle of service, we have a reasonable price, fast deliverly, quantity assurance, a wide variety of googs and a range of advantages. We welcome domestic and abroad to discuss business to creat a better tomorrow.
