Home LED Light Products UV Electrics UV USB Line UV LED Cup Curing Machine (SK-103-300)

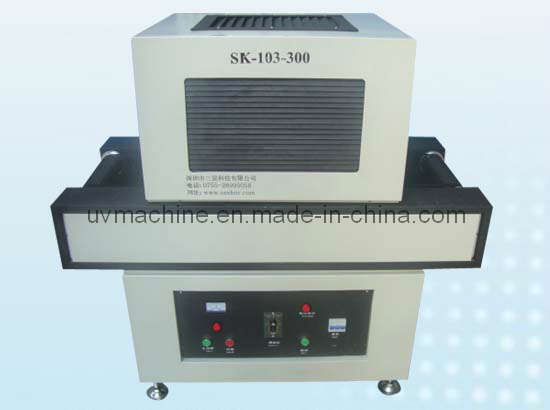

UV Electrics UV USB Line UV LED Cup Curing Machine (SK-103-300)

UV Electrics UV USB Line UV LED Cup Curing Machine (SK-103-300)
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: T/T
UV curing machine UV coating machine UV exposing machine

Technical Parameter:

UV Lamp 3.0KW*1PC
UV radiation intensity: 100W/CM
UV radiation length: 300mm
UV wave length: 365nm
In put length: 400mm
Out put length: 400 mm

Distance between Lamp and delivery belt can adjust: 50-120mm
In Put / out put height: 10~120mm can be adjust;
After 3 Minutes, UV radiation light will get its 100% out put.
Lamp life time: 800H
Speed adjust: 1-10m/min.
Delivery belt width: 300mm;
Belt width: 300mm
Belt material: Teflon/stainless steel
Machine Size: 1250*550*1200mm(L*W*H)
Power supply: 220VAC 50Hz
Model SK-103-300 Belt width Teflon/stainless steel
Machine size L1250*W550*H1200 Out look white with black
UV lamp 3KW*400mm*1pc Auto stop yes
UV lamp kind UV mercury lamp Power supply AC 220V 50HZ
UV lamp height adjustable 50-120mm UV lam intensity 100%
Prod Model: SK-103-300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Structure: Rotary Type Drier
Movement Way: Agitation
Heating Mode: Dielectric
Operational Method: Intermittent
Operation Pressure: Atmospheric Dryer
Xinxin Industrial Co., Ltd., is a manufacture of UV part & complately UV machine, coating lineProduct scope:

1. UV transformers, UV reflector, UV capacitor, UV lamps(UVA, UVC, UVB spectrum), UV halide lamp, UV exposure Lamps

2. UV meters, UV intensity meter;
3. UV glasses for pretect eyes;
4. UV machine for silk screen curing;
5. UV painting and coating line curing system.
6. Offset printing UV curing machine.
7. Flexographic printing UV installation machine.
8. IR OVRN for dry painting, coating, printing.

XinXIN INDUSTRIAL Co., Ltd gathered 8designers with over 5 years experiences in UV curing field.

Manufacture Equipments device: Two set of bending machine; Two set of plate shearing machine; Two set of Punch machine. Three milling machine; Three cutting machine. Four welding machines.

We could do special UV machine as your requiry. We have strong capability of design as various requiry, depending on the product we supply you the best UV equipment with lowest cost.

Customer satisfaction is our eternal pursuit, credit management, system to make high-quality equipment to meet the needs of various sectors, while striving for innovation and progress were to achieve a win-win.

Our hot HEART Makes from Honesty, Efficiency, Active, Responsibility, Team work;
