A professional LED panel light manufacturer and supplier, and an outstanding led panel light designer -- Mucheng led Lighting
LED panel / LED panel light / LED panel lamp / LED panel lights / LED panels / LED panel ceiling / 600x600 LED panel / RGB LED panel

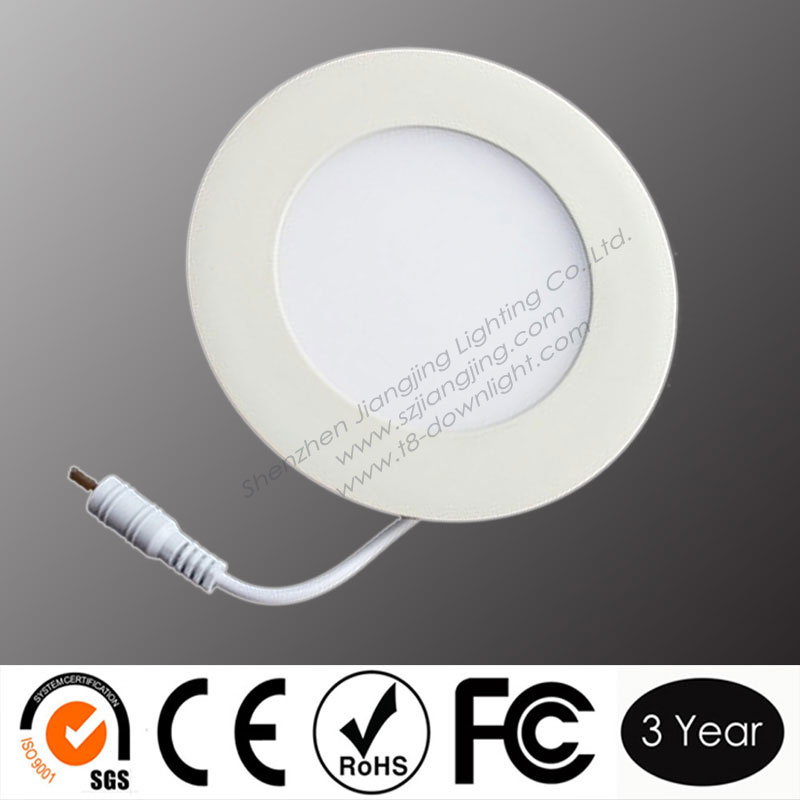

SMD2835 LED Ceiling Light
This is a kind of ultra-thin LED Ceiling Lightwhich is very high cost-effective and practical.
The light source SMD2835 with high luminous flux up to 21Lm~23Lm and it is ultra high efficiency reach 90~100Lm/W. And the power is 0.2W/PCS. All this makes this ceiling lights with the feature of high brightness and small size.
The input line of the lamp plus fixed clamp, is not easy to fall off
Specific stainless steel spring, no rust, not easy to deformation, high elasticity, high safety
Flat stainless steel screw, parallel with the back of the lamp
Parameters:
Power: 12W
Size: Diameter 170mm, hole size: 150mm
Light source: SMD2835
LED Q'TY: 60PCS
Liuminous flux: 860Lm
Power factor>0.9
Voltage: AC85~265V
Emitting color: White/ warm white
Application:
Airport, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Material: Acrylic, Aluminum, Aluminum Die Casting, PMMA, Silicone, Stainless Steel
Construction
1. Using high lumen SMD light source high intensity aluminum shell, heat faster.
2. Using good reflectivity light leading board, it is thinner and brighter, the light is more equally.
3. Low voltage and constant current driver, no glare, the light is soft.
4. Launch in 0.01sec, no flashing, no noise, no radiation. Energy saving, belongs to grand environmental light.
5. This product can show high brightness, without seeing the lamp itself.
CAUTION:
1. Confirm the goods have no damaged during the transportation before using.
2. Packing materials should be stayed away from children, prevent children from playing the plastic bag and small accessories lead to suffocate or swallowed.
3. Put away from the children, do not let the children touch the lamp when it is working.
4. Don't cover any things on the products. Put away from the fire or high temperature object.
5. Laypeople can not tear down or maintain the product. We have the authority to refuse giving any warranty to the products which are repaired without our instruction.
Please shut off the power before clean the lamps. Only use the dry dish cloth to clean. Don't use any chemical or corrosive material to clean the lamps.
1. Assemble the circlip. 2. Put the lamp into the cut hole.
|
JJ-PL3W-R90-P-WW |
3W |
AC 85-265V 50/60Hz |
φ90*21mm |
15Pcs*0.2W SMD 2835 |
>0.75 |
75lm/W |
3000-3500K |
|
JJ-PL3W-R90-P-WW |
4000-4500K |
|
JJ-PL3W-R90-P-WW |
6000-6500K |
|
JJ-PL4W-R110-P-WW |
4W |
AC 85-265V 50/60Hz |
φ110*21mm |
20Pcs*0.2W SMD 2835 |
>0.75 |
75lm/W |
3000-3500K |
|
JJ-PL4W-R110-P-PW |
4000-4500K |
|
JJ-PL4W-R110-P-CW |
6000-6500K |
|
JJ-PL9W-R150-P-WW |
9W |
AC 85-265V 50/60Hz |
φ150*21mm |
45Pcs*0.2W SMD 2835 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL9W-R150-P-PW |
4000-4500K |
|
JJ-PL9W-R150-P-CW |
6000-6500K |
|
JJ-PL12W-R170-P-WW |
12W |
AC 85-265V 50/60Hz |
φ170*21mm |
60Pcs*0.2W SMD 2835 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL12W-R170-P-PW |
4000-4500K |
|
JJ-PL12W-R170-P-CW |
6000-6500K |
|
JJ-PL15W-R195-P-WW |
15W |
AC 85-265V 50/60Hz |
φ195*21mm |
75Pcs*0.2W SMD 3014 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL15W-R195-P-PW |
4000-4500K |
|
JJ-PL15W-R195-P-CW |
6000-6500K |
|
JJ-PL18W-R225-P-WW |
18W |
AC 85-265V 50/60Hz |
φ225*21mm |
90Pcs*0.2W SMD 3014 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL18W-R225-P-PW |
4000-4500K |
|
JJ-PL18W-R225-P-CW |
6000-6500K |
