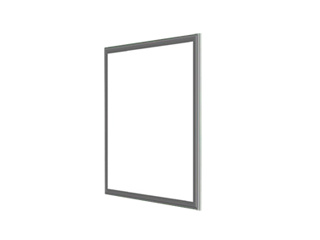

Ultra Slim SMD 3014 LED Flat 150*150 8W Ceiling Panel Light

Ultra Slim SMD 3014 LED flat ceiling panel light 150*150(mm) 8W

Features of the LED panel light:

*energy saved up to 50%. High intensity
*over 5-years life span
*special different view angles, mixing lighting design
*instant start, no flickering, no humming
*new inner high efficiency (95%) with heat protection system, the constant current driver can work under unstable voltage.
*special circuit design, each LED can work separately thus it can avoid the influnence that a broken LED causes.
*no electric wave.
*no such hazard that mercury or lead enters the environment
*no RF interference
*the brightness and color temperature are all adjustable by dimmer
*lighting more equably, more softly.
Applications
Corridor lights, architectural point of light, windows gallery lighting. Furniture, lighting, commercial lighting, museums, exhibition lighting. Lighting projects, banks, hotels, schools, bookstores, sports and other lighting
Attentions:

Please always use the light out of its package.
Before starting use of the light, please check if the light was damaged during transportation, if any damage shown, please do not install or use it.
Any maintenance should be performed by trained professionals only.
Don't cover the light by other objects

Trade terms:
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before shipment.
2. Production lead time: For 100~500PCS: 20 working days, 500~1000PCS: 25 working day
3. Sample can be delivered in 7-15 working days
4. Discounts are offered based on order quantities
Installation ways:
1. Mounted on the wall
2. Suspending
3. Ceiling recessed

Technical data
Type of product	8W led panel light
LED No.	YDL-PL8W-150*150mm
Input Voltage	AC85-265V   50/60Hz
LED quantity	84pcs 3014SMD LEDs
Frequancy	50/60Hz
Power	8W
Lumen	400lm
View Angle	120°
PF	>0.95
CRI	>80
Clor temperature	2800-3500(WW)
	3500-5500(Daylight White)
	5500-6500(CW)
Material	Aluminum+Acrylic
Lifespan	30-50K hours
Operating temperature	-20-45°C
Storage temperature	-20-85°C
IP Code	41
Dimmable Ways	manual dimming, IR dimming, RF dimming
Packaging Detail	Carton Size :330*330*85mm(1PC/ctn)
