LED Panel Lights
Ultra-thin LED Panel Lights, There are a variety of reasons why we all should be using LEDs as alternatives to the standard lights used in our houses, offices, hotels, retail, clubs & decorative environments for both indoor and outdoors use. Look around and you will quickly find that the inefficient, high maintenance light sources, including filament, fluorescent, halogen & neon are still used in abundance. You can change this now and begin making serious energy cost savings by using xLedLight's LED lighting systems. We have so many dimension size of LED panel lights for your choose.
Product Description

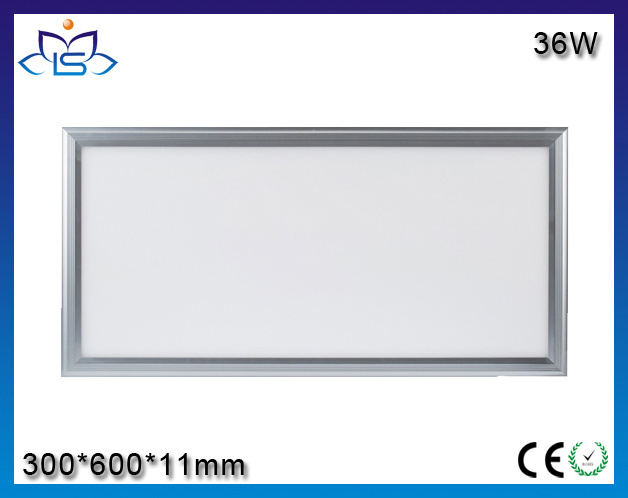

600*300*11mm/12.5mm LED Panel Light(595X295X11mm/12.5mm)
A. Voltage AC100-277V
B. Baseboard Heat Dissipation Structure
C. Wattage 18W/36W
B. TUV, CB, CE, GS, RoHS, PSE;
E. 3 Years Warranty
Products Character:
A: SMD5630 with Epistar chips adopted, energy saving up to 50%;
B: MOSO CE external constant-current driver adopted, with power factor over 0.95;
C: Baseboard heat dissipation structure, long life span, normal use can reach over 50, 000hours;
D: Diversified installation methods can meet customers requirments.
E: Two difference frames for your options.
Trade terms:
A, Payment: T/T or L/C
B, MOQ: 100PCS(1-10 samples can be acceptable)
C, Logo: According to your need
D, EXW or FOB SZ(depends on order quantity).
| Name | IS PANEL LIGHT |
| Lighting Source | SMD5630 |
| LED Chip Brand | Samsung/Seoul/Epistar |
| LED Quantity | 60/120pcs |
| Driver Brand | UL External Constant-Current Driver |
| Power Consumption | 18W/36W |
| Input Voltage | AC100-277V |
| Working Voltage | 30-42V |
| Constant Current | 450MA/900MA |
| LED Luminous Efficiency | 70+5lm/w |
| Power Factor | >0.95 |
| LED Life Expectancy | 50000hours |
| Beam Angle | 120° |
| Luminous Flux | 1400±200lm/2700±200lm |
| Color Temperature | WW/NW/CW |
| Protection Grade(IP) | IP20 |
| Color Rendering Index(Ra) | >80 |
| Temperature Rising | Pass according to En60598 |
| Operation Temperature | -10°~40° |
| Relative Humidity | Pass according to En60598 |
| Fixture Material | Junction Box, Hanglig Cable, Screws |
| Cover Brand | Al 6063 |
| Housing Color | Silver/White |
| Dimension/Size | 300x600x11mm/12.5mm |
| Net Weight | 2Kg |
| Shock Test | 0.35-0.5Nm |
| Insulation Class | ClassII |
| Certification | TUV/CE/FCC/PSE/RoHS |
| Warranty | 3years |
| Frame option | 600*300*11mm/600*300*12.5mm |
"IS Lighting" is a factory Doing OEM, ODM with 200-300 workers since 2009, we specilized in LED panel, LED tube, LED bulb, LED spotlight, LED PAR light, LED downlight, LED track light, LED cornlight, LED floodlight and LED high-bay etc with UL, cUL, DLC, RCM, TUV-SUD CB, GS, CE RoHS.
We have grown based on a global resource for Korea, Europe market, Amercia Market to a specialty manufacturer for world class projectors, designers, developers, trading companies and wholeselers who specify our products for everything from retail stores and warehouse to high-rise hotels, chain restaurants, private homes, specialty museums, buildings and office.
Our products have always been known for quality, reliability and solid
Performance, making IS Lighting the most specified brand in the lighting business.
The mission of IS Lighting is to be the leading provider of innovative, high quality lighting to commercial, municipal and utility markets.
Our goal, like yours, has always been the same: "Doing a fruitful business"
We are a partner who is trustworthy.
Do remember we are producing "a valuable product" instead of "a top-end quality with highest price or a cheapest price with low quality product for the globle market.
Let's move forward together! ! !
We Are Your LED Lighting Supplier.
Wir sind Ihre LED Beleuchte Liferant
Nous sommes des fournisseurs d'é Clairage LED
