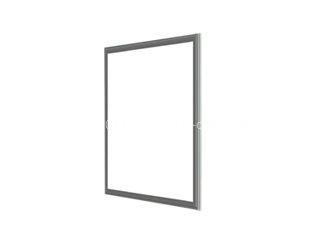

Ultra Slim SMD LED panel light 200*200 mm 12W (120PCS 3014 SMD)
Features of the LED panel light:
*energy saved up to 50%. High intensity
*over 5-years life span
*special different view angles, mixing lighting design
*instant start, no flickering, no humming
*new inner high efficiency (95%) with heat protection system, the constant current driver can work under unstable voltage.
*special circuit design, each LED can work separately thus it can avoid the influnence that a broken LED causes.
*no electric wave.
*no such hazard that mercury or lead enters the environment
*no RF interference
*the brightness and color temperature are all adjustable by dimmer
*lighting more equably, more softly.
Applications
Corridor lights, architectural point of light, windows gallery lighting. Furniture, lighting, commercial lighting, museums, exhibition lighting. Lighting projects, banks, hotels, schools, bookstores, sports and other lighting
Attentions:
Please always use the light out of its package.
Before starting use of the light, please check if the light was damaged during transportation, if any damage shown, please do not install or use it.
Any maintenance should be performed by trained professionals only.
Don't cover the light by other objects
Trade terms:
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before shipment.
2. Production lead time: For 100~500PCS: 20 working days, 500~1000PCS: 25 working day
3. Sample can be delivered in 7-15 working days
4. Discounts are offered based on order quantities
Installation ways:
1. Mounted on the wall
2. Suspending
3. Ceiling recessed
Technical data |
Type of product |
12W led panel light |
LED No. |
YDL-PL12W-200*200mm |
Input Voltage |
AC85-265V 50/60Hz |
LED quantity |
120pcs 3014SMD LEDs |
Frequancy |
50/60Hz |
Power |
36W |
Lumen |
750lm |
View Angle |
120° |
PF |
>0.95 |
CRI |
>80 |
Clor temperature |
2800-3500(WW) |
3500-5500(Daylight White) |
5500-6500(CW) |
Material |
Aluminum+Acrylic |
Lifespan |
30-50K hours |
Operating temperature |
-20-45°C |
Storage temperature |
-20-85°C |
IP Code |
41 |
Dimmable Ways |
manual dimming, IR dimming, RF dimming |
Packaging Detail |
Carton Size :330*330*85mm(1PC/ctn) |
