Home LED Light Products UL/SAA LED Outdoor Road Light with 5 Years Warranty

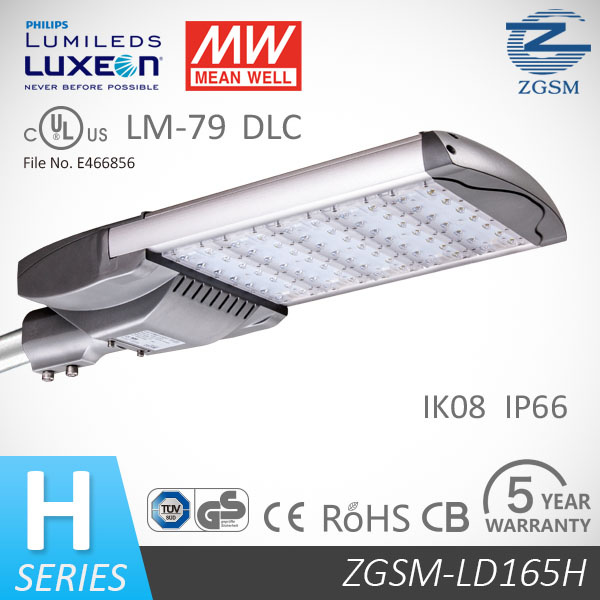

UL/SAA LED Outdoor Road Light with 5 Years Warranty

UL/SAA LED Outdoor Road Light with 5 Years Warranty
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union
Competitive Advantage:


1. PHILIPS LUXEON T luminous source with LM-80 report.
2. High Reliable MEANWELL HLG driver with 5 Years Warranty.
3. Over then 67,000 hours operation lifetime.
4. Have TypeI, TypeII and TypeIII, Typev four Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. Have horizontal and vertical two installation choose, and also has 0-15° adjustable function for each installation direction.
7. Have UL, DLC, ROHS, CE, GS, CB , SAA certificated.
8. Patent product with 7 patent certificates.
9. 5 years Warranty

Specifications
ModelZGSM-LD165H
LED BrandPHILIPS LUXEON® T
Driver BrandMeanwell HLG series
Norminal Wattage165W
LED Module Quantity4 modules
Input Voltage100-240V, 277V, 347V, 480V AC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>110lm/w
Lamp Rated Lumen output18150 lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature4000 5000 or 5700K
Photometric TypeType I Medium;Type II Medium;Type III Medium; TypeV,Short
Optimal Operating Temperature25°
Storage Temperatures-40°C~50°C
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 67000 hours -L70, @25 ºC (77 ºF)
Wind IndexForce 12
Body and Shell MaterialsAnodized Aluminum
IP RatingIP66 with test report
IK RatingIK08 with test report
CertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79
Optional Function1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty5 years


Packing Details
Fixture Dimension650x316 x136 mm
Fixture Weight8.2 kg /18.1 lbs
Packing Dimension705 x370 x200 mm
Packing Weight9.6 kg /21.2 lbs

[Warranty]
5 years Since the date of purchase.
Prod Model: ZGSM-LD165H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Wattage: 165W
Ik: Ik08
Warranty: 5 Years
Power Factor (PF): >0.9
Driver Efficiency: >90%
Fixture Dimension: 650X316 X136 Mm
Fixture Weight: 8.2 Kg /18.1 Lbs
Packing Dimension: 705 X370 X200 Mm
Packing Weight: 9.6 Kg /21.2 Lbs
Power Supply: AC
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
Application: Parking Lot
IP Rating: IP66
Certification: Dlc,CB
With Light Source: With Light Source
LED Chips Brand: Philips Lumileds
Power: 35W-230W
Input Voltage: 100-240V/270V
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.

Company Information

Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.

ZGSM Research

ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.

Customer and Partner Experience

ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.

Our Values

Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
