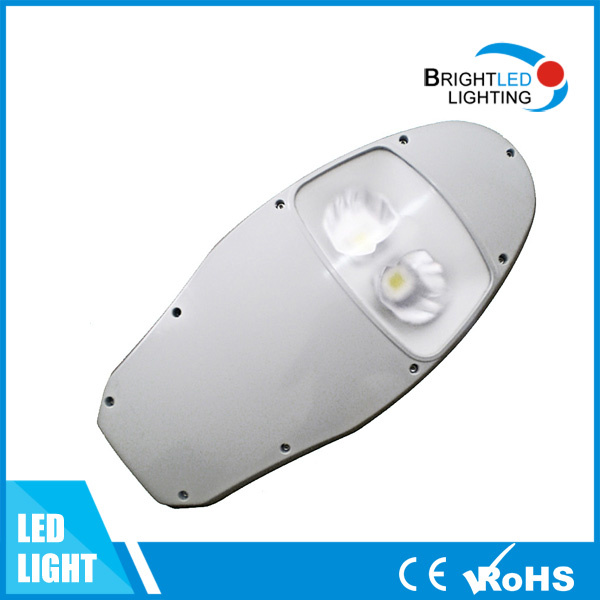

LED Street Light/IP65 LED Street Lighting/High Power LED Street Light
Type: BL-SL760-100W/120W/140W
Light source: Bridgelux LED
Input voltage: AC(85V~265V) DC(12V 24V)
Output voltage: 25V~36V
Power factor(PF): >0.9
Power: 100W/120W/140W
Light efficiency: >80lm/w
Color temperature(CCT): 2700-7000K
View angle: 140°
Work temperature: -30~50celsius
Work humidity: 10%~95%RH
Life time: >50000Hrs
Case body and lampshade: Aluminium alloy and toughened glass
Dimension of the product(L * W * H): 750*340*170 mm
Quantity (PCS): 1PCS in a carton
Net weight: 9.5 Kg
IP grade: IP65
Features of led street lights:
1. The steel screw used will not rust even a little.
2. We compose our products with epoxy powder paint,which is resistant to corrosion.
3. Good quality anodised aluminium reflector.
4. Multiple colors for choice: black or grey.
5. LED driver are all of high efficiency and power factor.
6. Die casting aluminum housing and high intensity toughened glass cover is used to make our products strong
7. Weatherproof and durable silicon rubber sealing gasket.
8. Start instantly, no flicker, saves much more energy.
9. Designed to be high bright LED chip and ideal heat dissipation
Installation Instruction
1. When open the package, please check whether the inside is including product,accessory,
label, certificate quality. And please assure that the light is perfect without any damage.
2. This led street light product is applicable for wide voltage AC power supply network, environmental temperature is around -40°C~55°C.
3. The wires of LED Street Light is three-core, the standard size of the wire is 3*0.75mm²or 3*1mm², brown wire is live line, blue wire is null line,
4. Open the crust of the street light and open underprop. Connect cables of street light. Pay attention to the notes of connection. Cable connection should be distinguished zero wire N, ground wire, live wire. Set sealed circle onto bracket tube of light pole. Please note to set it on an even keel and fix with bolt. The largest buckle stainless clasper. Don't press light wires.
5. During installation please first to fix the street lights on poles through installation brackets. lf power supply is DC drived, red cable of street light for anode, White cable for cathode.
6. If power supply is AC/DC drived, colored cable of street lights should be connected with ground (having nameplate with ground). Connecting power supply after checking, led street light can work.
type | LED power | pole height | distance between two poles | illuminance(lux) | uniformity |
| center | average | 0.4 |
| BL-SL760 | 100W | 7m | 21m ~28m | 56 | 22.5 |
| 8m | 24m ~32m | 43 | 20 |
| 9m | 27m ~36m | 35 | 18 |
| 10m | 30m ~40m | 26 | 15 |
| 120W | 7m | 21m ~28m | 64 | 24 |
| 8m | 24m ~32m | 46 | 22 |
| 9m | 27m ~36m | 40 | 20 |
| 10m | 30m ~40m | 32 | 18 |
| 140W | 8m | 24m ~32m | 54 | 28 |
| 9m | 27m ~36m | 46 | 25 |
| 10m | 30m ~40m | 38 | 22 |
| 11m | 35m ~45m | 30 | 20 |
Why Choose Brightled Lighting
1. Competitive price and relatively high quality.
2. On time delivery
3. Great after service
4. Fast response to the inquiries.
5. Samples is available.
6. More than 10 years LED manufacturing experience.
Our advangages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our promise for clients:
1. Just provide good quality products.
2. Make sure to give you the most favorable prices.
3. Provide 3 years warranty.
4. Have long term cooperation with our forwarder, so we can provide you the lowest f reight and the fastest service.
5. Have professional engineers to design and develop new led
lights according to your requirements.
6. Design the colored boxes for you when you have larger quantity.
7. Can use your logo and label on our products.
8. Your inquiry will be replied in 10 hours
Our serveice:
1) Your inquiry will be replied in 24 hours
2) Well-trained and experienced staffs to answer all your inquires in fluent English
3) Protect your sales area, ideas of design and all your private information
FAQ:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available.
Q2: Do you have any MOQ limited?
A: Our MOQ: 1M for white jacket , 50M for colorful jacket
Q3: What's the lead time?
A: Sample :2-3 days.
Mass production: 15-20 days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5 days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?A: Yes, we offer three years guarantee for the products.
Q6: Do you accept OEM?
A: We have our own brand-Unidax. OEM is also acceptable.
Brightled Lighting Technology Co., Limited, is a national high-tech enterprise of energy saving, focusing on design, R&D, production, export and technical support of LED light source and products.
Brightled Lighting not only has an excellent R&D team and management team, but also has strategic cooperation with experts, consultants, etc in the LED lighting field. Through 11 years development, Brightled Lighting owns core technology and experiences in LED Lighting products development, optical design, mould development, etc. We have developed many series of LED lighting products, including Series universal for both Outdoor and Indoor application, Series for Project and Landscape lighting, Series for Indoor Decoration, Series for Power LED lighting. Most of our products have gained CE, UL, RoHS certificates and so on.
"High quality products and best service" is the first article of our company core values. We regard it as our mission to provide high quality products with the best service at a most reasonable price in the industry and to deal with customers in an honest and responsible manner.
Bright LED Change life Bright.
