UL DLC Industrial Lighting 100w LED High Bay Light

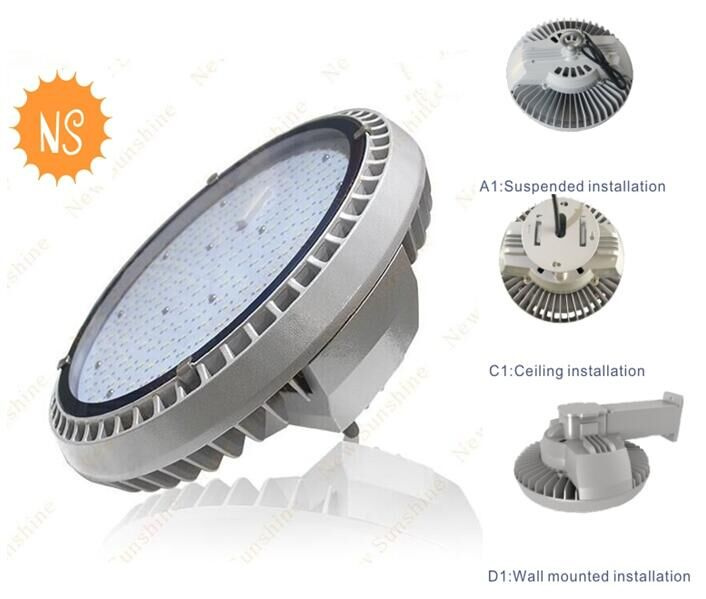

New Sunshine High bay is a great replacement for traditional high bay lighting. Super efficient 120 Lm/w light engine provides exceptional performance with an incredible 50,000 hour rated life. Simple hook, ceiling and wall mounted installation makes installation easy and cost effective.
Basic info.
Luminous Flux:12000Lm Beam angle:15/30/60/90/120 degree
LED source: Original Osram 3030 Luminous efficiency:120lm/w
IP Rating: IP65 Input voltage: 100-277VAC
Warranty:5 years
Color temperature: Design: Integrated Heat-Sinking Design
1)Warm white: 3000~3500K
2)Neutral white: 4000~4500K
3)Cool white: 6000-6500K
Replacement:250W HID MHL directly Life span:50000 hours
HB led light Series Specification:
| 30W | 60W | 100W | 150W | 200W |
| Item | NS-HB252-30W | NS-HB252-60W | NS-HB342-100W | NS-HB342-150W | NS-HB342-200W |
| Led source | Osram | Osram | Osram | Osram | Osram |
| IP grate | IP65 | IP65 | IP65 | IP65 | IP65 |
| Valtage | AC100-277V | AC100-277V | AC100-277V | AC100-277V | AC100-277V |
| CCT(K) | 2600~7000 | 2600~7000 | 2600~7000 | 2600~7000 | 2600~7000 |
| Lumen(LM) | 3000~3600 | 6000~7200 | 10000~12000 | 15000~18000 | 20000~24000 |
| CRI | >70 | >70 | >70 | >70 | >70 |
| Net Weight | 4kg | 4kg | 6kg | 6kg | 6kg |
| Size(L*W*H) | dia 9.92*7inch | dia 9.92*7inch | dia 13.5*7.63 inch | dia 13.5*7.63 inch | dia 13.5*7.63 inch |
| Equivalent | 100W MHL/HPS | 175W MHL/HPS | 300W MHL/HPS | 400W MHL/HPS | 600W MHL/HPS |
| Certificate | UL,DLC | UL,DLC | UL,DLC | UL,DLC | UL,DLC |
| Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
| Warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty | 5 years warranty |
| Operating Tep | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) | (-68-122ºF) |
HB led light Features:
1. 1Long-life span with 50,000Hrs.More than 50 times of tranditional tungsten flilament lamp
2. LED High Bay Light overturns luminescence properties of the tranditional light source, with its light weight, small volume, green environmental protection. .Do not contain lead, mercury and other pollution elements, no pollution to the environment.Also Impact resistance, and have strong anti-thunder, no ultraviolet radiation (UV) and infrared (IR).
3. This product adopts the micro group of composite phase change of high power LED light source radiator trough, superconducting heat capacity, strong cooling capacity, cooling power consumption, low cost and high reliability.
4. Working under low voltage heat, safe and reliable.When the surface temperature ≤50 ºC (ambient temperature Ta = 25 ºC pm);Wide voltage range, universal.The full voltage range constant current between 100 v to 277 VAC, to ensure the life and brightness is not affected by voltage fluctuation.
5. Reduce the line loss, pollution-free for grid.Power factor ≥0.9. harmonic distortion ≤20%, or less.The EMI in line with the global index, reduced the energy loss of the power supply line and avoid the pollution of high frequency interference to power grid.
6. Light distribution technology makes LED light source into surface light source, increasing the light area, eliminate the glare, sublimation visual effect, eliminate visual fatigue;
7. Products are suitable for factory workshop, station, large warehouses, toll station, gas stations, exhibition hall, gymnasium, industrial and mining areas, and other higher requirements of half- outdoor and indoor places.
8. We are pursuit of safe and reliable products, perfect design, durable.
Wide range of application: Factory, Warehouse , Stadium, Gymnasium, Airport, Subway, etc.
Our service:
1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lightings can be designed and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protect your sales area, ideas of design and all your private information.
Trade Terms:
1. Payment: T/T ,Western union ,paypal
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
Notice:
1. Make sure To Remove Or Bypass The Electronic Ballast In The Fixture Before Install LED Filament bulbs
2. Make Sure To Cut Off The Power Before Install
3. 8W led filament light could use in the unventilated fixture in enough space
4. Suitable for dimmers or electronic switches or remote control.
