Technical Parameters:Light source: Sumsung or Epistar
Dimmerable:0-100%
Beam Angle: >110°
Driver brand: Moso or Meanwell
LED Luminous Efficiency: 85±5lm/w
Size: 603×603×11mm
Operation Temperature: -10ºC to +40ºC
Storage Temperature: -20ºC to +60ºC
Certifications: CE and RoHs
IK Code: IK04 IP Code: IP44

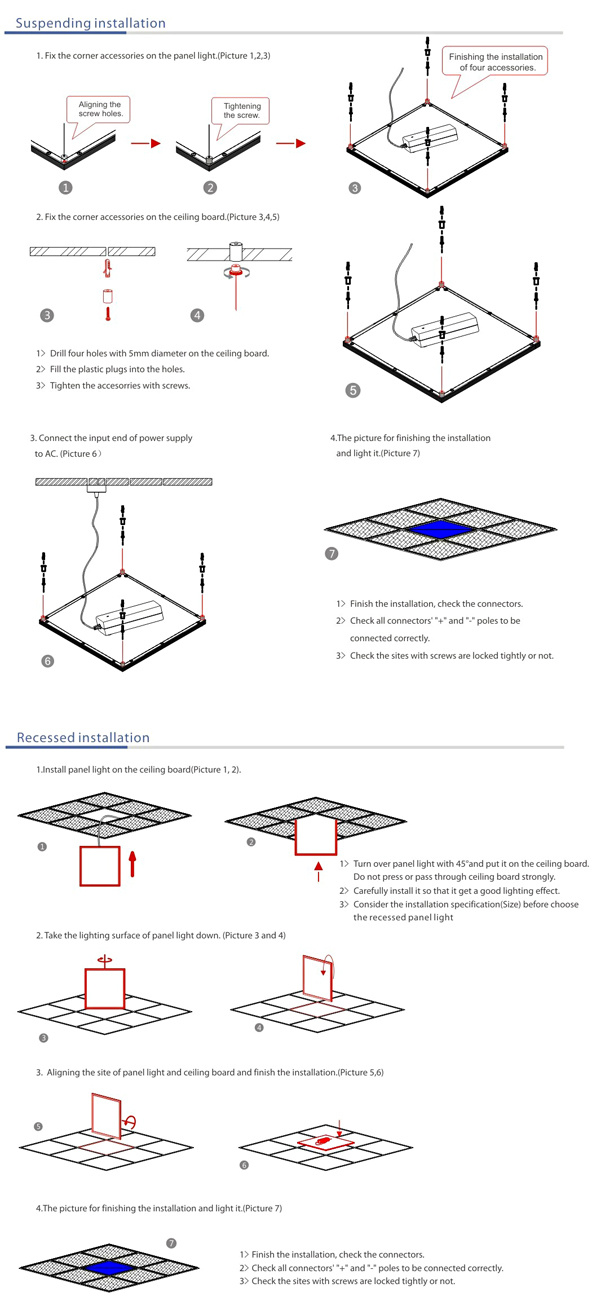

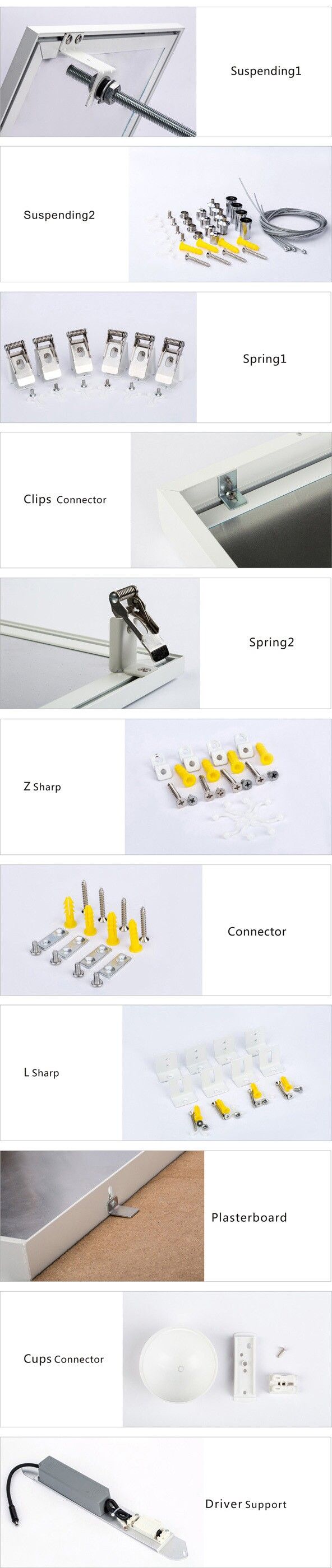

Fixing Ways: In-built, Mounting and Suspending
Features and Benefits:Energy saved up to 50%, High brightness, Even lighting output.
Wide range of input voltage: AC100-240V
Five years long life
No electrical wave, conforming to CE
Application:Conference/Meeting rooms, Hotels, Factories & Offices, Commercial Purposes, Residential & Institution Buildings, Schools, Colleges &Universities, Hospitals, etc.Part Number | Emitting Color | Warranty (years) | CRI | LED Quantity | Voltage(V) | Power(W ) | Current (MA) | Lumen (PCS) |
ZL-PL0606SX36W-S10 | WW/W | 3 | 80 | 120 | 100-240V | 36 | 840MA | 3000±200 |
ZL-PL0606SX48W-S10 | WW/W | 3 | 80 | 120 | 100-240V | 48 | 1100MA | 3800±200 |
ZL-PL0606SX54W-S10 | WW/W | 3 | 80 | 120 | 100-240V | 54 | 1300MA | 4200±200 |
ZL-PL0306SX72W-S10 | WW/W | 3 | 80 | 240 | 100-240V | 72 | 1680MA | 5700±200 |
We are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.
Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.
We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.
