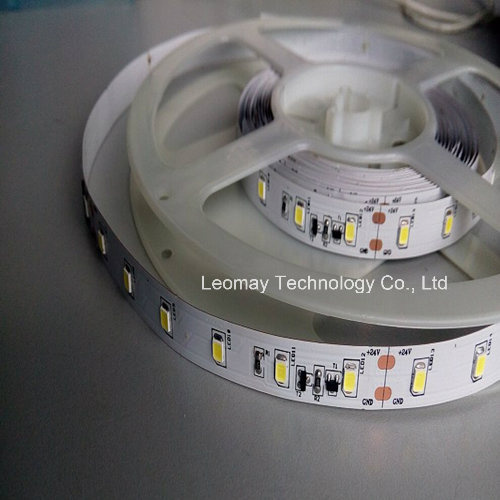

UL Approved LED constant current 2835 Strip Light
Main Specifications:
CODE: LM-HL2835-60L
Input voltage: DC24V
power: 12w/m
Light source: Epistar SMD2835 60LED/M
CRI: ≥80
Color temperature :3000K-6500K
Efficacy: 80-90lm/w
Size: 5000MM*10MM
Life: 80000 (H)
Beam angle:120°
Material:FPC White
Main Features:
1 CE, RoHS certified with high quality
2 3M Tape at backside, more easy to install
3 Epistar Led Chips with super brightness
4 24 months longer warranty time
5 Factory direct sale with most competitive price and shortest delivery lead time
Constant light with advantages:
1 high brightness consistency.
As a result of low dropout linear constant current IC, the pressure drop in a certain range, LED operating current is constant, and therefore highly consistent brightness LED module before.
2 can extend the LED lights with connection length.
Under normal circumstances, the use of linear constant current IC of light can be increased with the length of 10-20 meters, and the brightness is not dimmed.
3 can extend lamp with life.
LED constant current IC program modules, LED work in constant current state, so even if the temperature rises, LED operating current is always constant, does not appear to reduce the life of accelerated aging issues. When abnormal overheating situation, the constant current IC also has overheating protection function, automatically dimming PWM output, reduce the temperature.
4 allows the input voltage error of 20% -30%, constant current output error of ± 5%
5 to reduce the number of power use, reduce project costs, installation more convenient.
Although the use of IC solutions will increase the production cost of LED modules, but because the use of IC modules can be cascaded to increase the length of the module, thus reducing the number of power use, you can reduce the cost of the project, and the installation more convenient.
Model | LED QTY | Volt | Power | Lumen/m | CRI | PCB Width | IP Rate |
| LM3528-WN60-HL | 60 led/m | 12/24V | 4.8w/m | 360lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM2835-WN36-HL | 36led/m | 24V | 7.2w/m | 864lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM2835-WN60-HL | 60 led/m | 24V | 12w/m | 1440lm/m | 80 | 12mm | IP20/IP65/IP67/IP68 |
| LM5050-WN30-HL | 30led/m | 12V | 7.2w/m | 600lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
| LM5050-WN60-HL | 60 led/m | 12/24V | 14.4w/m | 1200lm/m | 80 | 10mm | IP20/IP65/IP67/IP68 |
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
