Detailed description
LEDs: SMD 2835 high luminance, 90 pcs/m.
LGP: nano light guide plate from 100% virgin acrylic or optical Polystyrene.
Brightness uniformity: >75%.
Maxim lighting width: 1500mm.
Life expectany: 10 years.

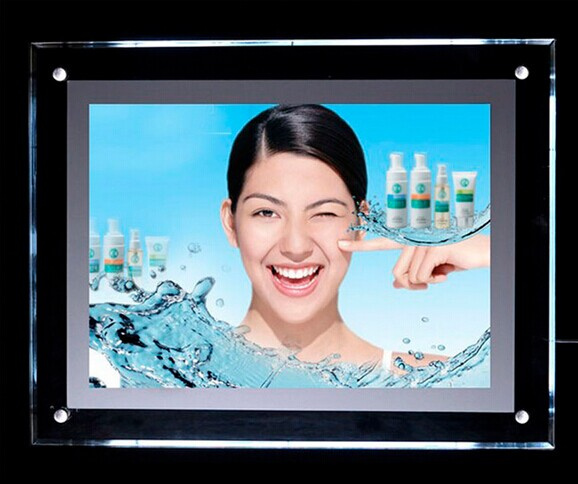

1. The lightbox adopts side-guide lighting design, using newest optic quality acrylic panel, which distributes light evenly
2. World class 5730 TV backlit LED lights as light source, high brightness and low power consumption.
3. LGP is adopted 3D laser engraving technology, which longer life span and distributes lighting evenly.
4. Use high quality LED light source with effective protection on image which avoid yellowing with age and getting longer life span.
Model | Frame Size ( mm ) | Picture Size (mm) | Visible Size ( mm ) | Thickness | Weight (KG) | Power |
A0 | 1249*901 | 1204*856 | 1189*841 | Thickness15MM Cover Width 30MM | 15 |
|
A1 | 901*654 | 856*614 | 841*594 | 8 |
|
A2 | 654*480 | 614*440 | 594*420 | 6.8 |
|
A3 | 480*357 | 440*317 | 420*297 | 2.8 |
|
A4 | 357*270 | 317*230 | 297*210 | 2.1 |
|
