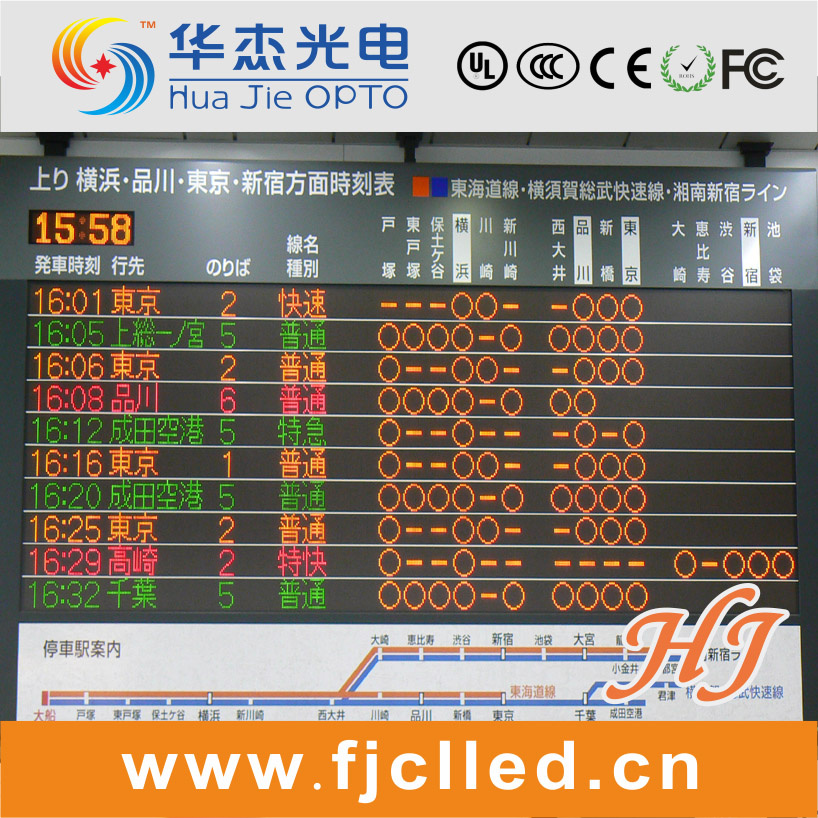

Tran Station Double Color Indoor LED Display

Tran Station Double Color Indoor LED Display
Price: US $ 615/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5/Square Meter
Pay Type: L/C,T/T,Western Union
FUJIAN HUAJIE OPTOELECTRONIC CO., LTD

Previous name Channel Cailiang (Zhangzhou) Optoelectronics Co., Ltd, with a register capital 30 million RMB. Production base covers 53, 000sqm standard workshop, is equipped with several advanced automatic assembly lines that supported by more than 1200 skilled workers including 12% engineers and technician. Factory offers low cost high performance led displays, led modules, led screens amount to 250, 000sqm per month.

1. Fully Automatic Production Lines
Channel Cailiang owns the entire LED display manufacturing line, encapsulate original Semiconductor to LED chip, then assemble to led display lighting products.

2. Advanced Production Equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP led, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.

3. Many Certificates Approved
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 certified

4. Strong R&D Team
Huajie Opto absorbs more than 1200 skilled staffs, and including about 150 engineers and technician, which paves the way for R&D for new products and excellent sales service!

More Details About Channel Cailiang Indoor P5 Full Color LED Display:
Φ 3.75  Double  Color  Indoor  Module
Item Unit Parameter
Pixel  Pitch mm 4.75
Resolution  of  Module dots  64× 32
Module  Size mm 304× 152
Module  Weight kg 0.48
LED  Type                                                    8× 8  Array  module
Pixel  Configuration                                         1R1G
Chip  Brand  of  LEDs                                           Silan/Epistar/Cree/Nichia
Pixel  Density dots/sqm 44, 321
Brightness  (White  Balance) nits(cd/sq. m) 500
Red  Wavelength nm 620-625
Green  Wavelength nm 520-525
Blue  Wavelength nm 470-475
Scan  Mode                                                       1/16  Scan
Viewing  Distance    M 2--15
  Best  View  Distance M 5--8
Viewing  Angle-Horizontal deg. 120
Viewing  Angle-Vertical deg. 120
Module  Maximum  Power W 33.4
Max.   Power  Consumption W/sq. m 700
Avg.   Power    Consumption W/sq. m 200
Working  Voltage                                                     40A  5V
Power  Supply                                                     AC  110/220V
Refresh  Rate Hz/S ≥ 300
Frame  Rate Hz/S ≥   60
Gray  Scale                                                       256  grade
Display  Function                                               Text
Input  Signal                                     RS232/485,   USB, Ethernet
Luminance  Degradation  Less  than  5%  after  1000  hours  Ageing  test,   testing  current  30mA,   under  normal  temperature  25  degree.
Defective  Dot  Rate                                                         < 0.0001
Life  Span hours 100, 000
MTBF hours > 5, 000
Storage  Temperature degree   -35  --  +80
Working  Temperature degree                   -20  --  +60
Working  Humidity                                                             10-90%RH
Control  System Asynchronization  or  Synchronization
Quality  Certificate ETL, CE, RoHS, TUV, FCC  class  A, ISO9001: 2008
Warrenty 2  Years
Working  Environment Indoor
Note:   The  above  parameter  is  just  for  reference.   Changes  can  be  made  according  to  customers'   requirements.
Prod Model: CLP4.75RG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size: Customized
Working Temperature: -20°c -- +60°c
Humidity(Rh): 10 ~ 95%
Brightness: ≥2500nits
Best Viewing Distance: 12.5--33mm
Viewing Angle: H120°/V120°
Life Span Of LED: 100,000 Hours
Mtbf: 10,000hours
Input Signal: RF,S-Video,RGB,Rgbhv,Yuvsdi,HD-Sdi,DVI,etc
Chip Brand Of LEDs: Epistar/CREE
Tube Chip Color: Full Color
IP Rating: IP54
Pixel Configuration: 1R, 1G, 1B
Display Function: Text Display
Scanning Mode: 1/16 Scan
Certification: CCC
Average Power Consumption: 350W / m²
Pixel Pitch: 4.75
Pixel Density: 44321dots/Sqm
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.

Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.

In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.

with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.

We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.

"Channel Cailiang" Sincererly Invite your participation!
