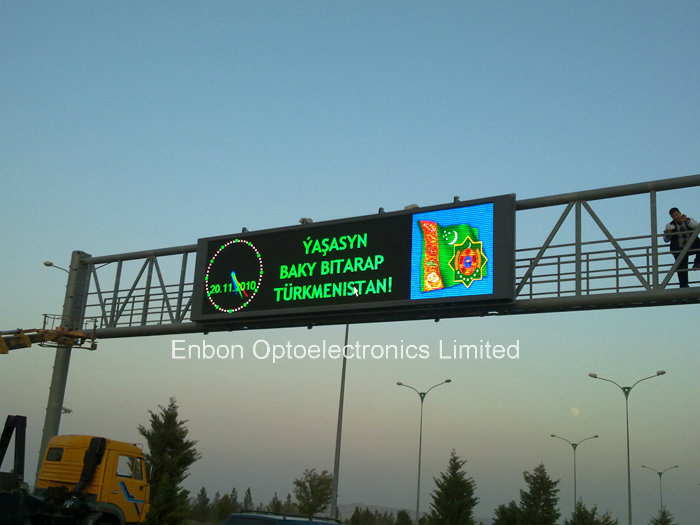

Traffic guide LED display outdoor (20*2m-double sided) is our competitive products with stable quality and afordable prices. This outdoor display is made of Epistar LED. Special PCB design makes it energy saving and the heat dissipation very good. Our cabinet is perfect for waterproof performance.
Ther features as below:
1: High brightness, over 7000nits by using Epistar big LED chip from Taiwan;
2: High color output: 16 bit color so the video, images shown on the LED screen is very fresh and vivid. It catches the eyes of more audiences, making your advertising very effient.
3. High refresh rate: Over 1500HZ/S; When you take photoes or video, no scaning lines.
4. High waterproof function: IP65 front and IP54 back. Our cabinet backdoor has special cover, no need make additional frame to protect waterproof from the rear side.
5. It has CE, FEE and CCC certificate, good for export
7. It can work under -40 degree by adopting low-temperature power supply
8. We offer 2 years warranty
9. The price is very good, please contact us for an offer. You can compare and know!
We react in 1 day, our sales will submit a good proposal based on your project, welcome to send an inquiry and visit our factory in Shenzhen, China.
SOME PICTURES SHOWING BELOW FOR YOUR REFERENCE
Technical Parameters |
PROJECT | P10 outdoor LED display for advertising |
Pixel pitch | 10mm |
Pixel density | 10000 Pixels/sqm |
Module size(W*H) | 320 W(mm) | 320 H(mm) |
Module pixels(W*H) | 32 Pixels(W) | 32 Pixels(H) |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving static scan |
LED lamp type | Epistar DIP346 |
Cabinet size(W*H*D) | 960 W(mm) | 960 H(mm) |
Cabinet resolution | 96 Pixels(W) | 96 Pixels(H) |
Color scale | 65,536 degree |
View angle(H/V) | 120/70 degree |
Brightness (White balance) | ≥7500cd/sqm. |
Power consumption(one cabinet) | Max:750W/sqm. Average:250W/sqm. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 60 Kg / M 2 for Iron cabinet |
Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
Operating humidity | 10%_95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.1mm Juncture |
Frame frequency | >60 Hz/s |
Refresh rate | ≥1500Hz /s |
Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50--60Hz |
LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
Operating system | Windows 2000 / Windows Xp / Windows 7 |
Protections for outdoor display | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
