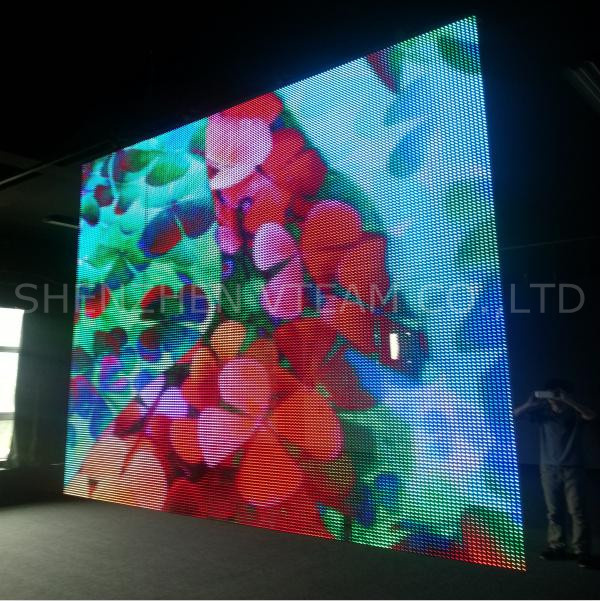

G10/12 is a kind of creative led screen with extremelyhigh transparency, achieving a brilliant visual effect.
G10/12 screen can be directly pasted on glass wallsagainst the building for advertising and decoration, aswell as been hung up for rental application as displayscreen. 1000x500mm for each panel size, only 9.5 kg
On weight for single panel, max thickness is limited in54 mm, all those unique advantages make G10/12 a
Perfect choice for creative designing company to useon large-scale applications.
Main Featurea:
1. High transparency: 50% on transparency makesthe led bulbs almost invisible above a specific distance on screen.
2. Flexible installation methods for various projects. Light-weighted for single person tools free installation, perfectly applied for mobile showsand rental applications.
3. Simple installation: G10/12 screen are directlypasted on glass wall by special glue with 10minutes for solidify. So there is no need for anychanging on building structure, very suitable forglass building advertising and decoration.
4. High light transmittance: Lights on the stage caneasily get through screens.
5. User-friendly interface on control system.
Model |
|
G 10 |
|
G 12 |
Pixel Pitch |
|
10.4 16 mm |
|
12.5mm |
LED Type |
|
RGB 3in1 SMD 3528 |
|
RGB 3in1 SMD 3528 |
Pixel density |
|
9216 dot s / s.q.m |
|
6400 dot s / s.q.m |
P ixel Matrix |
|
48 x 96 dot |
|
4 0x 8 0 dot |
Panel Size |
|
5 00x 10 00 x54 mm |
|
5 00x 10 00 x54 mm |
Weight |
|
9.5 kg |
|
9 kg |
Protection Level |
|
IP43 |
|
IP43 |
Brightness |
|
900-1500 nit |
|
900 -1500 nit |
Viewing distance |
|
≥10m |
|
≥12m |
Viewing angle (H/V) |
|
1 4 0°/1 4 0° |
|
1 4 0°/1 4 0° |
Gray Scale |
|
14bit |
|
14bit |
Color type |
|
68.7billion |
|
68.7billion |
Max . Power consumption |
|
200W /PCS |
|
15 0W /PCS |
Ave . Power consumption |
|
8 0W /PCS |
|
6 0W /PCS |
Re fresh Rate |
|
960H z |
|
1000H z |
Gamma |
|
-5.0~+5.0 |
Control system |
|
Synchronous display with control PC by DVI |
Type of signal input |
|
Composite, S-Vide, Component, VGA, DVI, HDMI, HD_SDI |
Input power |
|
AC90~260 V 50/60HZ |
Working environment |
|
T emperature -1 0 ~+5 0degree , humidity 10~9 0 % RH |
Operating Life |
|
> 50,000hours |
Certificate |
|
CE |
