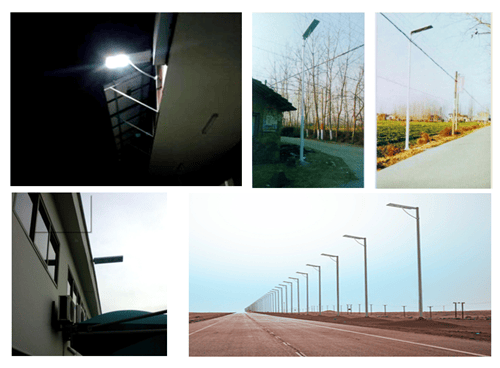

Economic self contain street lighting fixtures ready for installation right out of the box.
Each fixture can be retrofitted to an existing pole in no time.
Complete range from 5W LED to 60W LED built on the same design concept.
Key features:
* In-bulit LiFePO4 battery with minimum 5 years life
* Intelligent sensor for dusk to dawn operation
* Brightness automatically switched by charge controller management.
* 2 days battery back up proving high reliability in monsoon and cloudy weather
* Universal mounting bracket enables mounting on variety of poles
Product Code | WS-603-40W |
| LED Watt | 40 |
| LED lumen max. | 4000 |
| Solar panel (Watt) | 80W |
| Battery (AH/V) | 30AH / 12.8V LiFePO4 |
Life span
(battery cycle) | 2000 |
| Lighting mode | 12 hours / night. 30% brightness till morning, 100% brightness for 1 min when motion sensed. |
| Backup time | 24 hours |
| Housing Material | Aluminum alloy |
| PIR sensor | YES |
| Operating temp | -20°C to +60°C |
| Lamp Color temp. | 6500 K (Cool white) |
| Install height | 5-7 m |
| Pole Diam. | 70-110mm |
| Pole distance | 25 m |
| Dimensions | 1170 X 430 X 55 mm |
The easiest and the simplest form of energy that can be handled both in Micro and Macro levels is the solar energy. The other forms of energy can be made profitable only on a larger scale of working, unlike Solar. The greatest advantage of solar is the availability in abundance and the cost and risk of installation and maintenance of the products.
Solar energy refers primarily to the use of solar radiation for practical ends. Today, the energy from the sun is used for purposes like heating, cooling, lighting, transportation, and many more.
Solar technologies are broadly characterized as either passive solar or active solar; Depending on the way they capture and distribute solar energy or convert it into solar power.
Today, when we look at development, the first thing that pops into our minds is the presence of electricity. Our lights brighten at the flip of a switch; Our computers wake up with the touch of a button, our streets are powered by solar lights. Yet, over 1.5 billion people worldwide still lack electricity and nations still compete for limited energy resources.
Shenzhen Winsolar technology Co., Ltd, we choose to act.
We have the technical know-how, the scale of operations, the partnerships, and, most important, the vision to put renewable energy within reaches of everyone.
