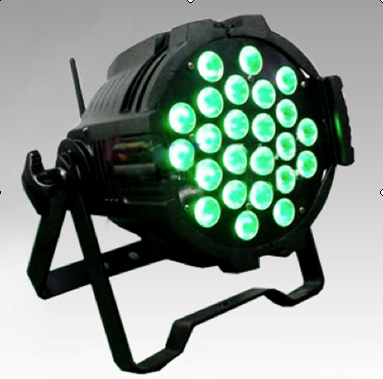

Top 24x10W 4-in-1 led stage par light(QC-LP023A)
Technical specifications:
Voltage : AC100 ~ 240V,
Power: 50/60Hz. 280W.
Triple light source : 24pcs*10w 4-in-1 Quad LEDs
LED life : 50, 000 hours.
Lens degree :15 ° 25 ° , 30 ° , 35 ° , 45 ° .
Effect of color strobe, pulse to open and close pulse, color plate, the dynamic effect.
Strobe 0 ~ 20 times / sec.
Mode :Sound Active Mode, DMX-512 Mode and Auto Mode
DMX channel: 9CH
Communication protocol: DMX-512.
Control mode :4-in-1 Quad LED
work environment temperature :-20 ~ +35.
Maximum surface temperature: 65
Size: 310*310*360mm.
Weight : 4.5kg.
Compatibility:
1. Color Range 16.7 million additive RGB colors; continuously variable intensity (256*256*256=16777216)
2. Dimming 0-100%with regulated constant color control
3. Strobe: 10 Flashed per second (any color)
4. Function: it is max mix color, color change, colors gradual change, flash, speed/luminance the adjustable, and save function
Feature:
Quad-color PAR Can uses their 4-in-1 Quad LED system for superior color mixing without the worry of single RGBW shadows.
The RGBW color mixing system is based on graduated Red, Green, Blue and White 2.5W LEDs (18 each).
A continuous range of colors may be achieved by varying the amount of intensity from 0 to 100%, and you get strobe effect too.
The Quad-color PAR is a 8 DMX channels with 6 DMX work modes, as well as sound active mode.
The cover is aluminum die-casting, artistic generosity, with excellent polishing. Digital LED display. And is rated IP 20, ideal for indoor applications.
RGBW Color Mixing
Electronic Dimming 0-100%
Master Slave, Sound Active mode, Auto mode, DMX-512 control mode.
9 DMX Channels
ChannelValue Function Instructions
CH1 0-255MASTER DIMMER 0% - 100%
CH2 0-255RED 0% - 100%
CH3 0-255GREEN 0% - 100%
CH4 0-255BLUE 0% - 100%
CH5 0-255WHITE 0% - 100%
CH6 0-255AMBER 0% - 100%
CH7 1-255STROBE, SLOW-FAST
CH8 1-255MASTER FUNCTIONS
CH9 0-255MASTER SPEED CONTROL
LED PAR light Application:
Stage LED PAR light
Disco LED PAR light
Night club LED PAR light
Theater LED PAR light
Concert LED PAR light
TV studio LED PAR light
Wedding LED PAR light
Outdoor event LED Par light
Interior LED light
School LED PAR light
Why choose Us :
1. Well-established reputation guarantees the production of the goods both in quantity and quality. We have received complimentary feedbacks for the excellent performance of our products from our customers around the world, which builds us a solid global market.
2. Customizable manufacturing according to your requirements. With our strong flexible manufacturing, we can apply your specific requirements to production. OEM&ODM service is also provided.
3. Competitive price with discounts. For any client who purchases from us, we offer as favorable price as we can, which not only makes us a competitive manufacturer, but also makes YOU a competitive seller!
You Can Count On Us:
1. LED Solution Support. With a wide range of stage lighting products and rich setting arrangement and design experience, we are able to provide lighting equipment for any occasions, stage, theatre, disco, night club, theatre, concert, TV studio, wedding, outdoor event, school, party, etc, and also provide a perfect lighting solution for your particular occasion.
2. Professional After-Sale Service. For any dysfunction reported with the product, we will get to it the first time. Free components are provided for repairing. Necessary product replacing is also provided for free.
VIva get YOUR stage lighted up !
