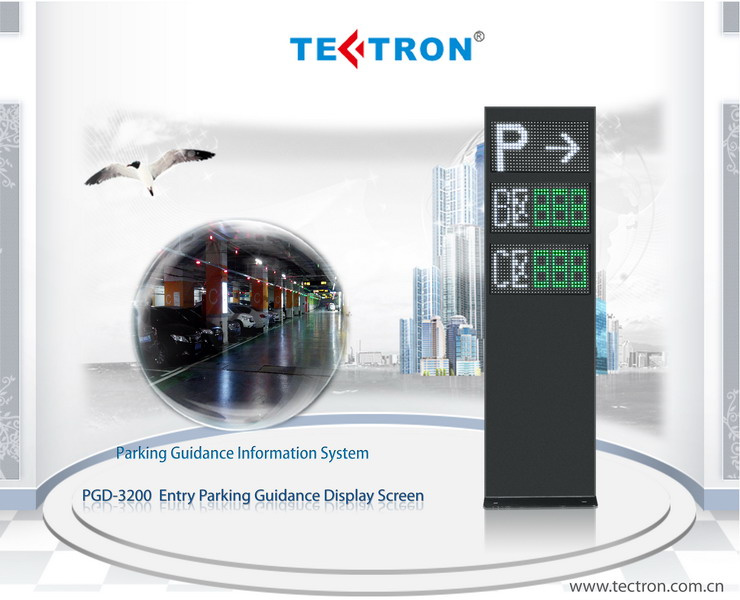

Entry Parking Guidance Display Screen PGD-3200
Product Description
1-Guidance Display Screen is the information release module of the Parking Guidance System, which placed at the parking lot entry or inside parking channel's intersection, to display information released by system of the available lots in real time, so the driver can get clear guidance.
According to the different applications, Guidance Display Screen can be divided into two types:
Entry Parking Guidance Display Screen and Hoisting Parking Guidance Display Screen.
2-The Guidance Display Screen placed at the main entry of Parking Lot, to show the drivers the available lots of each floor and avoid traffic congestion at the parking lot entry, raising the working efficiency of parking space.
Generally, Vertical Parking Guidance Display is installed at outdoor area with highlighting and clearness in sunshine.
Entry Parking Guidance Display Screen's cabinet is waterproofing and rustproof.
Feature
1- Single row display content: Partition name part is LED dot matrix(white), energy saving mode is optional.
2- Digital display part is LED dot matrix, energy mode is optional.
3- At the top of the text display part is LED dot matrix(white), energy saving mode is optional. Display "P" and "Available Lots" alternated rolling.
|
Power supply |
AC220V,10% more or less |
|
Communication port |
RS485 |
|
Power consumption |
Each display layer is about 10W |
|
Operating temperature |
-25~+65 degree |
|
LED dot matrix |
16*32,white and green dot matrix |
|
Single row display area |
400*200mm |
|
Dimension |
1600*400*130mm( Three layers display, if larger,the shell needs to be customized) |
Guangzhou Tectron Intelligent Science and Technology Co., Ltd.is Intelligent Parking Management System comprehensive solution supplier. It has been involved in the field for more than 10 years, focus on research, development and production.
Tectron and Unispark powerful combination to get better development on higher stair. Our common goal: To be the first-class parking lot intelligent management professional company, security industry No. 1.
Products categories:
Intelligent Parking Guidance System, Parking Management System and Parking Lot Location and Query System, etc.
