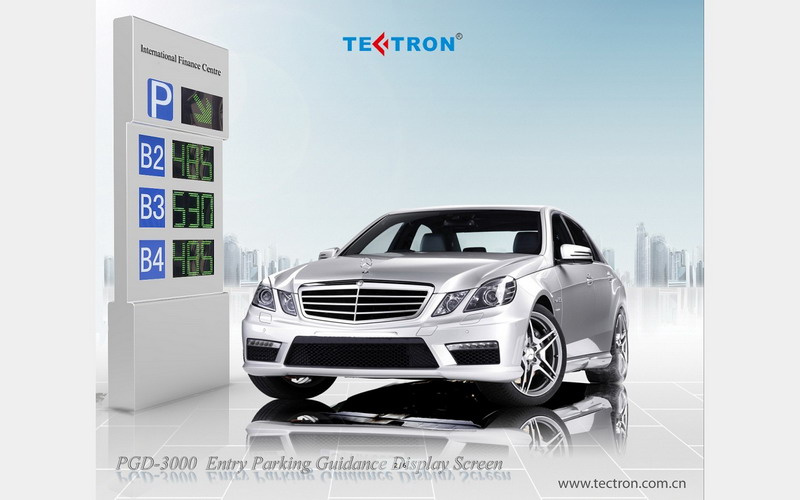

Entry Parking Guidance Display Screen PGD-3000
Product Description
1-Guidance Display Screen is the information release module of the Parking Guidance System, which placed at the parking lot entry or inside parking channel's intersection, to display information released by system of the available lots in real time, so the driver can get clear guidance.
According to the different applications, Guidance Display Screen can be divided into two types:
Entry Parking Guidance Display Screen and Hoisting Parking Guidance Display Screen.
2-The Guidance Display Screen placed at the main entry of Parking Lot, to show the drivers the available lots of each floor and avoid traffic congestion at the parking lot entry, raising the working efficiency of parking space.
Generally, Vertical Parking Guidance Display is installed at outdoor area with highlighting and clearness in sunshine.
Entry Parking Guidance Display Screen's cabinet is waterproofing and rustproof.
Feature
1- Digital display part is LED digital screen, energy saving mode is optional.
2- Letterpress is light box model, sticker to the base and light box content can be customized according to customer's request.
|
Power supply |
AC220V,10% more or less |
|
Communication port |
RS485 |
|
Power consumption |
Each display layer is about 15W |
|
Operating temperature |
-25~+65 degree |
|
Singale Character spec |
180x95mm green color number |
|
Work Humidity |
10~90% |
|
Dimension |
1700x640x120mm( Two layers display, if larger,the shell needs to be customized) |
Guangzhou Tectron Intelligent Science and Technology Co., Ltd.is Intelligent Parking Management System comprehensive solution supplier. It has been involved in the field for more than 10 years, focus on research, development and production.
Tectron and Unispark powerful combination to get better development on higher stair. Our common goal: To be the first-class parking lot intelligent management professional company, security industry No. 1.
Products categories:
Intelligent Parking Guidance System, Parking Management System and Parking Lot Location and Query System, etc.
