1)Model 1
A) Power: 3W, 5W, 7W, 9W, 11W,
B) Voltage: 110 - 130V, 220 - 240V
C) Luminosity (Lm): 350, 450, 560, 650, 1000
D) Ra: ≥ 80
E) Temperature: 2, 700 - 6, 400K
F) Base type: E27/B22
G) Φ (mm): 9
2) Model 2
A) Power: 5W, 7W, 9W, 11W, 13W, 18W
B) Voltage: 110 - 130V, 220 - 240V
C) Luminosity (Lm): 350, 450, 560, 650, 1000
D) Ra: ≥ 80
E) Temperature: 2, 700 - 6, 400K
F) Base type: E27/B22
G) Lifetime (hrs): ≥ 6, 000
H) Φ (mm): 12
Inner packing: Color box
1)LW-2U-Φ 9:
A)3W: 3.6x 3.6 x 10.3
B)5W: 3.6x 3.6 x 11.3
C)7W: 3.6x 3.6 x 12.3
D)9W: 3.6x 3.6 x 12.8
2) LW-2U-Φ 12
A) 5W: 4.1x 4.1 x 12.8
B) 7W: 4.1 x 4.1 x 13.8
C) 9W: 4.1 x 4.1 x 14.8
D)11w: 4.1 x 4.1 x 15.8
E )13w: 4.1 x 4.1 x 17.7
F )18w: 4.1 x 4.1 x 18.7
Outer packing: 100PCS/CTN
1) LW-2U--Φ 9 CARTON(cm)
A) 3W: 41.0 x 21.5 x 26.0 G. W(kg) 6.0 N. W(kg) 5.0
B) 5W: 41.0 x 21.5 x 28.0 G. W(kg) 6.5 N. W(kg) 5.5
C) 7W: 41.0 x 21.5 x 30.0 G. W(kg) 7.0 N. W(kg)6.0
D) 9W: 41.0 x 21.5 x 31.0 G. W(kg) 7.5 N. W(kg)6.5
E) 11W: 41.0 x 21.5 x 32.0
2) LW-2U- -Φ 12 CARTON(cm)
A) 5W: 46.0 x 24.0 x 27.5
B) 7W: 46.0 x 24.0 x 31.5
C) 9W: 46.0 x 24.0 x 33.5
D) 11W: 46.0 x 24.0 x 35.5
E) 13W: 46.0 x 24.0 x 40.0

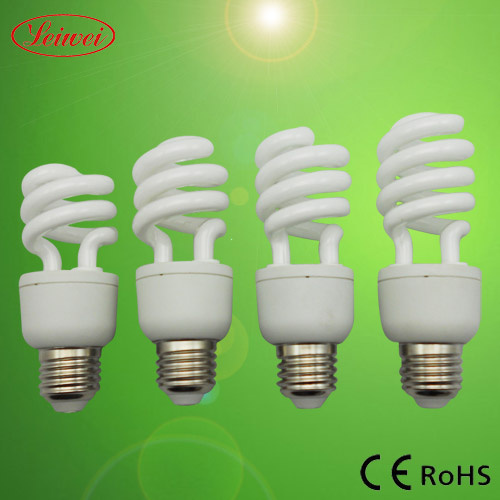

| half spiral 9mm 7W /9W / 11W / 13W / 15W / 20W CFL series |
| Rt.Watt (W) | 7 | 9 | 11 | 13 | 15 |
| Voltage(V) | 110-130V/220-240V | 110-130V/220-240V | 110-130V/220-240V | 110-130V/220-240V | 110-130V/220-240V |
| Frequency (HZ) | 50-60 | 50-60 | 50-60 | 50-60 | 50-60 |
| CCT(K) | 2700K/4200K6400K | 2700K/4200K6400K | 2700K/4200K6400K | 2700K/4200K6400K | 2700K/4200K6400K |
| Available bases | E27/E17/B22/B15 | E27/E17/B22/B15 | E27/E17/B22/B15 | E27/E17/B22/B15 | E27/E17/B22/B15 |
| Certificates | CE | CE | CE | CE | CE |
| CRI (ra) | ≥80 | ≥80 | ≥80 | ≥80 | ≥80 |
| Lumen Eff (lm/w) | 55 | 55 | 55 | 55 | 55 |
| Tube Dia ¢ (mm) | 9 | 9 | 9 | 9 | 9 |
| Luminious Flux (lm) | 234 | 327 | 421 | 608 | 935 |
| Lamp size(L/L1/A/C) | 110/61/42/42 | 120/61/42/42 | 124/61/42/42 | 131/61/42/45 | 142/71/42/45 |
| Carton size L/W/H (cm) | 46.5*28.5*13.5 | 46.5*28.5*14.5 | 46.5*28.5*15 | 46.5*28.5*16.3 | 46.5*28.5*17.5 |
| Qty/carton (pcs) | 50 | 50 | 50 | 50 | 50 |
| N.W.(KG) | 3.1 | 3.2 | 3.3 | 3.5 | 3.9 |
| G.W. (KG) | 4.3 | 4.4 | 4.6 | 4.9 | 5.3 |
Features of CFL light
More compact structure, cuter appearance
Flicker free starting operation
Ideal replacement of incandescent lamp
Ultra energy efficient and replace the traditional incandescent
Good heat dissipation with professional designed and alloy housing
Anti-glare and giving visual comfort
Isolating circuit design,make sure safety and reliability
Solid-state, fast turn on
No mercury, less CO2 emission, eco-friendly to the environment
No UV, no IR
Better thermal management, no heat damage
Easy-to-install into standard fixture
Longevity of service and minimal maintenance
B22/E27 / E14/E40/ bases available
With CE & RoHS certificates comply to EU standards
Applications:
Illumination lighting for homes, offices, restaurants, hotels, malls, buses, trains, warehouses, parking lots
Task lighting for cabinets, cupboards in your homes, restaurants and kitchens or any other places where accent lighting is required
Display lighting for the articles in your stores and shops
Backlighting for square billboards or advertisement boards
Warning:
Unsuitable for applications where atmosphere is very humid or vibration
Not suitable for dimming and electronic switches
Cutoff power before installing and cleaning
Holds plastic shell of lamp while fitting
Our company and products advantages
| 1. Our company Leiwei group founded in year 2003 which has more than 12 years lamp producing experience |
| 2. We are a factory with 300 workers and factory area is more than 36000 square meter |
| 3. We have 7 engineers with more than 10 years experience and strong R&D ability |
| 4. We have full set of automatic producing line and test machines |
| 5.we provide reasonable price and reliable quality control system |
| 6. we provide two or three years guarantee based on your requires |
| 7. We provide 24 hours prompt reply |
| 8.OEM&ODM available |
QUESTIONS AND ANSWERS
Q : Are you a factory or trading company?
A: We are a factory with more than 300 workers, we only do export business
Q : Can you offer samples?
A: Yes,Sample available with charge
Q : What is your delivery time?
A: Sample order: 3-7 working days
Mass order: 25-40 days after 30% deposit received
Q : What is your warranty?
We offer 2 or 3 years warranty differ from your requires and target market
Q : Can your factory make the lights based on customers' design?
A: Yes, we offer OEM and ODM service, we have 7 engineers with more than 10 years experience
And full set of producing line and test machines,
Q : Where is your factory ? How can I get there?
A:Our factory is located in Lin'an, Hangzhou, Zhejiang Province,about 1.5 hours by train from Shanghai
or ningbo,2 hours by plane from Guangzhou. We can arrange to pick up you from station or airport
Q: How do you process the quality control system?
A:first:We have 5 QC who all have more than 8 years experience in this field which
gaurantee they have enough specialized knowledge to carry our testing and checking
Second: we mainly use AUTO MACHINE such as AUTO-inserting components machine,
AUTO-soldering machine etc. to improve the quality stability.
Third:we have a full complete set quality control file and run a very strict QC rules which
requires our QC to process one by one file from raw material to semi-finished to finally finsihed procuducts
Q: How you offer warantee for your clients ?
A: We offer at least two year guarantee for all products. Once there was complaint from clients or markets,
we will check out and discuss then work out suitable solutions together with clients.
Hangzhou Leiwei Electric Appliance Co., Ltd. Which has a total investment of $20 million, while $2.5 million registered capital. It located in Zhejiang Lin' An Economic Development Zone in Zhejiang province. The factory area reaches to 36667 square meter and workshop area is 25000 square meter.
The company is a newly high-tech enterprise, which devotes in such field as the design, the research&development and manufacturing of Energy-saving lamp, as well as the LED lamps. At present, the monthly output is approximately 3, 000, 000 pieces.
Currently, there are 18 energy saving lamp series with more than 100 specifications, All of the products are according to the ISO9001: 2000' S standard and own CE, EMC, RoHS, GS, UL international approval. Moreover, it formed the sales network globally in the rough.
The ' Quality First, Customer upmost' Is our guiding philosophy, Based on the enterprise spirit of ' Solidarity, collaboration, deploitation, Dedication ' We will constantly strive to provide our customers both the resonable price and best sales services.
