Led light manufacturers and factory

Home LED Light Products T2 7-15W Half Spiral Energy Saving Lamp, Light

T2 7-15W Half Spiral Energy Saving Lamp, Light

T2 7-15W Half Spiral Energy Saving Lamp, Light
Price: US $ 0.81-0.98/Piece
Trade Terms: FOB,CIF,others
Min Order: 3000/Piece
Pay Type: L/C,T/T

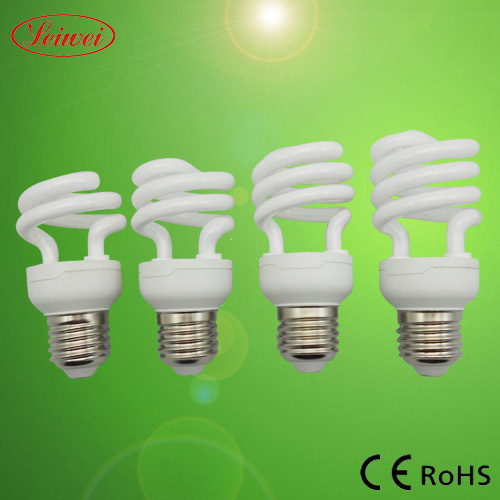

T2 7-15W Half Spiral Energy Saving Lamp
1) Model
A) Power: 9W, 11W, 13W, 15W
B) Voltage: 110 - 130V, 220 - 240V
C) Luminosity (Lm): 450, 560, 650, 840
D) Ra: ≥ 80
E) Temperature: 2, 700 - 6, 400K
F) Base type: E27/B22
G) Lifetime (hrs): ≥ 6, 000
H) L (mm): 95, 100, 105, 110
I) L1 (mm): 50
J) A (mm): 49
K) Φ (mm): 9
L) C (mm): 43
2) Model
A) Power: 15W, 20W, 23W, 26W
B) Voltage: 110 - 130V, 220 - 240V
C) Luminosity (Lm): 840, 1120, 1300, 1480
D) Ra: ≥ 80
E) Temperature: 2, 700 - 6, 400K
F) Base type: E27/B22
G) Lifetime (hrs): ≥ 6, 000
H) L (mm): 115, 135, 145, 155
I) L1 (mm): 65
J) A (mm): 60
K) Φ (mm): 12
L) C (mm): 54
3) Model
A) Power: 15W, 20W, 23W, 26W
B) Voltage: 110 - 130V, 220 - 240V
C) Luminosity (Lm): 840, 1120, 1300, 1480
D) Ra: ≥ 80
E) Temperature: 2, 700 - 6, 400K
F) Base type: E27/B22
G) Lifetime (hrs): ≥ 6, 000
H) L (mm): 120, 140, 150, 160
I) L1 (mm): 70
J) A (mm): 60
K) Φ (mm): 12
L) C (mm): 54

Inner packing: Color box
1) dimensions (cm):
A) 9W: 5.0 x 5.0 x 10.3
B) 11W: 5.0 x 5.0 x 10.8
C) 13W: 5.0 x 5.0 x 11.3
D) 15W: 5.0 x 5.0 x 11.8
2) dimensions (cm):
A) 15W: 6.1 x 6.1 x 12.3
B) 20W: 6.1 x 6.1 x 14.3
C) 23W: 6.1 x 6.1 x 15.3
D) 26W: 6.1 x 6.1 x 16.3
3) dimensions (cm):
A) 15W: 6.1 x 6.1 x 12.8
B) 20W: 6.1 x 6.1 x 14.8
C) 23W: 6.1 x 6.1 x 15.8
D) 26W: 6.1 x 6.1 x 16.8

Outer packing:
1) 100PCS/CTN
Carton dimensions (cm):
A) 9W: 56.0 x 28.5 x 26.5
B) 11W: 56.0 x 28.5 x 27.5
C) 13W: 56.0 x 28.5 x 28.5
D) 15W: 56.0 x 28.5 x 29.5
2) 50PCS/CTN
Carton dimensions (cm):
A) 15W 66.0 x 34.0 x 16.5
B) 20W 66.0 x 34.0 x 18.5
C) 23W 66.0 x 34.0 x 19.5
D) 26W 66.0 x 34.0 x 20.5
3) 50PCS/CTN
Carton dimensions (cm):
A) 15W 66.0 x 34.0 x 17.0
B) 20W 66.0 x 34.0 x 19.0
C) 23W 66.0 x 34.0 x 20.0
D) 26W 66.0 x 34.0 x 21.0

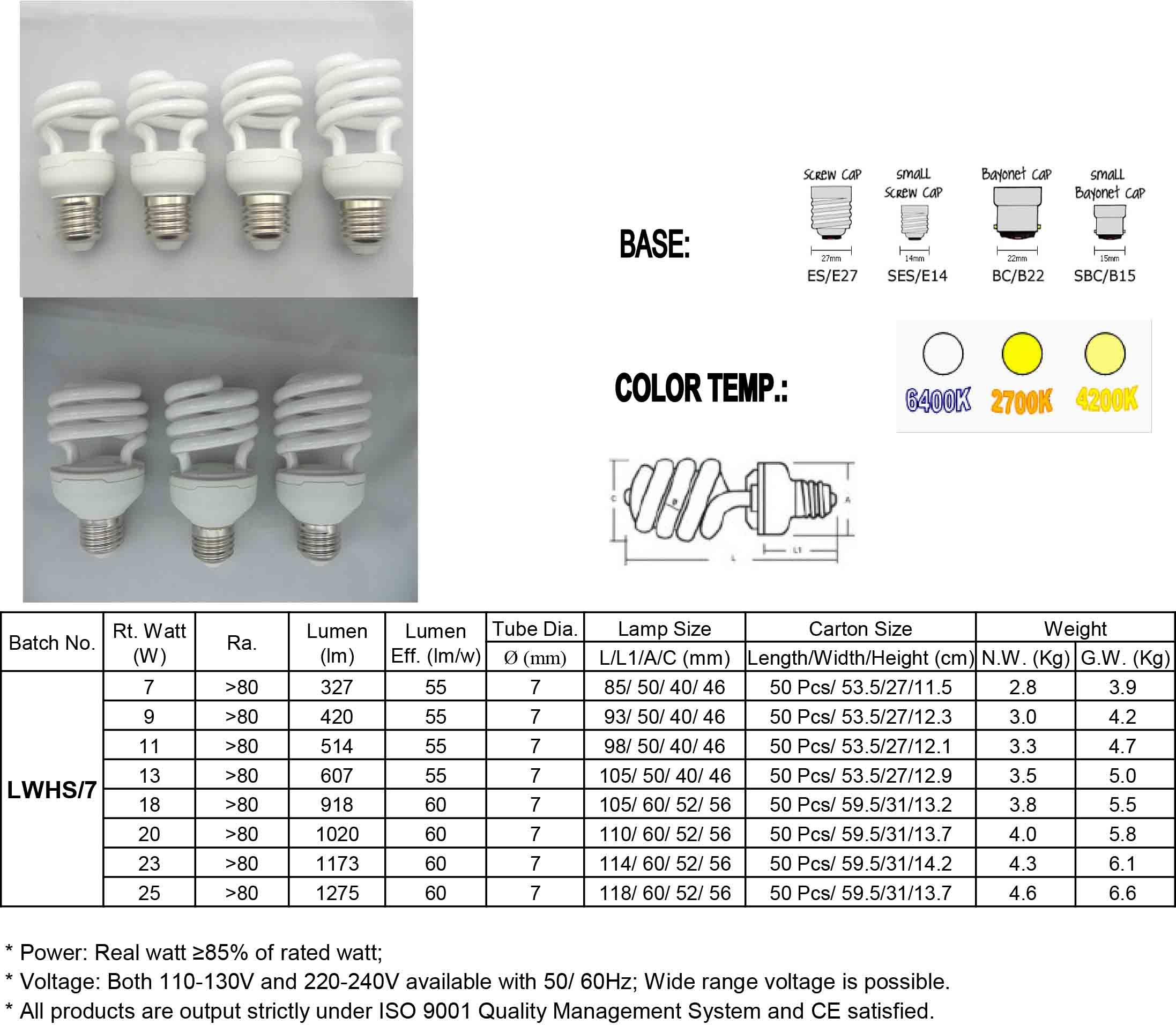

Batch  No. Rt.   Watt      (W) Ra. Lumen      (lm) Lumen  Eff.   (lm/w) Tube  Dia. Lamp  Size Carton  Size Weight
Ø   (mm) L/L1/A/C  (mm) Length/Width/Height  (cm) N. W.   (Kg) G. W.   (Kg)
LWHS/7 7 > 80 327 55 7 85/  50/  40/  46 50  Pcs/  53.5/27/11.5 2.8  3.9
9 > 80 420 55 7 93/  50/  40/  46 50  Pcs/  53.5/27/12.3 3.0  4.2
11 > 80 514 55 7 98/  50/  40/  46 50  Pcs/  53.5/27/12.1 3.3  4.7
13 > 80 607 55 7 105/  50/  40/  46 50  Pcs/  53.5/27/12.9 3.5  5.0
18 > 80 918 60 7 105/  60/  52/  56 50  Pcs/  59.5/31/13.2 3.8  5.5
20 > 80 1020 60 7 110/  60/  52/  56 50  Pcs/  59.5/31/13.7 4.0  5.8
23 > 80 1173 60 7 114/  60/  52/  56 50  Pcs/  59.5/31/14.2 4.3  6.1
25 > 80 1275 60 7 118/  60/  52/  56 50  Pcs/  59.5/31/14.5 4.6  6.6

Prod Model: LW-HS-SERIES
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape: Half Spiral
Plastic Material: PBT
Certification: ISO9001
Lamp Holder Material: Aluminum
Lamp Type: T2
Lamp Holder/Base: E27
Voltage: 220V
Tube Diameter: 7mm
Lamp Body Material: Glass
Color Temperature: 2077k 4100k 6400k
Hangzhou Leiwei Electric Appliance Co., Ltd. Which has a total investment of $20 million, while $2.5 million registered capital. It located in Zhejiang Lin' An Economic Development Zone in Zhejiang province. The factory area reaches to 36667 square meter and workshop area is 25000 square meter.

The company is a newly high-tech enterprise, which devotes in such field as the design, the research&development and manufacturing of Energy-saving lamp, as well as the LED lamps. At present, the monthly output is approximately 3, 000, 000 pieces.

Currently, there are 18 energy saving lamp series with more than 100 specifications, All of the products are according to the ISO9001: 2000' S standard and own CE, EMC, RoHS, GS, UL international approval. Moreover, it formed the sales network globally in the rough.

The ' Quality First, Customer upmost' Is our guiding philosophy, Based on the enterprise spirit of ' Solidarity, collaboration, deploitation, Dedication ' We will constantly strive to provide our customers both the resonable price and best sales services.
