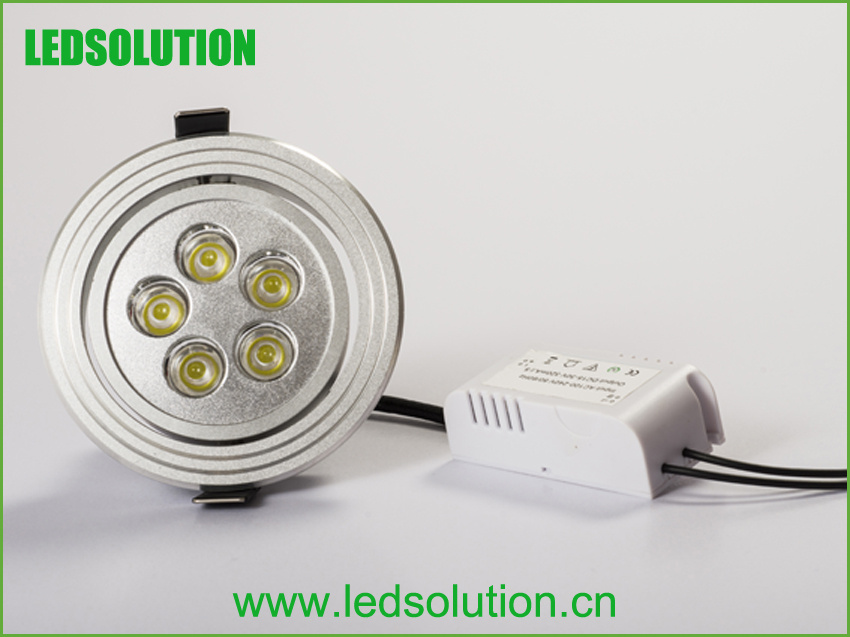

Surface mounted indoor decorative led ceiling light
Specifications
10W LED ceiling light
1)Original Samsung AC COB
2) PF>0.9, CRI>80
3) RoHS, CE, SAA, C-tick approval
4) 4 year warranty
CE ROHS SAA C-tick approved Support dimmable 80Ra 10w led ceiling light
Features and Advantages of 10W driverless LED ceiling light
1. Originally Samsung COB
2. No driver=longer life
3. Dimmable support, matches 85% dimmers
4. Pass 4200V high voltage test, 60 seconds.
5. PF>0.9, CRI>80
6. Unique design, excellent cooling effect
7.4 year warranty
8. SAA/C-tick, CE, RoHS, TUV with UL standard
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: LEDSOLUTION/OEM/ODM
Material: 6063 Aluminum alloy
Install Style: CeilingLight Source: Samsung COB
Voltage: 110V/120V/220V/230V/240V AC
Color: Silver
Emitting Color: WW/NW/CW
Certificate: SAA&CE&ROHS
Warranty: 4 years
CRI: >80
Size: 116*93mm/146*103mm
Beam Angle: 38° Or 60° Or 120
Working Temperature: -25~+45 ° C
Power: 10W
Color: 2600-6500k
New AC Technology
1. Original SAMSUNG AC COB imported.
2. New AC technology with driverless, so that longer life and the dimmer effect is better.
3. Using pure 6063 aluminum radiator made by high precision lathe.
4. Dimmable or non-dimmable is optional
5. Long life time over 50, 000hrs; 4 years warranty.
6. New design with popular.
7. The true green lighting without ultraviolet radiation and infrared in the spectrum.
Why AC Technology?
As we all know, Alternating Current(AC) is the main power supply mode. But traditional LED is Direct Current(DC), so "AC-DC conversion device" must be used to convert AC-DC.
In order to fully use the advantages of LED lamp's small size, dc drivers are always installed in the small lamp's body with LED chips. So the heat dissipation becomes a problem, biggest reduce the working efficiency of the DC LED lamps.
Also, the life span of LED can be up to 50, 000 hours while dc drivers just work 5000-10, 000hours, when the dc drivers die, the lamp fail to work.
So the main problem which was brought by DC drivers, like fault rate, short life span and high high cost need to be solved. That's why our driverless AC LED lamps was born.
AC technology, surely the next evolution in LED technology.
LED Lighting Feature:
1. Lifespan: More than 40, 000hr
2. Indoor lighting for domestic using
3. Fast Light brighting, no dely and flicker
4. Energy-saving: Saving 80% than the ordinary lamp
5. Green and health protection, no politic, more comfortable for our vision
Products Advantages:
1. Passed EMC, LVD and ROHS certification
2. Environment-friendly and no UV or IR radiation
3. Wide range of available operating voltage and low consumption
4. Easy to install and maintain, replace traditional bulbs and no subsidiary fixture
Application Area:
1. Basic commercial lighting
2. Generally matching in downlight ceiling light, householdlighting, etc
3. Shopping lighting, specialty lighting, hotel lighting, office lighting, home light
4. Commercial show windows and bars, airport, subway, cloverleaf junction and architecture field
Trade Terms:
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods before shipment
2. Delivery: 7-15days for sample order, 20-30 days for bulk order
3. Shipping by sea, by air, by Express (DHL/UPS/FEDEX/EMS/TNT)
4. Shipping freight will be quoted when you have order
5. Shipping port: Mainly Ningbo Shanghai. China Mainland. Depends on clients'request
6. If you want special discount. Please let us know what quantity you can order
7. Bigger order will be better discount
Welcome your inquiry!
|
Model NO. |
Item No |
LS-1003A-002 |
LS-3004A-002 |
|
Optical Parameters |
LED Light Source |
1PCS*COB10W |
1PCS*COB30W |
|
Luminous Flux(lm) |
1080±10% |
3000±10% |
|
CCT(K) |
6000-6500
4000-4500
2800-3200 |
6000-6500
4000-4500
2800-3200 |
|
CRI(Ra) |
>75 |
>75 |
|
Electrical Parameters |
Input Voltage(V) |
AC100-240V |
AC100-240V |
|
Total Power(W) |
10W |
30W |
|
Power Factor |
0.95 |
0.95 |
|
Transfer efficiency |
≥87 |
≥87 |
|
Lifespan (Hrs) |
30000(Light Decay <30%) |
30000(Light Decay <30%) |
|
Structural Parameters |
Material |
Aluminum +PC |
Aluminum +PC |
|
Product size |
D116*H93 |
D146*H103 |
|
Cutting Hole(mm) |
D100 |
D120 |
|
Body color |
black+ white |
black+ white |
|
Integrated Parameters |
Working Temperature |
-20~+45 |
-20~+45 |
|
Storage Temperature |
-20~+55 |
-20~+55 |
|
Working Humidity |
40-90%RH |
40-90%RH |
|
IP Grade |
44 |
44 |
|
Warranty(year) |
4 |
4 |
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
