Model number: MF-LD75W
Input voltage: AC85-260V
Frequency range: 50-60Hz
Power factor >0.95
Total harmonic distortion < 15%
Power efficiency: 92%
Working voltage: 50V
Lamp power: 75W
System power: 48W
LED luminous efficiency >85ml
Initial luminous flux: 980lm
Projection efficiency: 90%
Average illuminance (height 6 meter) >14lux
Height 8 meter >8lux
Height 10 meter >5lux
Height 12 meter >3.5lux
Effective illuminated area (height 6 meter) 6*2sq. M
Height 8 meter: 8*28sq. M
Height 10 meter: 10*35sq. M
Height 12 meter: 12*42sq. M
Color temperature; 3000k-10000k
Color factor Ra>75
Waterproof standard: IP67
Useful life >50000h
Material Aluminium alloy
Certificiation: CE&RoHS
Products feature:

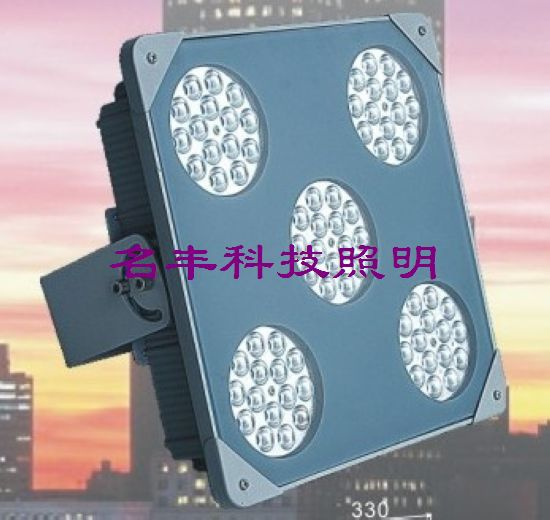

The LED high-power road lamp illuminant adopt 1 W of entrance LED chip, characteristic property, applicabilities such as have long-lived, high coloration, energy conservation, green environmental protection, hi-lite, high stability, low quantity of heat expands, the upkeep cost having reduced a road lamp greatly, is to substitute new tradition sodium lamp illuminant but above the complementation coordinating the solar energy, scene, 50, 000 hours of municipal administration road lamp sigmatism, life time. LED street light advantage photochromic has no a diaphragm homogeneously. The glowing angle is big. Constant current drives high-accuracy. The strict temperature is charged. The original circuit protection LED road lamp body adopt overall heat dissipation system
LED street lamp use for highway, expressway, trunk road, secondary trunk, branch, residential lighting and road and sidewalk squares, sports lighting.
|
Model number |
MF-LD75W |
|
Input voltage |
AC85-265V |
|
frequency range |
50-60Hz |
|
power factor |
> 0.95 |
|
total harmonic distortion |
< 15% |
|
power efficiency |
92% |
|
Working voltage |
50V |
|
Lamp power |
120W |
|
System power |
75W |
|
LED luminous efficiency |
> 85ml |
|
initial luminous flux |
6375lm |
|
Projection efficiency |
90% |
|
Average illuminance (height 6 meter) |
> 14lux |
|
Height 8 meter |
> 8lux |
|
Height 10 meter |
> 5lux |
|
Height 12 meter |
> 3.5lux |
|
Effective illuminated area (height 6 meter) |
6*2sq. m |
|
Height 8 meter |
8*28sq. m |
|
Height 10 meter |
10*35sq. m |
|
Height 12 meter |
12*42sq. m |
|
Color temperature |
3000k-10000k |
|
Color factor |
Ra> 75 |
|
Waterproof standard |
IP67 |
|
Useful life |
> 50000h |
|
Material |
Aluminium alloy |
|
certificiation |
CE& ROHS |
Zhongshan City Zhaotian Lighting Factory located in xiao lanTown, Zhongshan City, Guangdong Province. China.
Our company is a high-tech manufacturing enterprise integrating designing, producing and selling LED lighting products in one. Since our company established in 2006, has owned many series LED lights, such as high-power LED wall washer, LED spot light, LED mining lamp and LED pool light, etc; LED indoor lights include: LED bulbs, LED light cup, LED ceiling light, LED wall light, LED cross-star light etc,
Our staff focus on the development of LED lighting products and technology and the standardization of production, and is committed to the creation and cultivation of our own brand. We hope to work together with colleagues from both at home and abroad. Jointly open up a new era of LED illuminating engineering.
Welcome to visit our company.
